HG-6363 3 Axis Portable Vibration Meter Piezoelectric Accelerometer with RS232 & Bluetooth for Machinery Monitoring
HG-6363 3 Axis Portable Vibration Meter Piezoelectric Accelerometer with RS232 & Bluetooth for Machinery Monitoring
HG-6363 3 Axis Portable Vibration Meter Piezoelectric Accelerometer with RS232 & Bluetooth for Machinery Monitoring
HG-6363 3 Axis Portable Vibration Meter Piezoelectric Accelerometer with RS232 & Bluetooth for Machinery Monitoring
Specifications
Brand Name :
HUATEC
Model Number :
HG-6363
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Vibration Sensor :
3-Axis Piezoelectric accelerometer
Display :
4 digit LCD backlit
Axial Vibration :
any one axis of X ,Y,Z or 3 axes of XYZ
Frequency Range for Measuring :
10Hz. to 10kHz
Accuracy :
5% of reading + 2 digits
Analogue Output :
AC output 0~2.0V peak full scale
Description

HG-6363 3 Axis Portable Vibration Meter Piezoelectric Accelerometer with RS232 & Bluetooth for Machinery Monitoring


Application: used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.

It is specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.

It uses the high-performance acceleration meter, can realize the repetitiveness and accurate measurement.

It has the function of testing axle bearing situation.

Specification :

Vibration Sensor 3-Axis Piezoelectric accelerometer
Display 4 digit LCD backlit
Axial Vibration any one axis of X ,Y,Z or 3 axes of XYZ
Measurement Range Velocity : 0.01-400.0 mm/s 0.000-16.00 inch/s true RMS
Acceleration : 0.1-400.0 m/s² 0.3-1312 ft/s² 0.0-40g equivalent peak
Displacement : 0.001-4.000mm 0.04-160.0 mil equivalent peak-peak
Frequency Range for Measuring 10Hz. to 10kHz
Accuracy 5% of reading + 2 digits
Metric/ Imperial conversion
Analogue Output AC output 0~2.0V peak full scale(load resistance: above 10k)
With Max. value hold and low battery indication
PC interface RS232C or Bluetooth interface
( Cable and software is not included)
Power supply 2x1.5v AA size (UM-3) batteries
Power off Manual off at any time or auto power off is enabled by user
Operating conditions Temperature : 0-50 ℃
Humidity : below 95% RH
Dimensions&Weight 124x62x30mm/4.9x2.4x1.2 inch
120g (not including batteries)

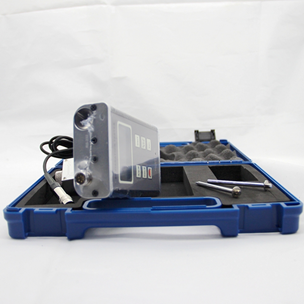

Standard delivery:
Powerful rare earth magnet 1 pc.
Accelerometer 1 pc.

Stinger probe (Cone) 1 pc.
Stinger probe (Ball) 1 pc.
Carrying case 1 pc.
Operation manual 1 pc.
Optional accessories: Headphones for use as electronic stethoscope
Cable and software for RS232C
