Steel Roughness Comparison Sample Block Lathe Milling Grinding Standard Specimen
Steel Roughness Comparison Sample Block Lathe Milling Grinding Standard Specimen
Steel Roughness Comparison Sample Block Lathe Milling Grinding Standard Specimen
Steel Roughness Comparison Sample Block Lathe Milling Grinding Standard Specimen
Specifications
Brand Name :
HUATEC
Model Number :
Roughness Comparator
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
USD180-USD210/SET
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
10 Sets/Month
Delivery Time :
3-5 working days after receipt of your payment
Packaging Details :
aluminum alloy box+Outer carton packaging
Material :
45 super carbor steel ,GCr15
Description

Steel Roughness Comparison Sample Block Lathe Milling Grinding Standard Specimen


I. Usage:The surface roughness comparison sample block is a measuring tool used
to check the surface roughness of mechanical parts after processing by the comparison method. By visually comparing it with the processed part or using a magnifying glass, the surface roughness grade can be determined.

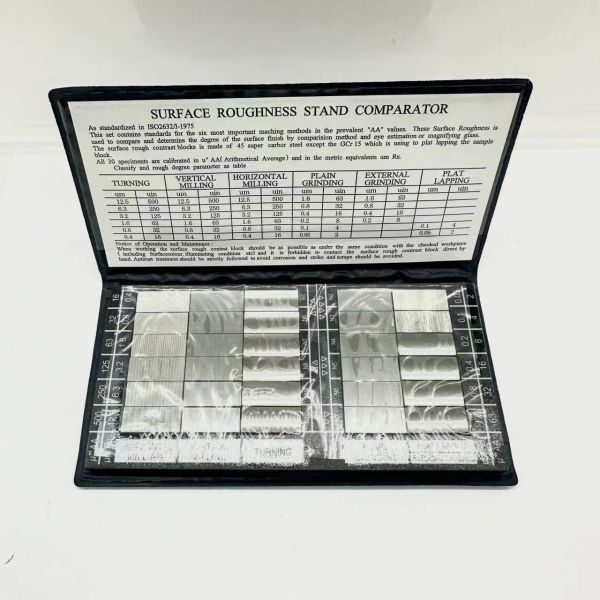

As standardized in ISO2632/I-1985 This set contains standards for the six most important maching methods in the prevalent "AA”values. These Surface Roughness is used to compare and determine the degree of the surface finished by comparision method and eye estimation or magnifying glass.The surface rough contrast blocks is made of 45 super carbor steel except the GCr15 which is using to flat lapping the sample block. All 30 speciments are calibrated in u＂AA(Arithmetical Average)and in the metric equivalents um Ra.Classify and rough degree parameter as table .

Notice of Operation and Maintenace: when working the surface rough contrat block should be as plssible as under the same condition with the checked workpiece (including Surfacecolour illuminating condition etc) and it is forbidden to contact the surface rough contrast block direct by hand. Antirust treatment should be strictly followed to avoid corrosion and strike and scrape should be avoided.
