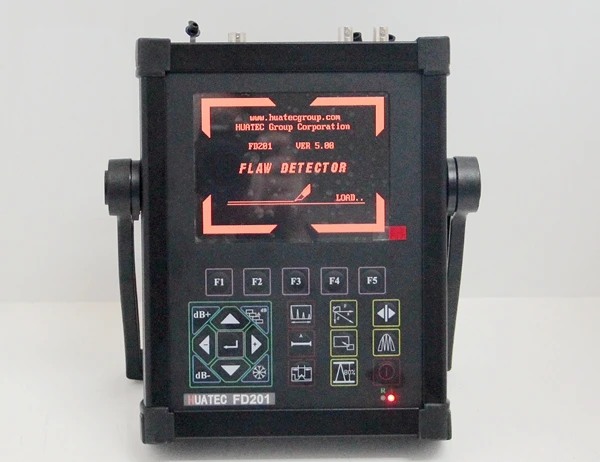

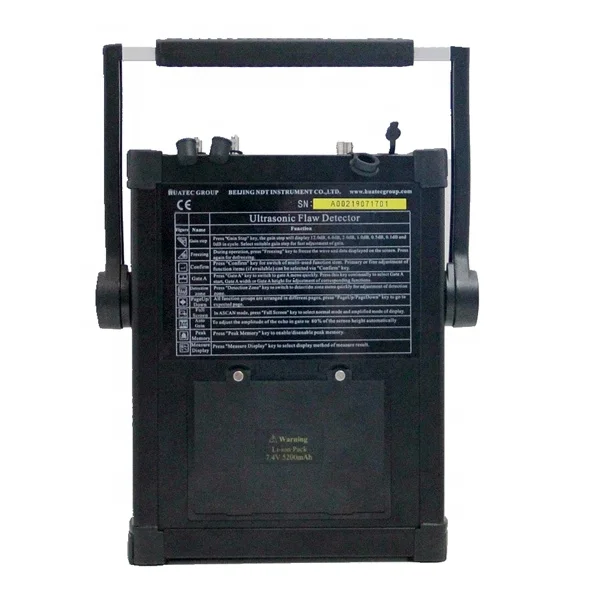

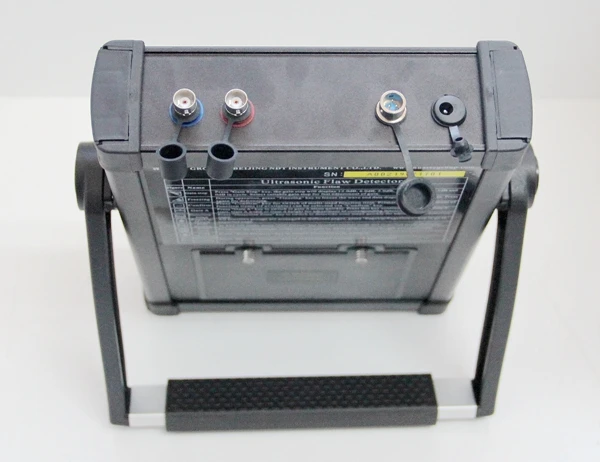

FD201 Industrial Ultrasonic Flaw Detector with Automated Calibration & Video Recording

Production Info. :

·Automated calibration Automated gain
·Automated make video of test process and play
·DAC AVG & B scan, AWS function, 6dB DAC
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright
·Powerful pc software and reports can be export to excel

Features :
· Automated calibration of transducer Zero Offset and/or Velocity ；
· Automated gain, Peak Hold and Peak Memory；
· Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, ф)；
· Automated switch three staff gauge ((Depth d, level p, distance s)；
· 100 independence setup, any criterion can be input freely, we can work in the scene without test block；
· Big memory of 300 A graph and 30000 thickness value.
· B scan；
· RS232 port/ USB, communication with pc is easy；
· The embeded software can be online updated；
· Li battery, continue working time up to 10 hours;
· Other assistant function;
· Display freeze;
· Automated echo degree;
· Angles and K-value;
· Lock and unlock function of system parameters;
· Dormancy and screen savers;
· Electronic clock calendar ;
· Two gates setting and alarm indication;
· High-speed capture and very low noise;
· DAC, AVG, B Scan ; Solid metal housing (IP65);
· Automated make video of test process and play;
· Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;

Standard Delivery:
Digital Ultrasonic Flaw Detector Main unit
2.5MHZ-ф20 straight probe
4MHZ-8x9mm, 60degree angle probe
4A/9Vpower adapter
Probe connection cable (BNC to Lemo 00)
Probe connection cable (BNC to Lemo 01)
Instruction manual
Carrying case
