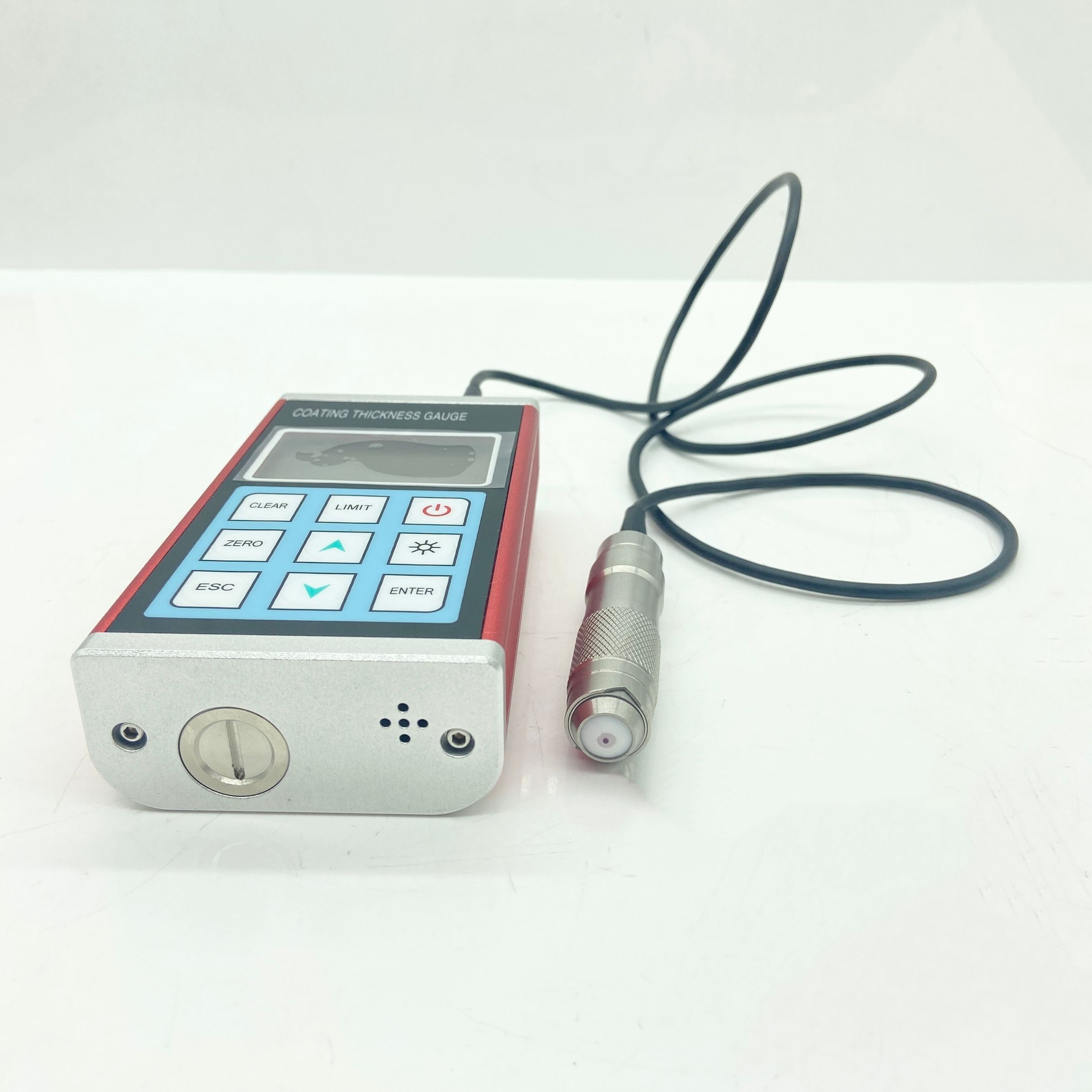

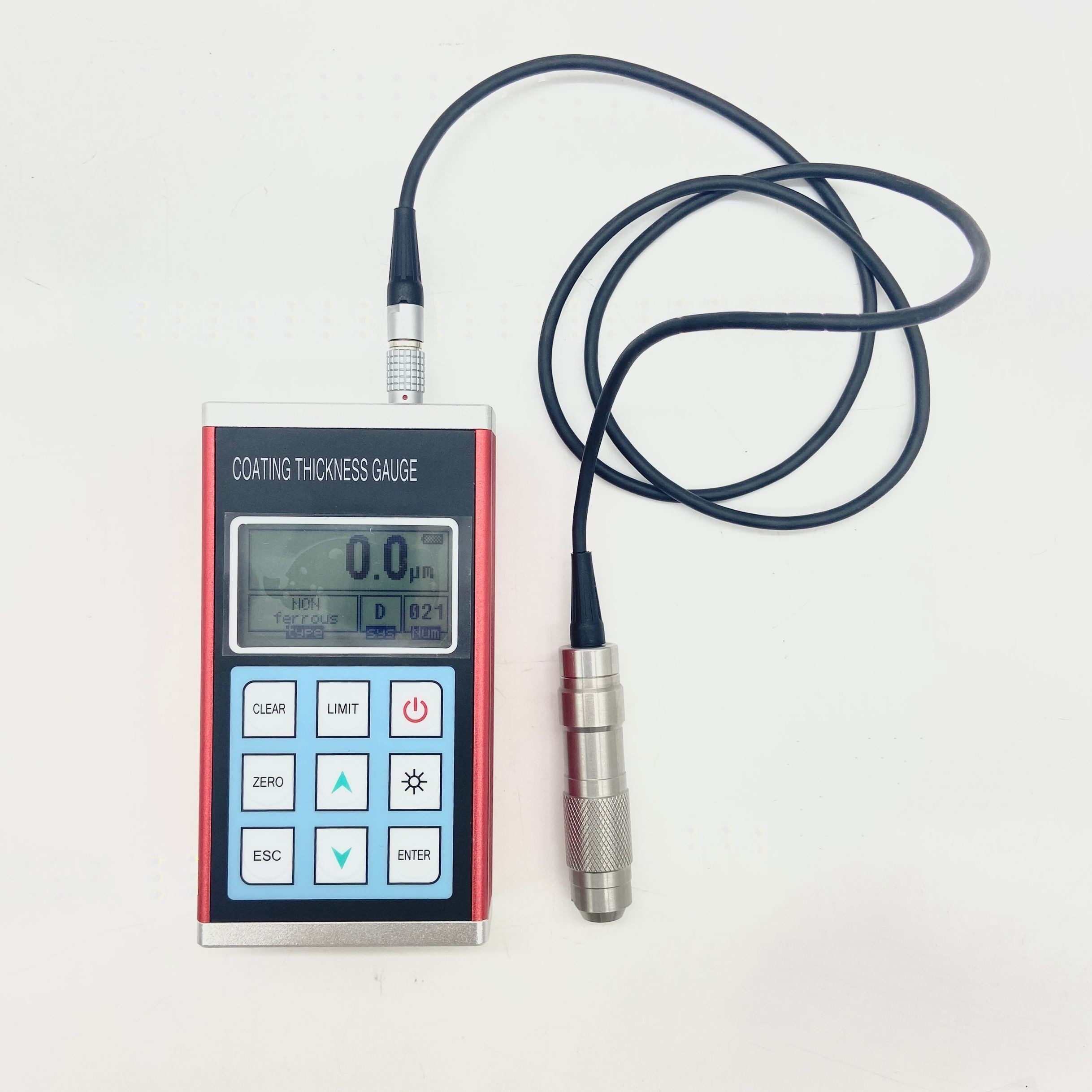

TG-6019 Portable Paint Coating Thickness Gauge with Data Storage & Backlight
TG-6019 Portable Paint Coating Thickness Gauge with Data Storage & Backlight
TG-6019 Portable Paint Coating Thickness Gauge with Data Storage & Backlight
TG-6019 Portable Paint Coating Thickness Gauge with Data Storage & Backlight
Specifications
Brand Name :
HUATEC
Model Number :
TG-6019
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD345/set - USD390/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Measuring Range :
Standard 0~1250μm (probe F10 Max 10000μm, N3 0~3000μm, F3 0~3000μm)
Resolution :
0.1μm/1μm
Accuracy :
±2%H+1μm Note: H is thickness reading
Display :
128x64 LCD with backlight
Memory :
5 files x 99 values
Working Temperature :
Operation Temp. :-10°C~50°C Storage Temp. :-30°C-70°C
Description

TG-6019 Portable Paint Coating Thickness Gauge with Data Storage & Backlight


MAIN FEATURE

*this model is capable to measure thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel), also can measure thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, plastic) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel);

*Various probes optional, probe auto matching;

*Durable ruby probe, more wear and precise;

*Full metal shell design, sturdy, portable, high reliability;

*Alarm function when overrun the settable limiting range;

*Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy;

*Large storage, easy to delete single or multiple saved values;

*PC software optional, convenient the data transmission, analysis, printing etc.


TECHNICAL DATA

Measuring Range Standard 0~1250μm (probe F10 Max 10000μm, N3 0~3000μm, F3 0~3000μm)
Resolution 0.1μm/1μm
Working Principle Magnetic & Eddy
Substrate FE / NFe base, depends on probes
Accuracy ±2%H+1μm Note: H is thickness reading
Display 128x64 LCD with backlight
Memory 5 files x 99 values
Unit Switch Metric (μm) Imperial (mil)
Working Temperature Operation Temp. :-10°C~50°C Storage Temp. :-30°C-70°C
Power AA battery 2pcs (Non-aviation transport)
Size 125x67x31mm
Weight 340g


STANDARD DELIVERY


ITEM QTY
Main Unit 1 PC
F1 or N1 Probe Optional 1 PC
Standard Calibration Piece 1 SET
Fe or NFe Substrate 1 PC
User Manual 1 PC
Instrument Case 1 PC
Warranty 2 Years
