TG-6100 Digital Coating Thickness Gauge with Temperature Compensation & Anti-Interference for Paint & Plating Inspection
TG-6100 Digital Coating Thickness Gauge with Temperature Compensation & Anti-Interference for Paint & Plating Inspection
TG-6100 Digital Coating Thickness Gauge with Temperature Compensation & Anti-Interference for Paint & Plating Inspection
TG-6100 Digital Coating Thickness Gauge with Temperature Compensation & Anti-Interference for Paint & Plating Inspection
Specifications
Brand Name :
HUATEC
Model Number :
TG-6100
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Resolution :
0.1 um（0 ~ 99.9 um），1um（100 ~ 1500 um）
Measuring Period :
3 times per second
Calibration Mode :
Zero, One-Point, Two-Point and Basic Calibration
Display :
English / Chinese selectable, FSTN LCD Display with backlight
Storage :
500 measurements, including time, probe type, etc.
Temperature :
Usage: -10 ~ 50 °C, Store: -30 ~ 60 °C
Description

TG-6100 Digital Coating Thickness Gauge with Temperature Compensation & Anti-Interference for Paint & Plating Inspection,

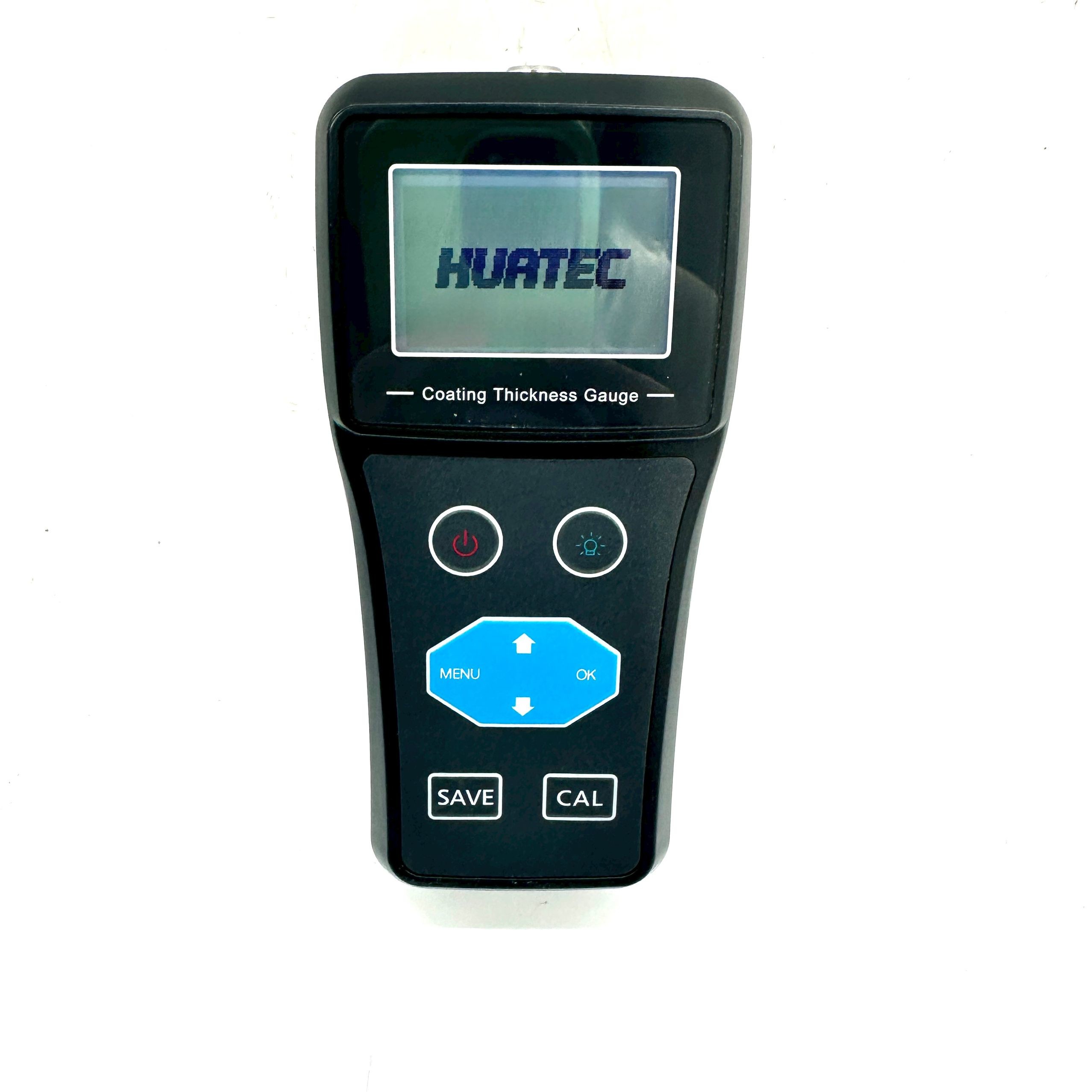

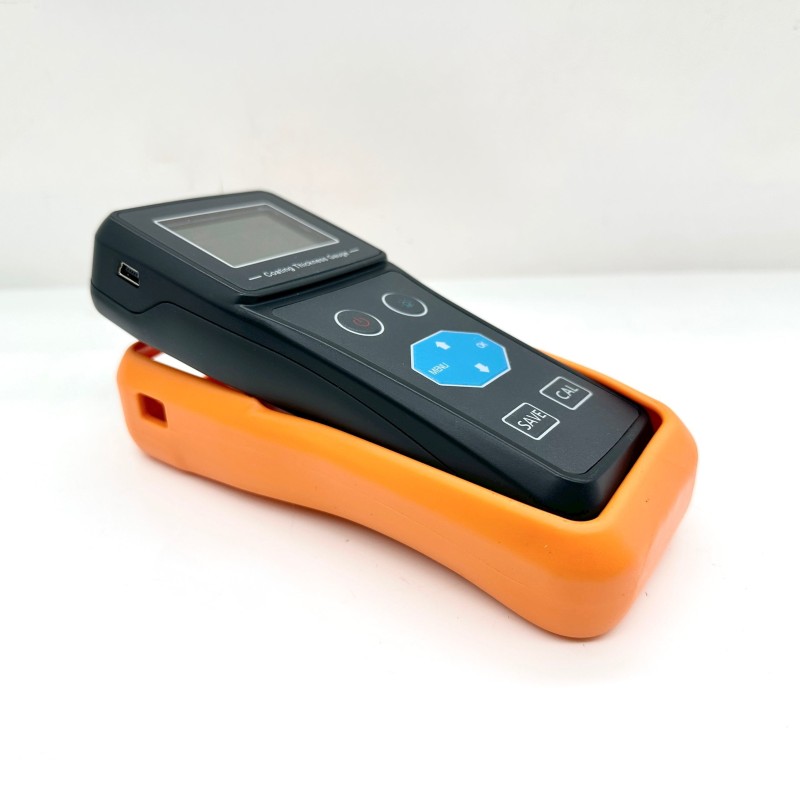

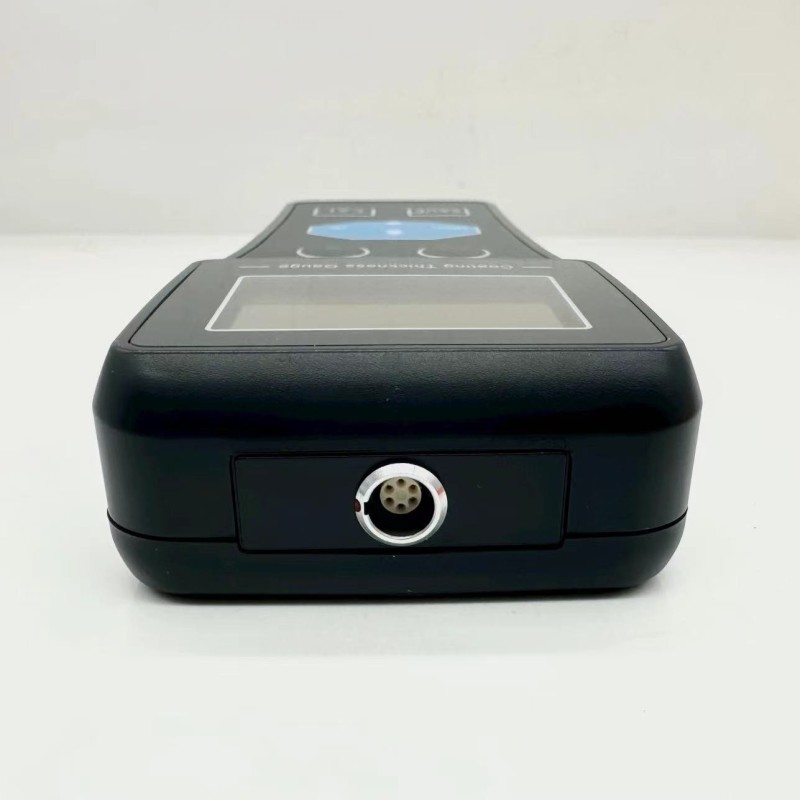

TG-6100 is a portable coating thickness gauge which is designed for non-destructive, fast and precise coating thickness measurement. The principal applications lie in the field of corrosion protection. It is ideal for manufactures and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries and for light and heavy engineering.


Technical Parameters:

Probe Type

F (Magnetic)

N (Non-magnetic)

Usage

Non-magnetic coating on magnetic metal substrate

Non-conductive coating on non-magnetic metal substrate

Measure Range

0 ~ 1500 um

0 ~ 1500 um

0 ~ 40 um, for Chromium on Copper

Min. Radius of Curvature

Bulge 1.5 mm

Bulge 3 mm

Min. Radius of Area

Φ7 mm

Φ5 mm

Critical Thickness of Plate

0.5 mm

0.3 mm

Accuracy

Zero / One-Point Calibration

±(2%H+1) um

Two-Point Calibration

±[(1~2)%H+1] um

Basic Calibration

±(1%H+1) um

Resolution

0.1 um(0 ~ 99.9 um),1um(100 ~ 1500 um)

Measuring Period

3 times per second

Calibration Mode

Zero, One-Point, Two-Point and Basic Calibration

Measuring Mode

Single point, scan mode, differential mode, alarm mode

Display

English / Chinese selectable, FSTN LCD Display with backlight

Display Content

Coating Thickness Value, Time, Stability, Battery, Measuring Mode, etc.

Storage

500 measurements, including time, probe type, etc.

Communication

Mini-USB interface, virtual serial port protocol, support online measurement

Print

Optional portable thermal printers

Power Supply

3 * AAA alkaline batteries for 100 hours usage (close backlight)

Power off

Timeout power off, and low battery power off

Temperature

Usage: -10 ~ 50 °C, Store: -30 ~ 60 °C

Size

150mm * 70mm * 30mm

Material

ABS and PC alloy

Weight

180g

Features:

 High precision sample chip and dedicated temperature compensation model used for precision measurement

 Efficient filtering algorithm used for Anti-electromagnetic interference

 Probe can be re-matched with the machine after wear

 Mini-USB interface for communication

 Support Online measurement

 Host Software upgradable Main


Functions:

 Single Point Measurement, Scan, Differential and Alarm Mode support

 Three calibration mode used for system error auto correction

 Thickness and time information can be stored completely

 Stability indicator for measuring status monitoring

 Battery indicator for battery quantity monitoring
