7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing
7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing
7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing
7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing
Specifications
Brand Name :
HUATEC
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
5sets/Month
Delivery Time :
3-5 working days after receipt of your payment
Packaging Details :
Carton packing box
step Thickness value :
2-3-5-8-12-20-25mm
Material :
CS(Stainless steel / aluminum / duplex stainless steel, etc.)
Description

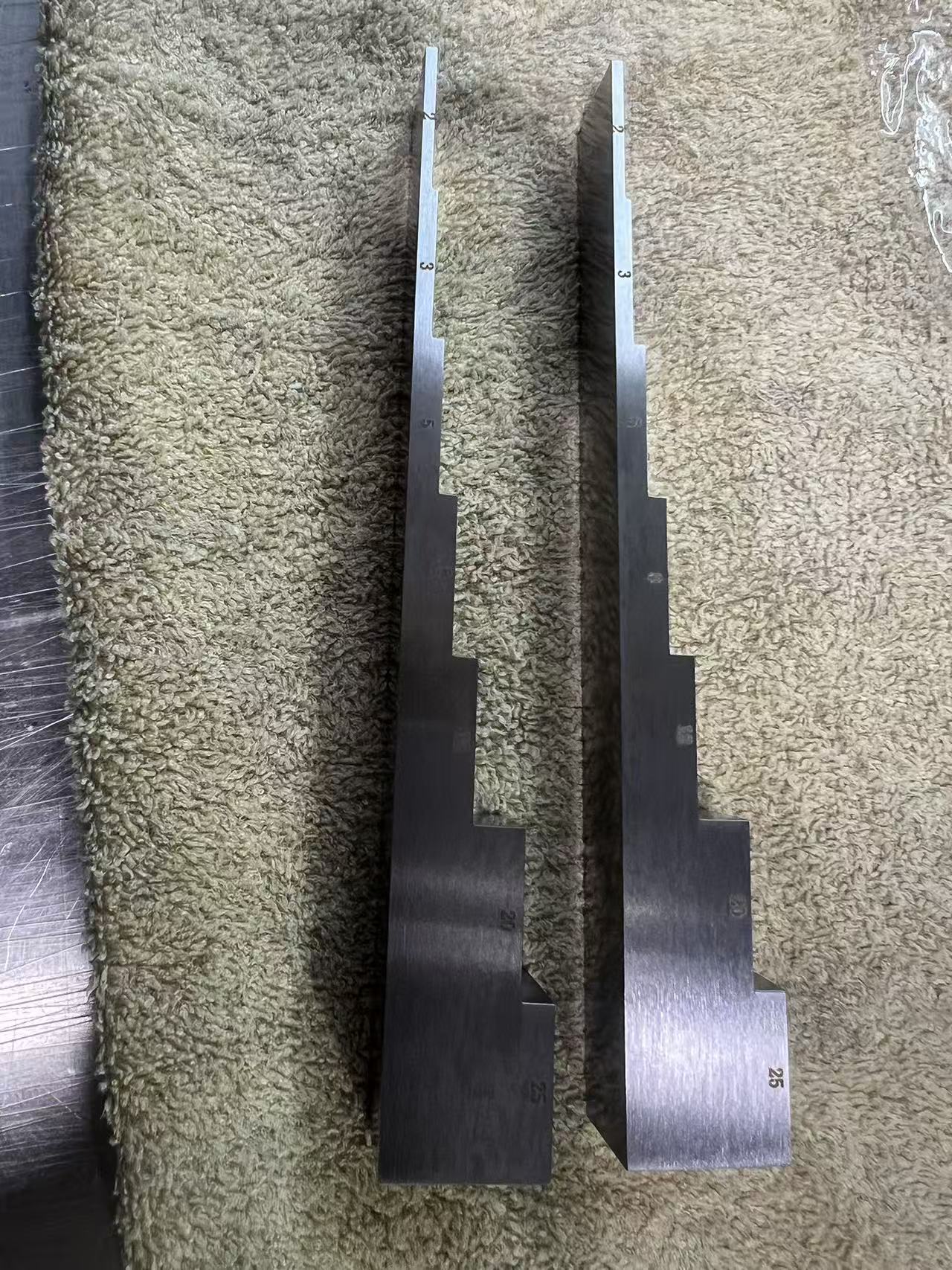

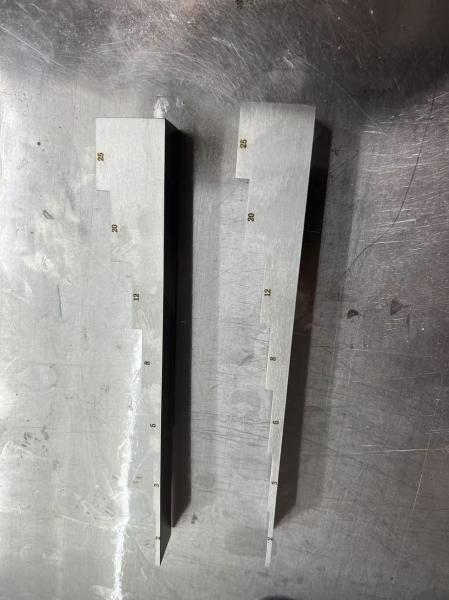

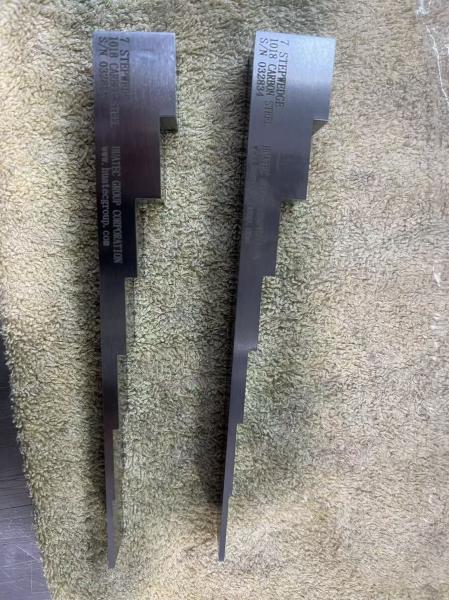

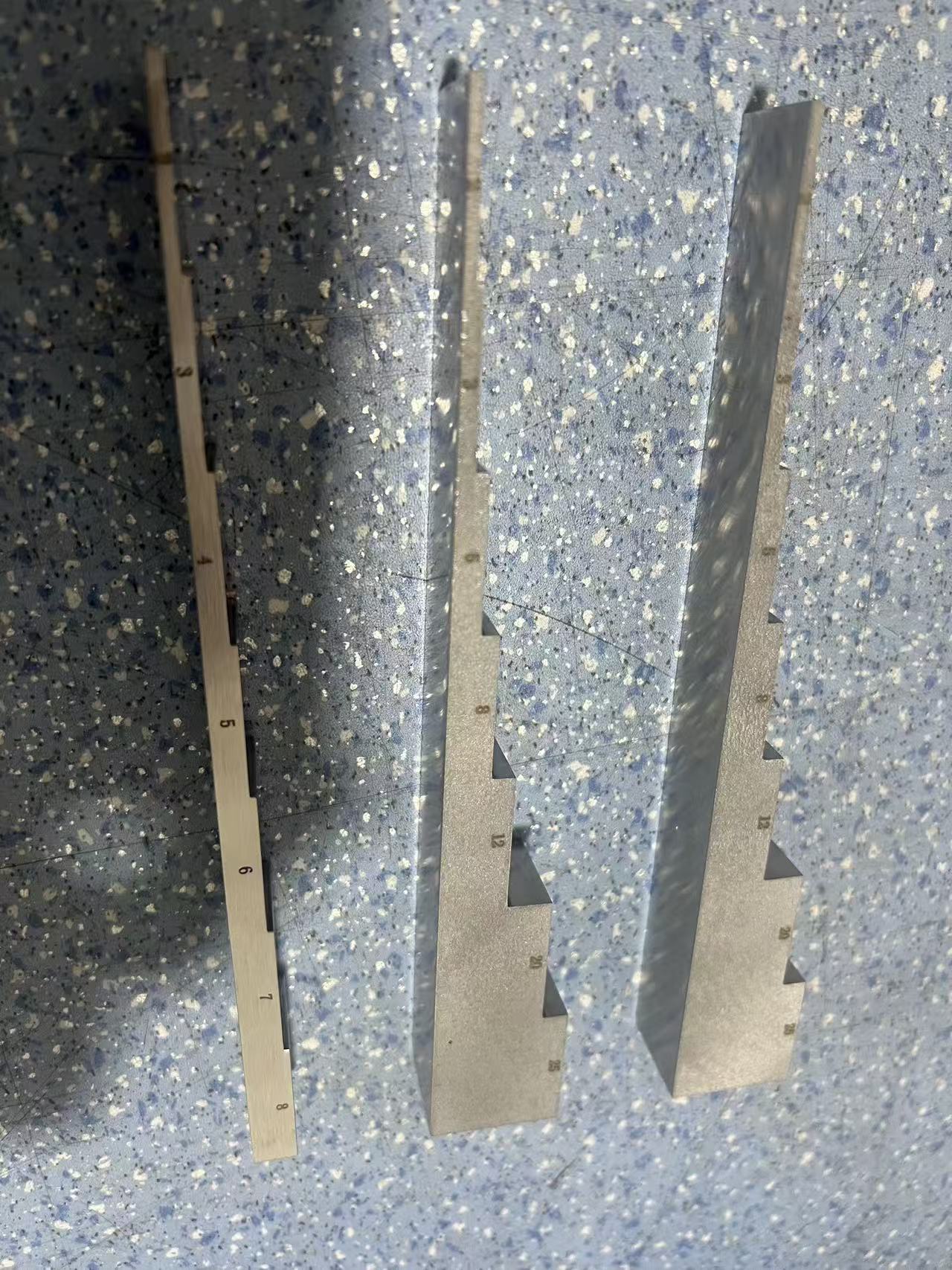

7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing


Basic Specification Parameters
Step thickness specifications: 2mm, 3mm, 5mm, 8mm, 12mm, 20mm, 25mm
Model: 7 Step Thickness Block
Material: 1018 carbon steel
Applicable sound waves: Conventional ultrasonic longitudinal waves, compatible with common ultrasonic frequencies ranging from 2MHz to 5MHz
Thickness tolerance: ±0.05mm (industrial calibration grade)
Surface treatment: Precision grinding processing, smooth surface, no rust, no oxide layer
Structural form: Integrated whole forging molding, multi-step integrated design
Acoustic characteristics: Standard sound speed of steel 5900m/s, low sound attenuation, strong detection stability


Step thickness value

 2-3-5-8-12-20-25mm

MATERIAL

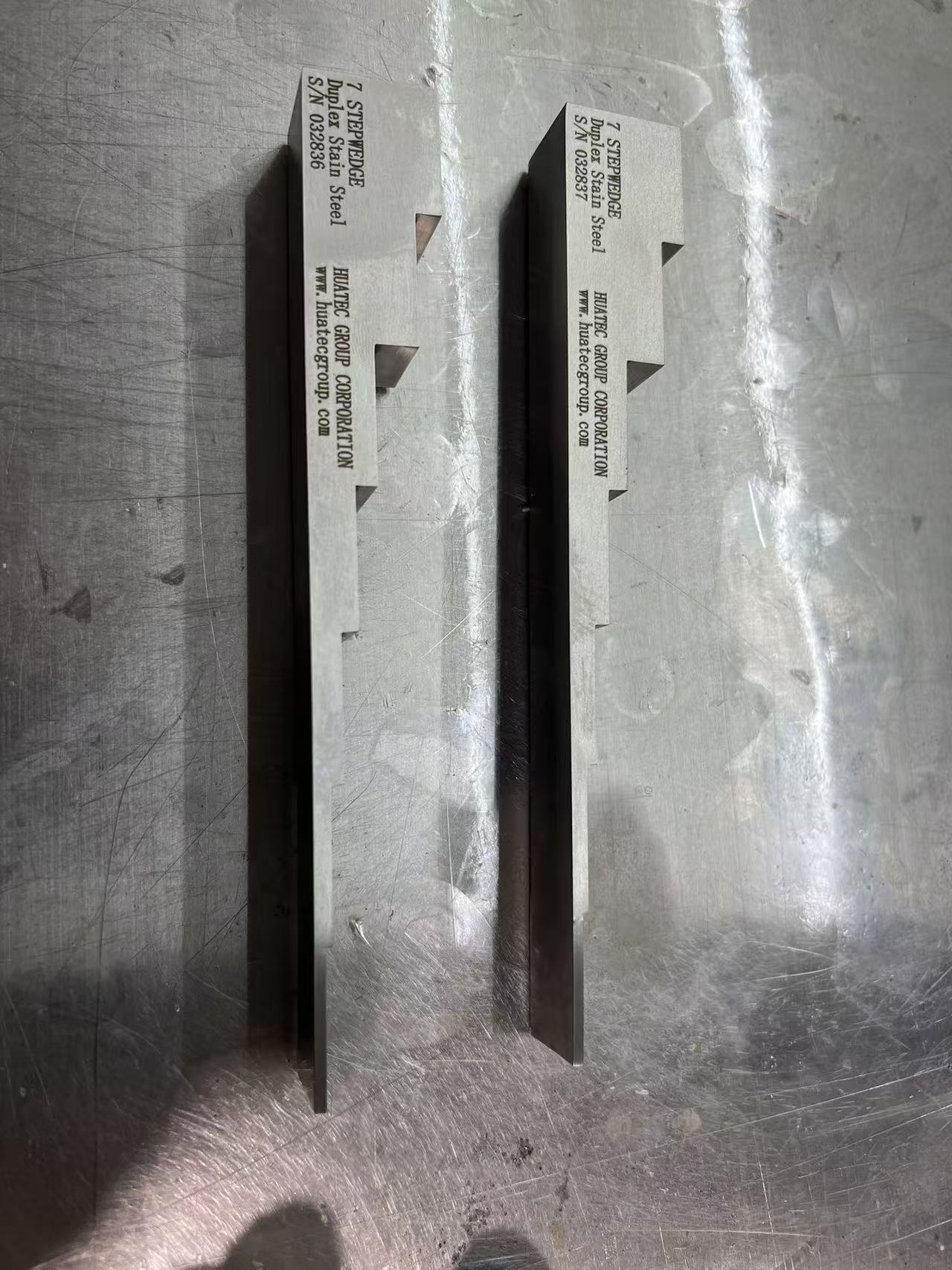

1018 Carbon steel(Stainless steel / aluminum / duplex stainless steel, etc.)

Thickness tolerance

±0.05mm

Linear accuracy

≤ ±0.1mm

Applicable temperature range

-10℃ ~ +60℃


7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing

7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing

7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing
