HRWL-GS Portable Radiation On-site Warning Light Magnetic Base for X-Ray Gamma Flaw Detection

1. Instrument Overview

·The on-site radiation warning light is a warning lamp set up in the radiation area or the designated area during radiation testing, emitting a warning to make non-employees leave this area.

·It is applicable to X-ray flaw detection, dedicated transport vehicles for gamma sources, gamma-ray flaw detection, and door alarm systems in flaw detection rooms.

·It adopts the method of built-in lithium batteries, reducing external space. The battery is a rechargeable battery, which can be reused to reduce pollution.

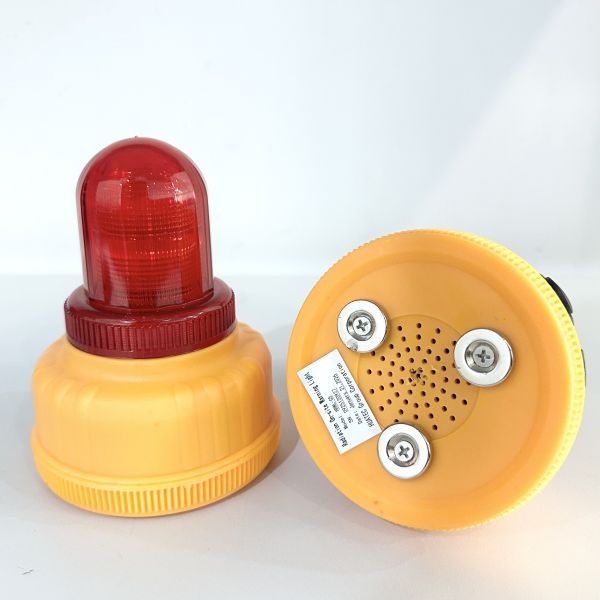

·There is a magnetic base at the bottom, with strong adhesion, making it convenient to use.

·The outer cover is made of ABS material, which is sturdy and durable, and has strong shock resistance.

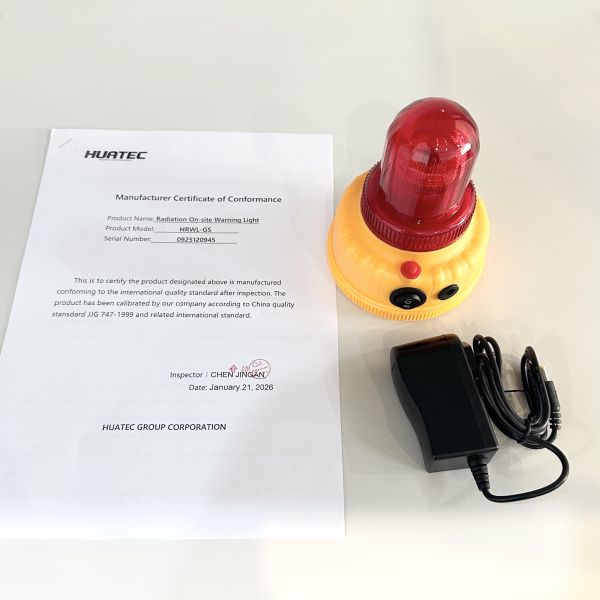

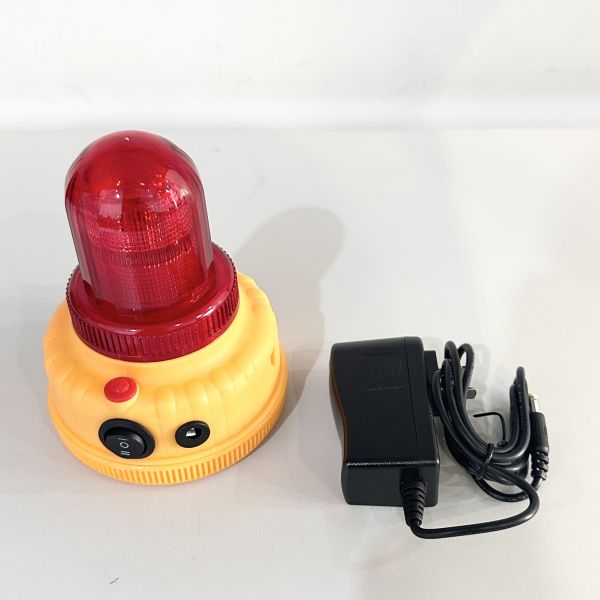

2. Packing Accessories

4.1 1 Alarm Light

4.2 1 Adapter

4.3 1 Set of Random Materials

4.4 1 Optional Tripod

Note: If the instrument malfunctions (except for cases of human damage), our company will provide one-year warranty from the date of sale.

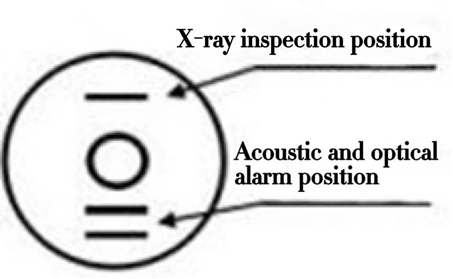

2.1 Set the status selection switch to the radiation detection position, and place the alarm device on a suitable working surface.

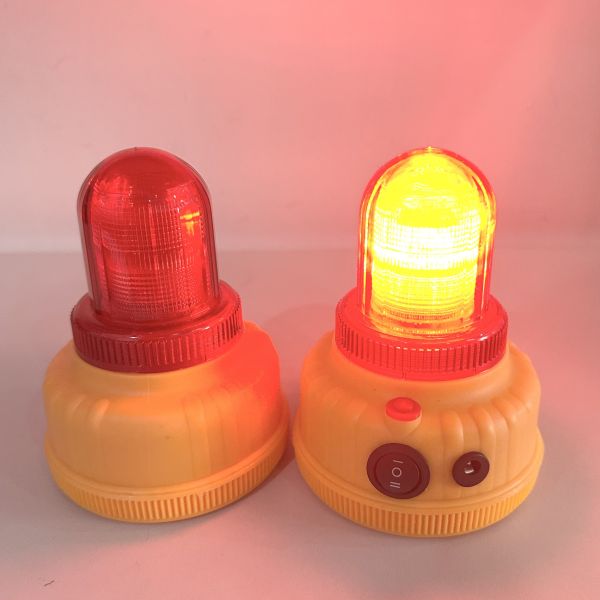

2.2 When radiation is generated, the alarm will flash and emit alarm music.

2.3 Due to the internal data refresh of the single-chip microcomputer, the alarm will continue to ring for six seconds.

2.4 In cases where on-site warning is necessary to confirm the presence of a radiation source, set the status selection switch to the sound and light alarm position, which will enable the alarm to give continuous sound and light alarms.

2.5 During use, if the flash light is insufficiently bright and the sound is not loud, please charge it in time. When charging, insert the output plug of the charging adapter into the charging socket of the alarm. The charging time should be around 8 hours.

3. Precautions

3.1 Please use the dedicated charging adapter for this device.

3.2 Be careful to avoid dropping or bumping.

4. Operating Method
