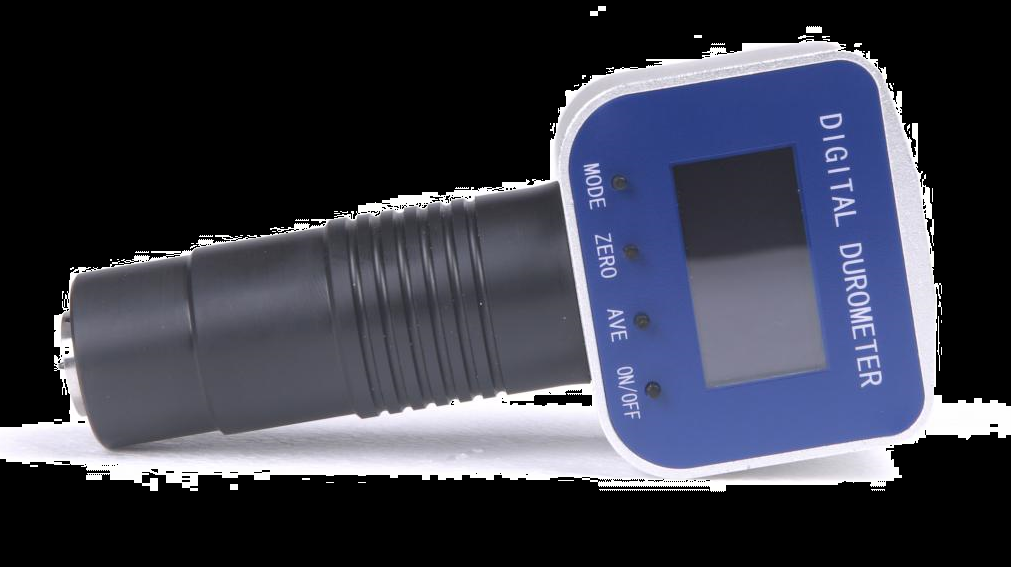

HT-6620 Portable 0-30s Time Setting High Precision Shore Durometer USB OLED Display for Rubber Plastic
HT-6620 Portable 0-30s Time Setting High Precision Shore Durometer USB OLED Display for Rubber Plastic
HT-6620 Portable 0-30s Time Setting High Precision Shore Durometer USB OLED Display for Rubber Plastic
HT-6620 Portable 0-30s Time Setting High Precision Shore Durometer USB OLED Display for Rubber Plastic
Specifications
Brand Name :
HUATEC
Model Number :
HT-6620
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Measurement error :
≤ 1 Shore
Resolution :
0.1 Shore
Display :
1.54 "OLED display, clear display, low power consumption, no backlight
Operating temperature :
-10℃ ~ 40℃
Operating humidity range :
less than 90%RH
Description

HT-6620 Portable 0-30s Time Setting High Precision Shore Durometer USB OLED Display for Rubber Plastic


I. Product overview

HT-6620 Shore hardness tester is an advanced integrated digital display Shore hardness measuring instrument, which integrates measuring device and data processing in one, using advanced technology, with the advantages of compact structure, accurate measurement, easy to carry, beautiful shape, light weight and easy to operate.

2. Technical parameters

Test method

Model

Test force(mN)

Pressing needle extension(mm)

range

Sample minimum thickness(mm)

Scope of application

Shore A

HT-6620A

8050±37.5

2.5

0~100

6

Soft rubber, synthetic rubber, natural rubber products, casting resin, printing roller, thermoplastic elastomer, soft PVC, leather and other materials

Shore D

HT-6620D

44450±222.5

2.5

0~100

6

Thermoplastic, hard resin, hard rubber, floor materials, etc

Shore AO

HT-6620AO

8050±37.5

2.5

0~100

6

Foam wrapped in leather, steering wheel material, etc

Shore AM

HT-6620AM

764±4.4

1.25

0~100

1.5

Ultrathin parts

Shore OO(American standard)

HT-6620OO

1111±9

2.5

0~100

6

Foam rubber, silicone rubber, gel materials, etc























Other non - national standard ruler can be customized

3.Main functions and configuration

*provides the MODE time setting function.

MODE time setting is an important function of this series of Shore hardness tester, in ISO 7619 and GB/T 531.1-2008, for vulcanized rubber materials, the test time is required to maintain 3S reading; Thermoplastic rubber material requires a reading at 15S. This series of hardness tester through the MODE key, you can set the time from 0 to 30S to meet the requirements of the standard;

* time-keeping function that Shaw watches do not have.

*Meet the time requirements.

*If no operation is performed, the system automatically shuts down after 5 minutes.


4, functional characteristics

 meets the latest technical requirements of GB/T 2411-2008, JJG 304-2003, GB/T 531.1-2008, and GB/T 38243-2019.

 The equipment meets the force measurement requirements of GB/T 531.1-2008.

Type A -------------------±37.5mN

Type D --------------------±222.5mN.

 USB communication function, data upload in real time

 Large capacity lithium battery, long working time

 has the average function, the average number of times can be set within 0-9

 Provides the time hold function required by GB/T 531.1-2008. The maximum time hold time is 30 seconds

 with zero clearing function, improve the accuracy of measurement

1.54 "OLED display, clear display, low power consumption, no backlight

 Digital displacement sensor is used to ensure the test accuracy, and analog displacement sensor is eliminated

 Simple operation, easy to carry, beautiful appearance, metal shell

 Simple connection with the fixed load frame, can be used with the fixed load frame for high-precision stable measurement

 Measurement error: ≤ 0.5 Shore

 Resolution: 0.1 Shore

 Operating temperature: -10℃ ~ 40℃

 Operating humidity range: less than 90%RH

 Dimensions: 150mm×60mm×50mm

 Host weight: 300g

5. Packing list

Item

Name

Quantity

Mark

1

host

1

2

USB charger

1

3

USB cable

1

4

Measuring platform

Optional

5

Random test block

Optional

6

Manual

1

7

Warranty card

1

8

Certificate of conformity

1

9

Protective equipment box

1
