Double Wire Image Quality Indicator Tungsten Platinum Wire
Double Wire Image Quality Indicator Tungsten Platinum Wire
Double Wire Image Quality Indicator Tungsten Platinum Wire
Double Wire Image Quality Indicator Tungsten Platinum Wire
Specifications
Brand Name :
HUATEC
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
USD1357-USD1535/SET
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
10 Sets/YEAR
Delivery Time :
7-10working days after receipt of your payment
Packaging Details :
carton packaging
Standards :
EN462-5 and ASTM E2002 optional
1D to 3D :
Tungsten (W) wire (purity ≥ 99.90%)
4D to 13D :
Platinum (Pt) wire (purity ≥ 99.95%)
Description

Double Wire Image Quality Indicator Tungsten Platinum Wire

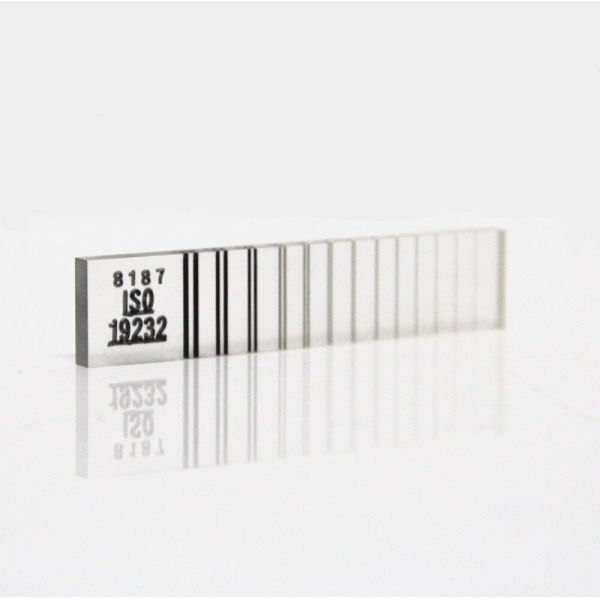

The dual-wire IQI employs 13 sets of precise tungsten-platinum wires to achieve the imaging limit of "clear → unclear", directly quantifying the total image blurriness (U = 2d) and spatial resolution (SRb = d) of the radiographic images. It is the gold standard tool for evaluating the performance of NDT imaging systems.


Standards: EN462-5 and ASTM E2002 optional

Wire

Nominal Wire Dia.

Wire Dia. left

Distance

Wire Dia. right

1D

0.800 ± 0.020

0.800

0.798

0.804

2D

0.630 ± 0.020

0.632

0.635

0.633

3D

0.500 ± 0.020

0.502

0.506

0.504

4D

0.400 ± 0.010

0.401

0.403

0.401

5D

0.320 ± 0.010

0.323

0.321

0.320

6D

0.250 ± 0.010

0.252

0.255

0.253

7D

0.200 ± 0.010

0.200

0.199

0.202

8D

0.160 ± 0.010

0.163

0.161

0.164

9D

0.130 ± 0.005

0.130

0.134

0.128

10D

0.100 ± 0.005

0.097

0.102

0.099

11D

0.080 ± 0.005

0.080

0.082

0.079

12D

0.063 ± 0.005

0.064

0.062

0.065

13D

0.050 ± 0.005

0.049

0.052

0.051


13 groups of double wires (1D to 13D): The diameter decreases from 0.80mm (1D) to 0.05mm (13D).
1D to 3D: **Tungsten (W)** wire (purity ≥ 99.90%)
4D to 13D: **Platinum (Pt)** wire (purity ≥ 99.95%)
Key design: Wire spacing = Wire diameter (d)

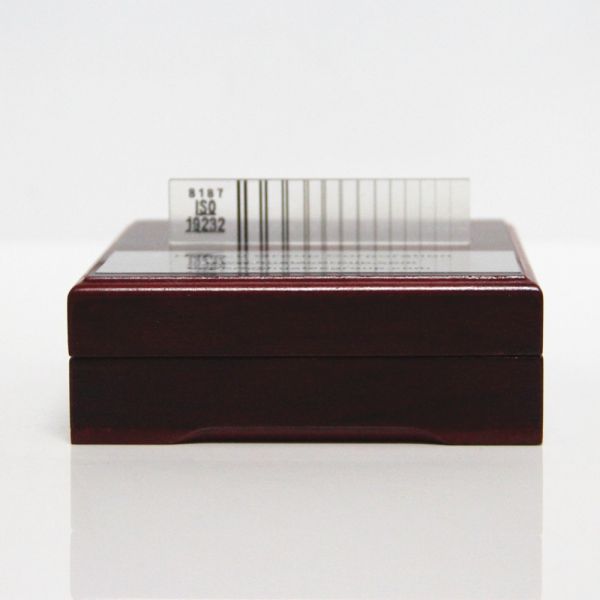

Packaging: Embedded in a low-absorption plastic substrate to ensure the parallelism and precise spacing of the wire pairs.
