13 sets Precise Tungsten-platinum Filaments Duplex Wire Type IQI Penetrameter for Radiographic Testing

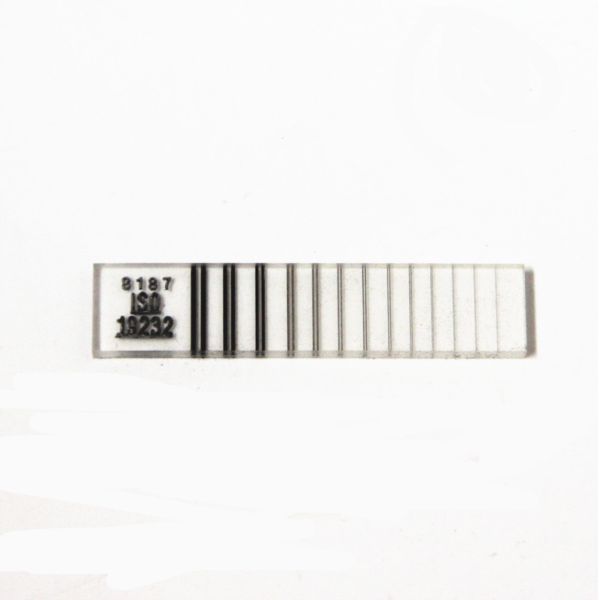

The dual-wire IQI employs 13 sets of precise tungsten-platinum wires to achieve the imaging limit of "clear → unclear", directly quantifying the total image blurriness (U = 2d) and spatial resolution (SRb = d) of the radiographic images. It is the gold standard tool for evaluating the performance of NDT imaging systems.


Standards: EN462-5 and ASTM E2002 optional

Wire

Nominal Wire Dia.

Wire Dia. left

Distance

Wire Dia. right

1D

0.800 ± 0.020

0.800

0.798

0.804

2D

0.630 ± 0.020

0.632

0.635

0.633

3D

0.500 ± 0.020

0.502

0.506

0.504

4D

0.400 ± 0.010

0.401

0.403

0.401

5D

0.320 ± 0.010

0.323

0.321

0.320

6D

0.250 ± 0.010

0.252

0.255

0.253

7D

0.200 ± 0.010

0.200

0.199

0.202

8D

0.160 ± 0.010

0.163

0.161

0.164

9D

0.130 ± 0.005

0.130

0.134

0.128

10D

0.100 ± 0.005

0.097

0.102

0.099

11D

0.080 ± 0.005

0.080

0.082

0.079

12D

0.063 ± 0.005

0.064

0.062

0.065

13D

0.050 ± 0.005

0.049

0.052

0.051


13 groups of double wires (1D to 13D): The diameter decreases from 0.80mm (1D) to 0.05mm (13D).
1D to 3D: **Tungsten (W)** wire (purity ≥ 99.90%)
4D to 13D: **Platinum (Pt)** wire (purity ≥ 99.95%)
Key design: Wire spacing = Wire diameter (d)
Packaging: Embedded in a low-absorption plastic substrate to ensure the parallelism and precise spacing of the wire pairs.
