HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging
HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging
HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging
HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging
Specifications
Brand Name :
HUATEC
Model Number :
HXH20
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Tube voltage (kVp) :
150KV
anode speed (r/min) :
2700(50Hz) 3200(60Hz) 9700(180Hz)
Inherent filtration(mmAl) （75kV） :
≥1.5
angle :
12°
nominal focal spot value :
0.6（small） 1.2（big）
maximum continuous heat dissipation(W) :
1800
maximum anode heat content(kJ) :
445(600kHU)
Description

HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging


一.SCOPE:

It is used together with medical diagnostic X-ray generator for medical X-ray diagnosis.

nominal X-ray

tube voltage(kV)

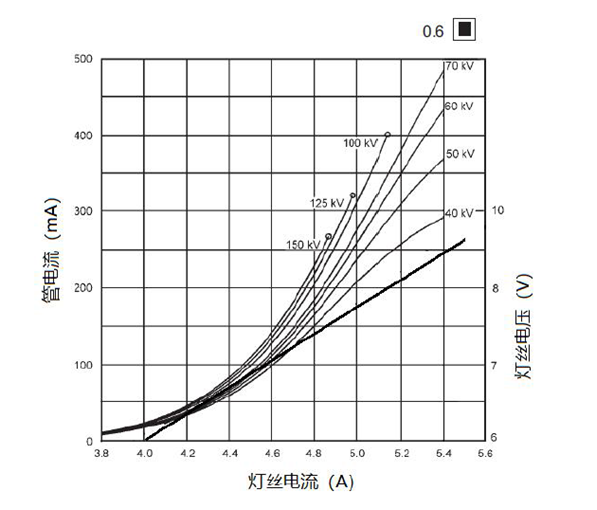

filament

characteristics(V)

target

material

angle

diameter

150

If max=5.5A ,Uf=9±2(small)

Re-W

12°

100

If max=5.5A ,Uf=13.5±2(big)

anode speed

(r/min)

Inherent

filtration(mmAl)

(75kV)

Weight

(≤kg)

nominal focal

spot value

2700(50Hz)

3200(60Hz)

9700(180Hz)

≥1.5

2

0.6(small)

1.2(big)

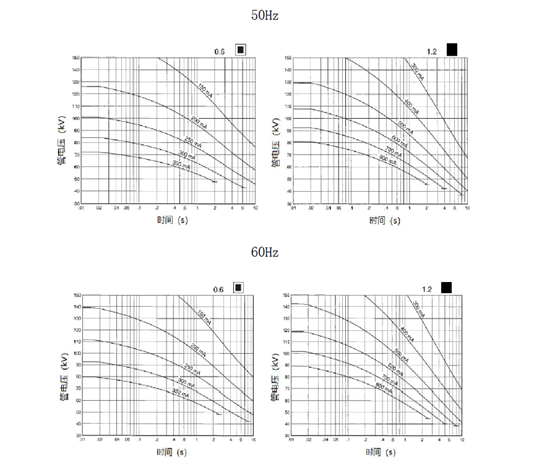

nominal anode input

power(kW) (0.1s)

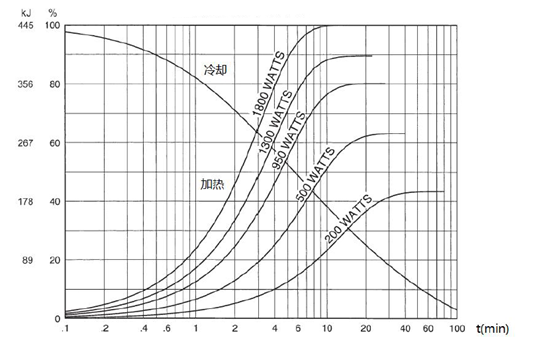

maximum anode heat

content(kJ)

maximum continuous

heat dissipation(W)

22/55(50Hz)

25/60(60Hz)

40/100(180Hz)

445(600kHU)

1800

HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging

HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging

HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging
