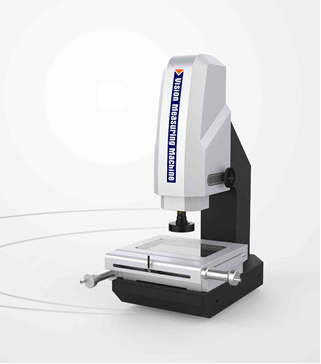

HVM5-2010 High Precision Manual Video Measuring Machine for 2D Inspection
HVM5-2010 High Precision Manual Video Measuring Machine for 2D Inspection
Specifications
Brand Name :
HUATEC
Model Number :
HVM5-2010
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
10 Sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
ABS box+Outer carton packaging
Marble workbench :
270x250mm
Glass table size :
142x242mm
Travel: X,Y :
200x100mm
Z-axis Travel :
High precision linear guide, effective travel 200mm
X/Y/Z axis resolution :
0.5 μm
Repeat accuracy :
2μm
Description

HVM5-2010 High Precision Manual Video Measuring Machine for 2D Inspection


Applied-fields

It is mainly applied in 2D measurement field, such as: PCB mobile phone fittings ,linker ,machine fitting , cables, precision fixture ,and it can measure height in video solution too. It is a necessary instrument for 2D noon-contact measurement in college ,research institute and metrology department.


Technical Specifications

Specifications

HVM5-2010

Marble workbench

270x250mm

Glass table size

142x242mm

Travel: X,Y

200x100mm

Z-axis Travel

High precision linear guide, effective travel 200mm

X/Y/Z axis resolution

0.5 μm

Measuring accuracy

E1 x,y-axis : 2.5+L/200μm

E1xy : 3+L/200μm

E1z : 4+L/200μm

Measuring software

QM2.0

Repeat accuracy

2μm

Net weight

220kg

Dimension(mm)

677x552x998


Characteristics

Product Characteristics

Adopt high-precision granite base and column to ensure the stability and precision of the machine;

Adopt high-precision toothless polished rod and fast-moving locking device to ensure that the return error of the table is within 2um;Adopt high-precision instrument optical ruler and precision worktable to ensure the accuracy of the machine is within s25+L/200um; Adopt high- definition zoom lens and high-resolution color digital camera to ensure clear picture quality without distortion;

Using the program controlled surface 4-ring 8- area LED cold illumination and Contour LED Parallel illumination as well aa built in intelligent light adjustment module the area brightness of the machine can be freely controlled

iMeasuring Vision measurement software improves quality control to a new level;

Optional contact probe and three dimensional measurement software can be used to upgrade the machine to a contact three dimensional measuring machine. It can be upgraded to install an autofocus function module to achieve accurate semi-automatic measurement


Standard Delivery

Standard Delivery

Standard Delivery

Measuring Software

CCD Camera MC1

Zoom Lens 0.7~4.5x

Calibration Block

Capture Card 7130

LED Lightsource

Power, AV, RS232 Cable

Scale Transfer U3

PC System

Optional Accessories

Optional Accessories

Optional Accessories

Digital Readout DP300

Navitar Click zoom lens

Rotary Table RT2

Digital Readout DP100

Navitar Coaxial zoom lens

Rotary Table RT3

Sinowon Moto Zoom Lens

Sony CCD camera MC3

Working Cupboard ST03
