TU3 Laser Shaft Alignment Tool for Rotating Shafts and Coupling Alignment
TU3 Laser Shaft Alignment Tool for Rotating Shafts and Coupling Alignment
TU3 Laser Shaft Alignment Tool for Rotating Shafts and Coupling Alignment
TU3 Laser Shaft Alignment Tool for Rotating Shafts and Coupling Alignment
Specifications
Brand Name :
HUATEC
Model Number :
TU3
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
10 Sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
ABS box+Outer carton packaging
Maximum distance :
10 meters between the sensors
Measurement accuracy :
±1% + 0.001mm
Inclinometer Accuracy :
0.1°
Resolution :
0.01 or 0.001 mm
Sensor type :
Position-sensitive photodiode 10 x 10 mm
Protection level :
IP65
Power supply :
Nickel-metal hydride battery (rechargeable)
Description

TU3 Laser Shaft Alignment Tool for Rotating Shafts and Coupling Alignment


The TU3 laser instrument is equipped with two laser detectors installed on the shafts. Using the TU3 laser instrument enables the quick and convenient alignment of the connecting shafts of the machine tool or transmission device.

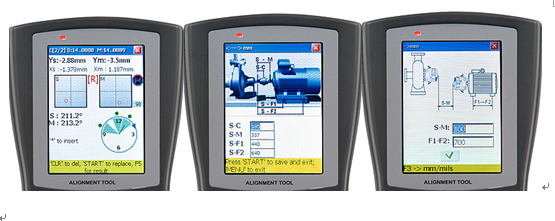

If the detector is aligned, the axis can rotate and the laser instrument will calculate the horizontal and vertical offsets as well as the angle deviation. Additionally, other parameters can be simulated. Therefore, the TU3 laser instrument simulated the spacer plates considering the possible tolerances and thermal expansion. This device also provides other practical functions, such as aligning the screw rolls, measuring the swing feet or measuring the surface flatness. The laser instrument has an internal memory of 2 GB to store the measurement values. Moreover, the device has a USB interface that can transfer data to a computer. Important information is summarized in PDF report format.


Technical Specifications:

Sensor type Position-sensitive photodiode 10 x 10 mm
Laser type It can be seen that the laser is red, with a wavelength of 635 - 670 nm, and power less than 1 MW.
Maximum distance 10 meters between the sensors
Measurement accuracy ±1% + 0.001mm
Resolution 0.01 or 0.001 mm
Inclinometer Accuracy 0.1°
Interface USB,Blue tooth
Memory 2 GB
Function Each position is 60...360° horizontally aligned. Vertical alignment
Automatic scanning mode
Tolerance can be set
Foot swing measurement
Thermal growth
Interval gasket simulation
PDF report
Shell With silicone protection
Protection level IP65
Power supply Nickel-metal hydride battery (rechargeable)
Environmental conditions -10 ...+55 °C
Host size 190x86x38mm
Weight Host:0.5kg,7.5 kg(With packaging box)


Measured through two laser detectors
- Tolerance can be set
- Integrated inclinometer sensor
- Analog spacer pad
- Measuring horizontal/vertical offsets and angle deviations
- USB and Bluetooth interfaces
- Foot placement measurement
- 2 GB internal memory
- Measuring surface flatness
- Large graphic display
- IP 65 protection level


Delivery List:
1 x TU3 Laser Instrument
2 x Detectors
2 x Detector Installation Kits
1 x Tape Measure
1 x Charger
1 x Cable
1 x Software CD-ROM
1 x USB Cable
1 x User Manual
1 x Transport Box

TU3 Laser Shaft Alignment Tool for Rotating Shafts and Coupling Alignment

TU3 Laser Shaft Alignment Tool for Rotating Shafts and Coupling Alignment
