UV-B High Precision Irradiance Meter 254nm 297nm UV Intensity Tester UV Light Meter
UV-B High Precision Irradiance Meter 254nm 297nm UV Intensity Tester UV Light Meter
UV-B High Precision Irradiance Meter 254nm 297nm UV Intensity Tester UV Light Meter
UV-B High Precision Irradiance Meter 254nm 297nm UV Intensity Tester UV Light Meter
Specifications
Brand Name :
HUATEC
Model Number :
UV-B
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
10 Sets/Month
Delivery Time :
3-5 working days after receipt of your payment
Packaging Details :
Black hard plastic box + Outer carton packaging
UV-297 probe :
λ : (275 ~ 330)nm; λP = 297nm
UV-254 probe :
λ : (230 ~ 275)nm; λP = 254nm
Measuring range :
(0.1～200000)μW/cm2
Relative indication error :
±8%
Response time :
1 second
Working environment :
Temperature: (0~40)℃；Humidity＜85％RH
Power :
6F22 type 9V laminated battery 1pc
Description

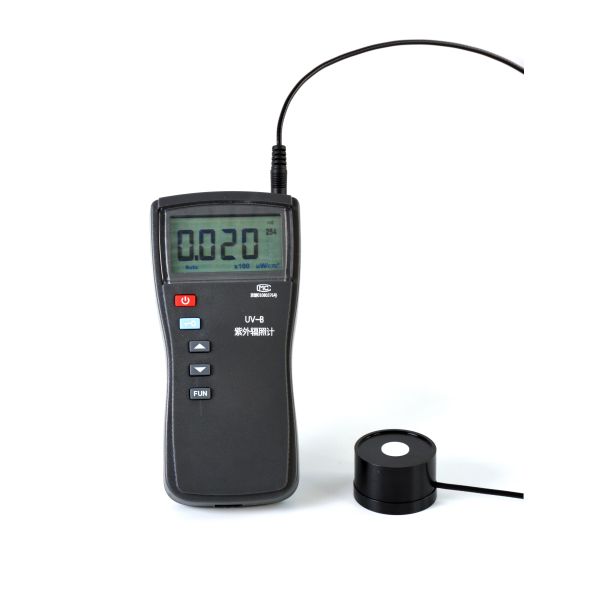

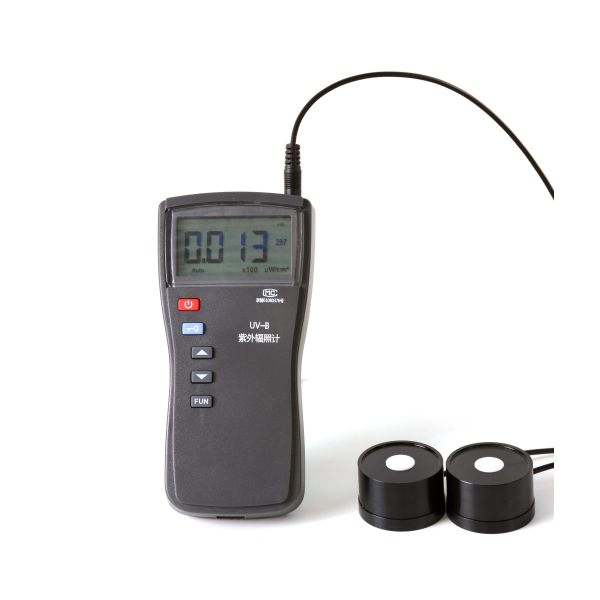

UV-B High Precision Irradiance Meter 254nm 297nm UV Intensity Tester UV Light Meter


The UV-B UV irradiation meter adopts SMT technology, chooses high-precision and low-power digital chip, the instrument shell is streamlined design, and the detector has been corrected by strict spectrum and Angle characteristics, with stable performance and strong applicability. The instrument is suitable for the measurement of ultraviolet irradiance in sterilization, lithography, ultraviolet light source, water treatment, medical treatment, breeding and other fields.

The measurement performance of UV-B conforms to the first level standard of JJG879-2015 Measurement Verification Regulation of Ultraviolet Irradiance Meter.

Main technical index

Wavelength range and wavelength of peak

(1) UV-297 probe: (See the attached figure for spectral response curve)

λ : (275 ~ 330)nm; λP = 297nm

(2) UV-254 probe: (See the attached figure for spectral response curve)

λ : (230 ~ 275)nm; λP = 254nm
Measurement range

(0.1～200000)μW/cm2
Relative indication error

±8%
Cosine characteristic (directional response) error ±10%
Linear error ±1.5%
Shift error ±1%
Short-term instability ±1% (30min after boot)
Fatigue error 3%
Zero error (full scale FS) ±1%
Response time 1 second
Operating environment Temperature (0 ~ 40)℃, humidity < 85%RH
Size and weight 160mm×78mm×43mm; 0.2 kg
Power supply Conventional use of 6F22 type 9V laminated battery

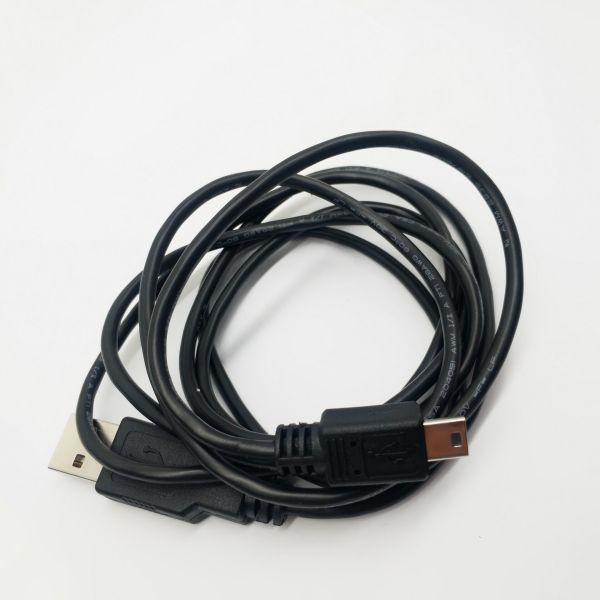

Can also use the data cable to connect the USB interface, 5V power adapter power supply,

The battery cannot be charged through the USB port.

Power consumption < 0.2VA


Features:

* Spectral and angular characteristics are strictly calibrated

* Digital LCD display with backlight

* Manual/automatic range switching

* Digital output interface (USB redundant power supply)

* Low battery reminder

* Automatic delay shutdown

* There are numbers to keep

* Touch the key operation, buzzer prompt
