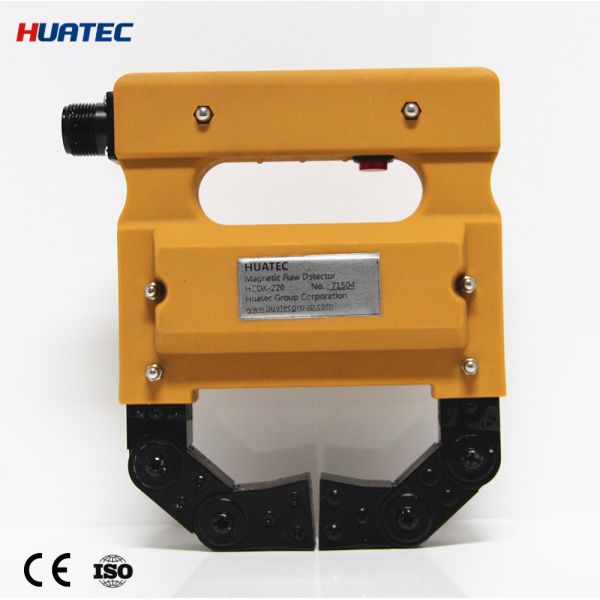

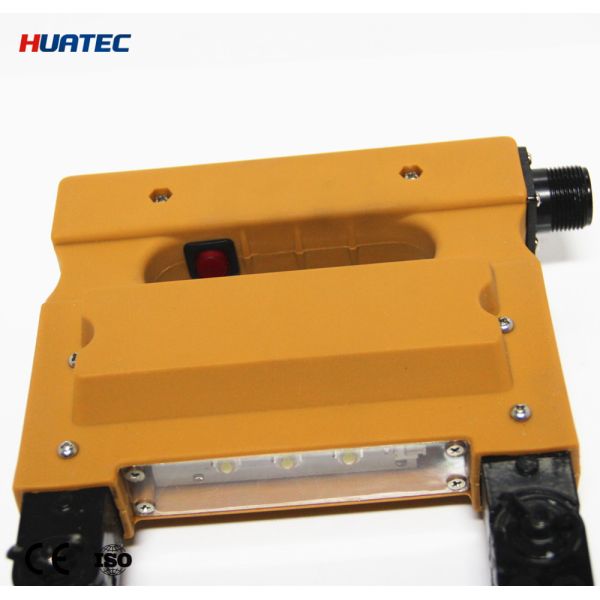

HCDX-220AC/DC Portable Handheld Magnetic Particle Flaw Detector AC DC Electromagnetic Yoke Weld Crack Detector
HCDX-220AC/DC Portable Handheld Magnetic Particle Flaw Detector AC DC Electromagnetic Yoke Weld Crack Detector
HCDX-220AC/DC Portable Handheld Magnetic Particle Flaw Detector AC DC Electromagnetic Yoke Weld Crack Detector
HCDX-220AC/DC Portable Handheld Magnetic Particle Flaw Detector AC DC Electromagnetic Yoke Weld Crack Detector
Specifications
Brand Name :
HUATEC
Model Number :
HCDX-220AC/DC
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD483/set - USD546/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Power source :
220V 50Hz
Testing time :
100sec on 100sec off
Working current :
AC1.4A DC1.7A
Pole distance :
0~200mm
Power :
220V50Hz 12V
Battery working time :
6hours up
Description

HCDX-220AC/DC Portable Handheld Magnetic Particle Flaw Detector AC DC Electromagnetic Yoke Weld Crack Detector


Product overview

Portable handheld equipment for magnetic particle inspection

Magnetic particle flaw detector has the characteristics of compact structure, reasonable layout, compact size, light weight, easy to carry and so on. It is suitable for magnetic particle inspection of surface and near surface defects of all kinds of iron and steel structural parts, boilers, pressure vessels, pressure pipelines and various types of welded ferromagnetic materials in electric power, metallurgy, petrochemical, machinery and other industries. The flaw detector can be alternatively equipped with AC magnetized power supply and DC magnetized power supply, efficient and light. It is especially suitable for welding seam inspection of ship hull, welding seam inspection of steel structure in high altitude and internal operation of pressure vessel.

The instrument meets the requirements of JB/T7411-2012 "Technical Conditions of Electromagnetic Yoke Flaw Detector" standard.

Standard Practice for Magnetic Particle Testing——ASTM E1444-05

Technical Parameters

Model Item

HCDX-220AC/DC

Power

220V50Hz 12V

Power source

220V 50Hz

Rechargeable Battery

MF12—7.2AH

Working current

AC1.4A

DC1.7A

Charging time

8~15h

Battery working time

6hours up

Testing time

100sec on 100sec off

Pole distance

0~200mm

Lifting capacity

A C

>5.5kg

D C

>26kg

Yoke weight

Probe

3.1kg

Battery pack

2.9kg

Size (㎜)

Probe

208×52×146

Battery pack

160×70×100

Charger

75×50×40

Product features

1, Compact size, handy and light weight, robust construction is safe for operator

2. One-piece forming, comfortable hand feel.

3. single-phase AC power supply (straight plug mode).DC magnetization power supply (dc battery pack)

4. Strong and rugged construction for continuous inspection

Standard delivery

HCDX-220DC

Electromagnet yoke

Power cord

Battery pack

Battery charger

Battery DC connection cable

Battery bag

Carrying case

Optional accessories

White light lamp and UV lamp
