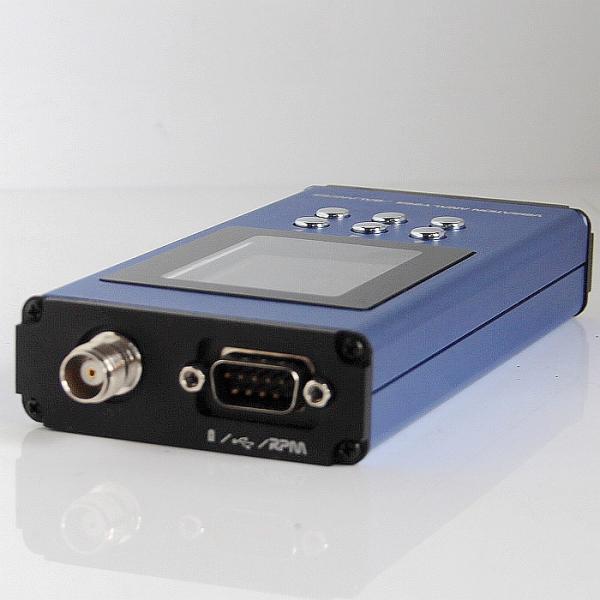

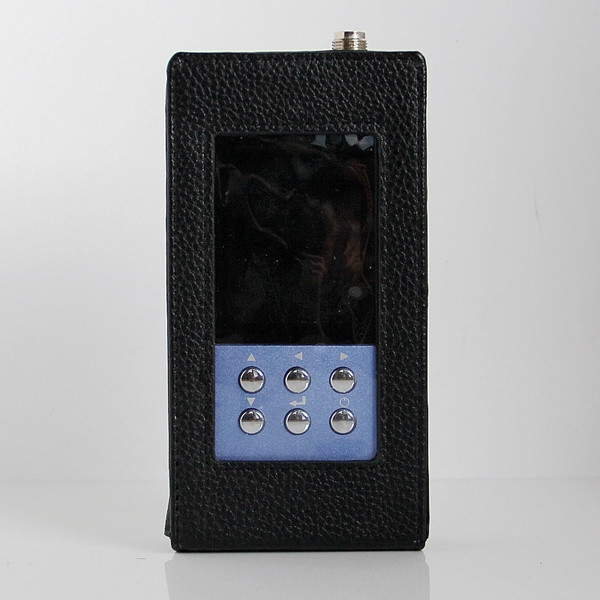

HGS-911HD Portable Vibration Tester Data Collector for Field Fault Diagnosis and Equipment Maintenance

HGS911HD is a small sized economical vibration Spectrum analyzer & data collector. It can be used for overall vibration measurement, Spectrum analysis. Measurement of high frequency acceleration envelope makes it very effective for bearing fault detection. The data can be sent to computer for database and trending analysis.

It is also a low-cost, easy-to-use balancing meter with the measurement of Rotation speed RPM, Amplitude & Phase measurement.

Specification:

• Maximum measurement range / Resolution / frequency range (may change):

# Note: Demodulated from 15kHz-40kHz

Features:

• Easy to use FFT spectrum analyzer, 400 lines
• Measurement of high frequency acceleration envelope makes it a very effective bearing fault detector
• Download from computer database point / location ID & upload overall value to database for trending
• Standard condition monitoring software MCMe3
• Parameter selection of Acceleration, velocity, displacement and acceleration envelope for FFT.
• USB 2.0 interfaces to computer
• Date/Time & Battery Status Display
• True RMS measurement
• RPM, Amplitude, Phase measurement for balancing
• Accuracy of vibration measurement:
• *Noise Level (without vibration input): ACC<0.25 m/s2, VEL<0.5mm/s, Disp<1m
  *Frequency response accuracy: 5% + 2 digits
  *Non-linearity: 5% + 2 digits
• Rechargeable Li-ion battery, Automatic power off, >20 hours operation time
• Operation temperature range: 0 - 50°C
• Pickup: Accelerometer with extension stinger and magnetic mount, Optional tacho-sensor
• Optional 1 or 2 accelerometers. For 2 accelerometers, a mechanical switch provided.
• Rotation speed measurement range: 10-60000 RPM
• Storage: 200 sets of ID, acceleration, velocity, displacement, envelope & spectrum
• Size: 150 x 70 x 25 (mm)
• Weight: 320 gram (including battery
