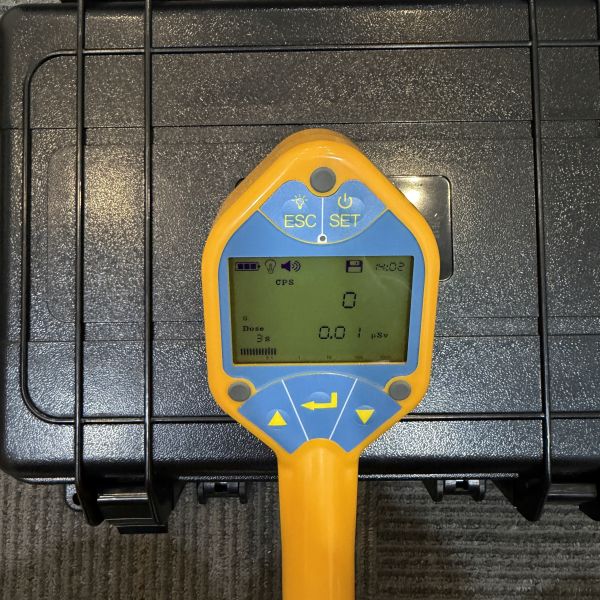

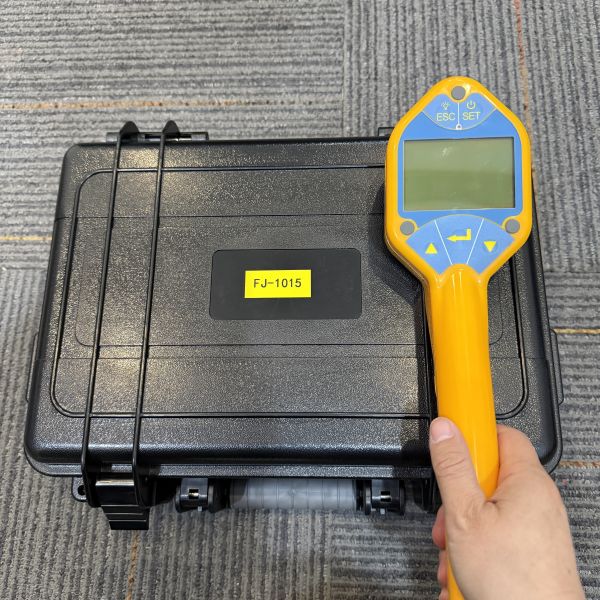

FJ-1015 Multi Purpose Radioactive Survey Meter for Alpha/Beta/X/Gamma/Neutron Detection
FJ-1015 Multi Purpose Radioactive Survey Meter for Alpha/Beta/X/Gamma/Neutron Detection
FJ-1015 Multi Purpose Radioactive Survey Meter for Alpha/Beta/X/Gamma/Neutron Detection
FJ-1015 Multi Purpose Radioactive Survey Meter for Alpha/Beta/X/Gamma/Neutron Detection
Specifications
Brand Name :
HUATEC
Model Number :
FJ-1015
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
5sets/Month
Delivery Time :
10-15 working days after receipt of your payment
Packaging Details :
Carton packing box
Dose rate range :
1nSv/h~100mSv/h
Measurement range of counting rate :
0-106 CPS
Cumulative dose range :
0-999999mSv
Alpha-ray energy range :
2.6 MeV and above
Beta-ray energy range :
100 keV and above
X and gamma energy range :
10 keV~3 MeV
Description

FJ-1015 Multi Purpose Radioactive Survey Meter for Alpha/Beta/X/Gamma/Neutron Detection


FJ-1015 multi-function radiation patrol instrument can detect five kinds of radiation, such as alpha, beta, X, gamma and neutron. It can measure environmental radiation level and surface contamination. It can also select carbon fiber extension rod and ultra-large dose radiation probe. It is the best choice for rapid response and nuclear emergency.


Typical configuration technical parameters:

Main Detector (1015 Detector) Saint-Gobain Cake GM Detector

Detector area

 15.69cm 2
Dose rate range 1nSv/h~100mSv/h
Measurement range of counting rate

0-106 CPS
Cumulative dose range

0-999999mSv
Sensitivity 3500 CPM/mR/h (for Cs-137)
Alpha-ray energy range 2.6 MeV and above
Beta-ray energy range 100 keV and above
X and gamma energy range 10 keV~3 MeV
Data storage space 4G
Shell Material

Yellow ABS
Power-on working hours > 72 hours
Relative basic error +10%
Display units

mu Sv/h, mSv/h, mR/h, mu Gy/h, mGy/h, cps, cpm, mSv
Threshold Setting Regular 3-fold Continuous Adjustment from Background
Alarm items

over-threshold alarm, detector fault alarm, low-power alarm, over-range alarm
Alarm mode

Acousto-optic alarm and vibration alarm can be combined arbitrarily
Self-protection

Over-threshold Self-protection
Display

color display screen, all data display on the same screen, with backlight function
Expansibility

With external fast plug, the probe can be expanded quickly
Emergency

Start up for 1 second without preheating; alarm within 5 seconds of exceeding threshold
Packaging Protection Level

IP65
Temperature range

- 20 ~60 ~

Humidity range: <98% (40 C)
Weight

host about 340g


Recommended applications:

environmental monitoring (nuclear safety), radiation hygiene monitoring (disease control, nuclear medicine), homeland safety monitoring (entry and exit, customs), public safety monitoring (public security), nuclear power plant, laboratory and nuclear technology applications, etc., but also applicable to radioactive detection of waste metals in renewable resources industry and families. Inspection of decoration building materials.

Hardware configuration

1.Imported Saint-Gobain Cake Detector

2.High Strength ABS Shell

3.Large-screen LCD

4.4G Large Capacity SD Card (Storing 100,000 Groups of Data)

5.Patented High Voltage Circuit Module

6.Patented Energy-saving Circuit Module

7.485 Fast Interpolation Interface

8.Connect Spring Data Line with Expanded Probe

9.USB interface

10.On-line USB Data Line with PC

11.Data Analysis CD-ROM for PC

12.5# Battery 2 Section
