Specifications
Brand Name :
HUATEC
Model Number :
TG3300
Certification :
Standard
Place of Origin :
China
Name :
Ultrasonic Thickness Gauge
Use :
for NDT-UTG Tester for Pressure Vessels testing
Application :
Industry NDT pipe thickness testing
Keywords :
Ultrasonic Thickness Gauge
Description

Ultrasonic Thickness Gauge TG3300 for NDT-UTG Tester for Pressure Vessels

The model TG3300 is a digital ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. It is suitable for a variety of metallic and non-metallic materials.

Product Specifications

1) Display:4.5 digits LCD with EL backlight.

2) Measuring Range:(0.75～300)mm (in Steel).

3) Sound Velocity Range: (1000~9999) m/s.

4) Resolution:TG3000:0.1mm; TG3100:0.1mm/0.01mm

5) Accuracy: ±(0.5%Thickness+0.04)mm, depends on materials and conditions

6) Units: Metric/Imperial unit selectable.

7) Four measurements readings per second for single point measurement, and ten per second for Scan Mode.

8) Memory for up to 20 files (up to 99 values for each file) of stored values.

9) Power Source:Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).

10) Communication:RS232 serial port for TG3100. No communication port for TG3000.

11) Outline dimensions:150mm×74mm×32 mm.

12) Weight:245g

Configuration

No.

Item

Quantity

Note

Standard Configuration

1

Main body

1

2

Transducer

1

Model: N05/90°

3

Couplant

1

4

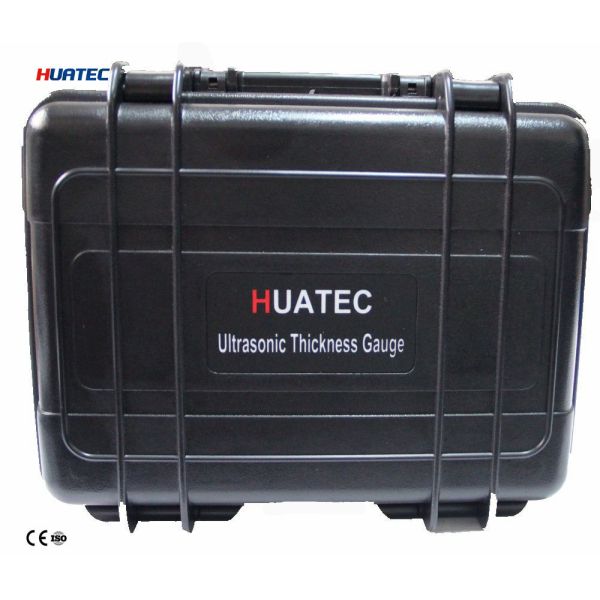

Instrument Case

1

5

Operating Manual

1

6

Alkaline battery

2

AA size

7

8

Optional Configuration

9

Transducer: N02

See Table3-1

10

Transducer: N07

11

Transducer: HT5

12

Mini thermal printer

1

Only for TG3100

13

Print cable

1

14

DataPro Software

1

15

Communication Cable

1

Operating Conditions

Operating Temperature: －20℃～＋60℃;

Storage Temperature:-30℃～＋70℃

Relative Humidity ≤90％；

The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.
