HD-18A Professional Underground Pipeline Locator with Accurate Depth and Position Measurement
HD-18A Professional Underground Pipeline Locator with Accurate Depth and Position Measurement
HD-18A Professional Underground Pipeline Locator with Accurate Depth and Position Measurement
HD-18A Professional Underground Pipeline Locator with Accurate Depth and Position Measurement
Specifications
Brand Name :
HUATEC
Model Number :
HD-18A
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD2760/set - USD3120/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Positioning accuracy :
±5% of depth (without interference from adjacent pipelines)
Depth measurement accuracy :
±5% of depth (without interference from adjacent pipelines)
Current measurement accuracy :
±5% of actual current (without interference from adjacent pipelines)
Depth measurement range :
< 6 meters
Working frequency :
128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz
Operating temperature :
-20℃ to +50℃
Output power :
10W
Description

HD-18A Professional Underground Pipeline Locator with Accurate Depth and Position Measurement


HD-18A underground pipeline detector is meticulously developed by a domestic professional research team. It integrates advanced technologies such as ultra-narrow band filters, and possesses outstanding detection capabilities including strong anti-interference ability, precise positioning and depth measurement. It is suitable for the detection and patrol of various underground metal pipelines, pipeline management and maintenance, municipal planning and construction, power supply and other departments. It is one of the essential instruments for pipeline maintenance units.

Technical Specifications:

(1) Receiver

Positioning accuracy: ±5% of depth (without interference from adjacent pipelines)

Depth measurement accuracy: ±5% of depth (without interference from adjacent pipelines)

Current measurement accuracy: ±5% of actual current (without interference from adjacent pipelines)

Depth measurement range: < 6 meters

Working modes: Valley mode, Peak mode, Wide Peak mode, Peak Arrow mode

Working frequency: 50Hz, 512Hz, 1KHz, 33KHz, 83KHz

Menu settings: Chinese and English setting menu.

Operating temperature: -20℃ to +50℃

Battery: 7.4V lithium battery

Dimensions: 595mm × 136mm × 238mm

Weight: 1.6Kg (including battery)

(2) Transmitter

Output power: 10W

Working frequency: 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz

Working mode: Automatic conversion among direct connection, induction and clamp modes

Battery: Built-in 14.8V lithium battery pack

Operating temperature: -20℃ to +50℃

Dimensions: 348mm × 228mm × 84mm

Weight: 2.5Kg (including battery)


Product Features:

1. Utilizing a 10W wideband transmitter, it can be used for detection in various environments.

2. Both the receiver and the transmitter are powered by lithium battery packs, which is energy-saving and has an extremely long working time.

3. The display has backlighting function, which can be used for emergency rescue at night.

4. It has left and right arrow displays, enabling quick positioning of the pipeline location.

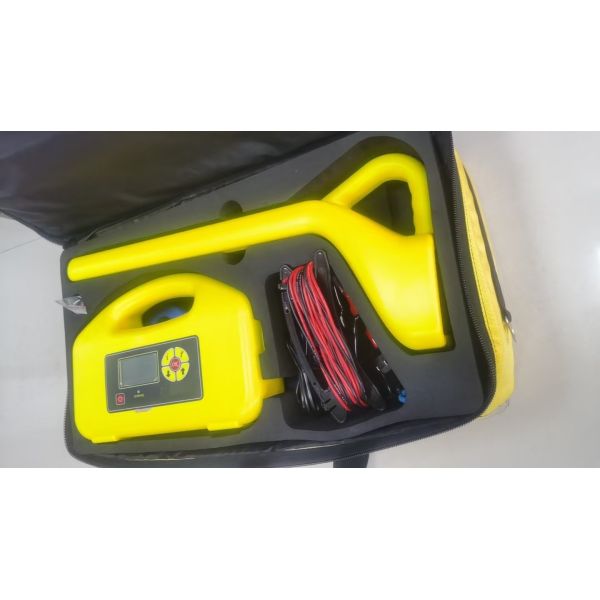

Main accessory configuration :

(1) Standard configuration

One HUATEC HD-18A receiver;

One HUATEC HD-18A transmitter;

One induction clamp;

One output cable;

One grounding rod;

Two chargers;

One connecting magnet;

One 220V power cord;

One user manual;

One instrument packaging bag.

One HUATEC calibration certificate.
