DG-4020 Dual AC DC Portable LED UV light
DG-4020 Dual AC DC Portable LED UV light
DG-4020 Dual AC DC Portable LED UV light
DG-4020 Dual AC DC Portable LED UV light
DG-4020 Dual AC DC Portable LED UV light
DG-4020 Dual AC DC Portable LED UV light
Specifications
Brand Name :
HUATEC
Model Number :
DG-4020
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1pc
Payment Terms :
T/T,Western Union/Paypal
Supply Ability :
500PCS
Delivery Time :
5-8 working days
Packaging Details :
Carton
Name :
Handheld LED UV Lamp
Application :
UV light for magnetic particle inspection
Use :
UV leak detection light
Keywords :
Handheld LED UV Lamp
Description

DG-4020 Dual AC DC Portable LED UV light

Portable LED UV light Main purpose
Fluorescent Magnetic Particle Inspection (MPI)
Fluorescent Penetrating Inspection (FPI)
Oil contamination, leakage, and fluorescent labeling inspection

Feature

● Strictly comply with ASTM E3022

● UV-B content is 0

● Battery life of 2-3 hours

● Quick Battery Replacement

● Only 560g of battery is included

● Temperature rise of external surface under continuous operation < 8K (8℃)

● It has colour filter glass, and the white light content is less than 20LUX

● Can work with AC directly and also with DC battery

DG-4020 Dual AC DC Portable LED UV light parameter

Project Parameter / mode
Style Handheld

UV(Light)-FLUX

Indoor temperature 25℃

 6000uW/cm2
White light content ≤3LUX

Irradiation area at depth of 380mm:

(≥1000uw/cm²)

 Φ300mm
Flux error 0-40℃ ±10%
Light distribution characteristics Central light distribution
Power Supply AC100- 240V,50/60Hz
Power UV LED-12VA
Wavelength Room temperature 25℃, 365nm±3nm (UVA)
Overall dimension 157. 5mm (W) *76mm (D) *177mm (H)
Weight 560g including battery
Battery capacity 2200mA/H 12.6V
Charging time 2-3H
Battery life (cumulative time) UV LED 2-3H

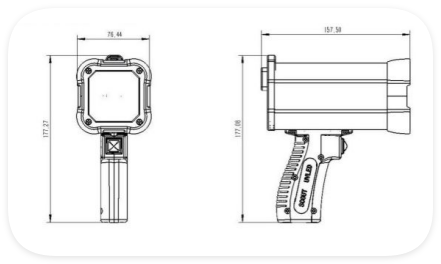

Dimension: (mm)

DG-4020 Dual AC DC Portable LED UV lightDG-4020 Dual AC DC Portable LED UV lightDG-4020 Dual AC DC Portable LED UV light
