Magnetic Wire Rope Tester HRD-120
Magnetic Wire Rope Tester HRD-120
Magnetic Wire Rope Tester HRD-120
Magnetic Wire Rope Tester HRD-120
Specifications
Brand Name :
HUATEC
Model Number :
HRD-120
Certification :
Standard
Place of Origin :
China
Name :
Magnetic Wire Rope Tester
Use :
Magnetic flux leakage rope tester
Application :
Mining rope inspection equipment
Keywords :
Magnetic Wire Rope Tester
Description

Magnetic Wire Rope Tester HRD-120

Core functionality
Electromagnetic/leakage magnetic detection (LF+LMA dual function): Axial saturated magnetization steel wire rope, capturing internal and external defects such as wire breakage, wear, rust, loose strands, wire jumping, deformation, material changes, etc.
LMA (metal cross-sectional area loss)+LF (magnetic leakage defect): Simultaneously quantitatively measure cross-sectional area loss and qualitatively measure local defects.
Online/offline detection: Move at a speed of 0-6m/s, without disassembling or stopping the machine for detection.
High precision positioning: with a position error of ± 0.2%, the accuracy of identifying broken wires can reach 99.99%.
Sound and light alarm+real-time display: defect real-time alarm, data dynamic visualization.
Data processing: USB directly connected to computer, automatically generates reports, stores, prints, compatible with Windows system.
Wide range adaptation: detection diameter Φ 1.5 – 300mm, equipped with different sensors.
Industrial protection: Waterproof, dustproof, shockproof, moisture-proof, suitable for harsh environments.

System configuration and model

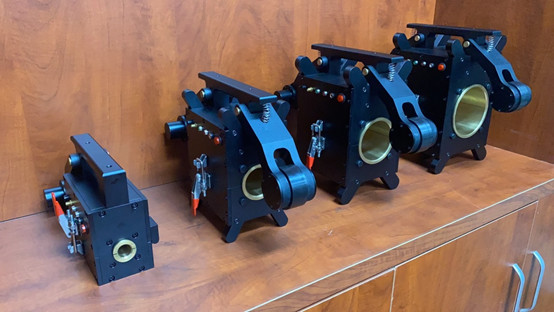

All need to be customized: Wire rope flaw detection machine (48mm small - 78mm medium - 108mm large)

SN.

Configure the name and model

Quantity

Mark

Sensing unit

1

• Integrated sensing unit

• High speed reversible exciter • High conductivity signal concentrator

• Display Hall magnetic sensitivity Group • Floating centering wear guide sleeve

• High precision distance encoder • Automatic positioning wheel rolling device

1 set

Encoder included

2

• Real-time alarm (digital to analog conversion hi-fi)

•AD analog-to-digital conversion module • Automatic noise rejection module

• Defect audible and visual alarm module • Detection quality assurance module

•DAQ plug and play mode

1 set

Includes Wi-Fi capture

3

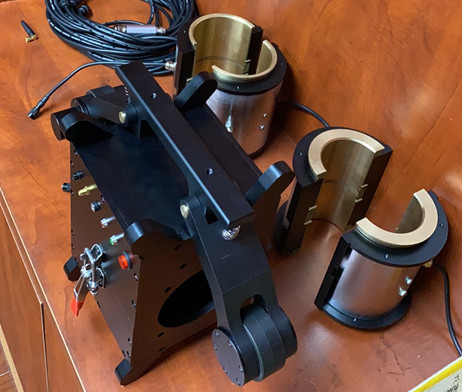

Replaceable lining sleeve

5 sets

Custom specifications are discussed separately

Processing unit

4

USB transmission cable

1 pc

Custom-made 20 meters long

5

Wi-Fi antenna

2 pcs

One is for spare parts

6

V3.0 version signal real-time processing software

1 set

7

Data acquisition Computer (Tablet type)

1unit

Included charger

Accessory unit

8

Custom instrument case

1 pc

Custom pull rod shift wheel

9

All-in-one charger

1 pc

Red light: Charging

Green: Full

10

Flexible traction safety cable

1 pc

Flexible connections for sensing units

11

Operation manual (related technical data)

1 pc

12

Certificate (Warranty card)

1 pc

13

Packing list

1 pc

Note: 1, among which 7 tablet dual-use computer is optional (according to demand, the cost is additional);

2, all sizes can be customized on demand (and can be accurately customized replaceable lining); Such as 48mm+24mm replaceable bushing.
