TG-140EX Explosion Proof High Temperature Pen Type Non-Contact Electromagnetic Thickness Meter for Coated Metal
TG-140EX Explosion Proof High Temperature Pen Type Non-Contact Electromagnetic Thickness Meter for Coated Metal
TG-140EX Explosion Proof High Temperature Pen Type Non-Contact Electromagnetic Thickness Meter for Coated Metal
TG-140EX Explosion Proof High Temperature Pen Type Non-Contact Electromagnetic Thickness Meter for Coated Metal
Specifications
Brand Name :
HUATEC
Model Number :
TG-140EX
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Measurement range :
1.0～640 mm
Gain :
Automatic 0～96dB，pace 1dB
Sonic sound speed adjustment range :
400～9999 m/s
Lifting distance :
5mm(Aluminum), 4mm(Carbon steel), 3mm(Stainless steel)
Bandwidth :
2.5MHz～6MHz
Launch :
±600V_400Hz_125ns
Measurement mode :
Single echo(I-E), Dual echo(E-E)
Description

TG-140EX Explosion Proof High Temperature Pen Type Non-Contact Electromagnetic Thickness Meter for Coated Metal

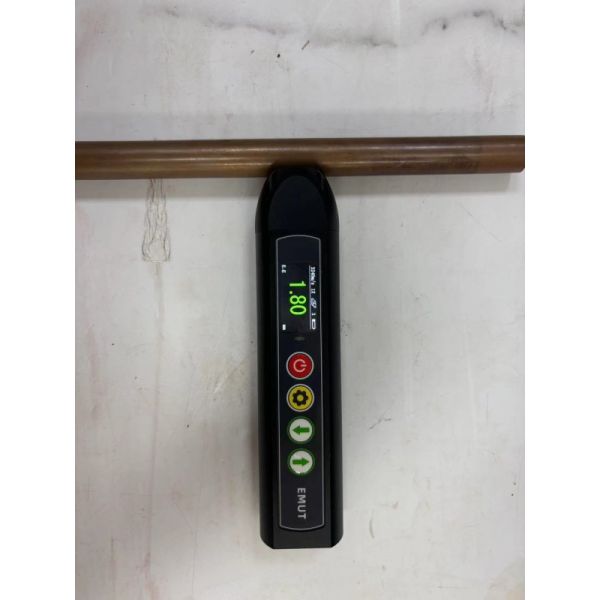

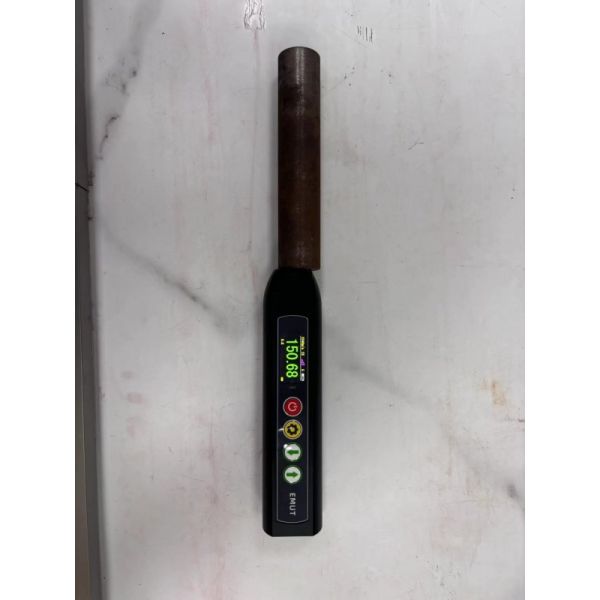

TG-140EX Explosion proof A scan electromagnetic ultrasonic thickness gauge is a small pen type, air coupling thickness measurement gauge that does not require acoustic coupling agents. Widely used for thickness measurement of metal or magnetic materials.

Product Features

l Small size and easy to carry.

l The requirements for the workpiece surface are not high, and there is no need to polish the rough surface, which can realize non-contact measurement.

l It is insensitive to the coating and can realize the thickness measurement of coated workpiece.

l No acoustic coupling agent is required, it is suitable for thickness measurement of high-temperature workpiece.


Basic Parameters

Sampling rate

80MSPS

Bandwidth

2.5MHz～6MHz

Launch

±600V_400Hz_125ns

Gain

Automatic 0～96dB,pace 1dB

Measurement accuracy

±0.01mm

Sound velocity range

400～9999 m/s

Effective range

1.0～640 mm

Average level

L,M,H three-level adjustable

Lifting distance

5mm(Aluminum), 4mm(Carbon steel), 3mm(Stainless steel)

Measurement range

Measure carbon steel — 1X:160mm 2X:320mm 3X:640mm

Measurement type

Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials

Measurement channel

Thin parts, common, bars

Measurement mode

Single echo(I-E), Dual echo(E-E)

Search mode

Frontier-Frontier mode, Wave crest-Wave crest mode,

Wave crest-Frontier mode

Auxiliary functions

Auto freeze, Auto gain, Auto sleep, A-Scan waveform display

Revised function

Gate height adjustment, delayed fade adjustment, manual gain adjustment, sound velocity calibration, high temperature compensation

Communication Interface

RS-485 or USB2.0

Charger

5V2A, Standard Type-C interface

Display screen

1.47 inch 320× 172 IPS_LCD

Dimension

178.4 mm× 42 mm× 32 mm

Battery life

3.7V 3400mAh Lithium battery, 6 hours of battery life

Bare weight

A Metal shell: 358g B Injection molded shell: 255g

C Injection molded + quick release: 289g

Standard Configurations

Serial number

Name

Quantity

Remark

1

Host TG-140EX

1

2

Normal temperature probe

1

4MHz,Φ42mm*32mm

3

Charging data cable

1

4

Charging plug

1

5

Manual&calibration certificate

1

6

Iron based test block

1

7

Aluminum based test block

1

8

Packing box

1

Optional Configuration (You can choose to order according to your needs, which is not included in the standard configuration)

Serial number

Name

Quantity

Remark

1

High temperature probe

1

4MHz,Φ33mm*40mm

2

Small diameter normal temperature probe

1

4MHz,Φ13mm*36mm

3

Large diameter normal temperature probe

1

4MHz,Φ40mm*60mm
