HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing
HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing
HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing
HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing
Specifications
Brand Name :
HUATEC
Model Number :
HCDX-Y45 Series
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
10 Sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
aluminum alloy box+Outer carton packaging
Sensitivity :
A1 15/100 standard test piece; Clear display of defect
Probe pole distance :
40mm-200mm
Lifting force :
AC≥45N DC≥177N
UV lamp intensity :
≥5000uw/cm²(HCDX-45DC and HCDX-Y45Z has this function)
Illumination of white lamp :
≥1450Lux (only when connected to AC)
Description

HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing


Uv lamp intensity: ≥5000uw/cm²

White lamp intensity: ≥1450Lux

HCDX-Y45 Portable AC Magnetic Yoke Flaw Detector with White Light

HCDX-Y45DC Portable AC&DC fluorescent magnetic yoke Flaw detector with White light and UV light

HCDX-Y45Z Portable AC fluorescent magnetic Yoke Flaw detector with White light and UV light

1. Product introduction

• The probe can choose two lighting modes: ultraviolet lamp and white lamp.

• The probe weight is only 2.0kg, suitable for long time magnetic particle detection work.

• Working mode: AC and DC (for model HCDX-Y45DC)

• AC operation: The probe is connected to AC220V power supply for flaw detection.

• DC operation: The probe can be connected to the battery for DC operation.

2. Technical parameters

Sensitivity A1 15/100 standard test piece; Clear display of defect
Power supply

HCDX-Y45: AC220V

HCDX-Y45DC: AC220V and DC12V

HCDX-Y45Z: AC220V
Probe pole distance 40mm-200mm

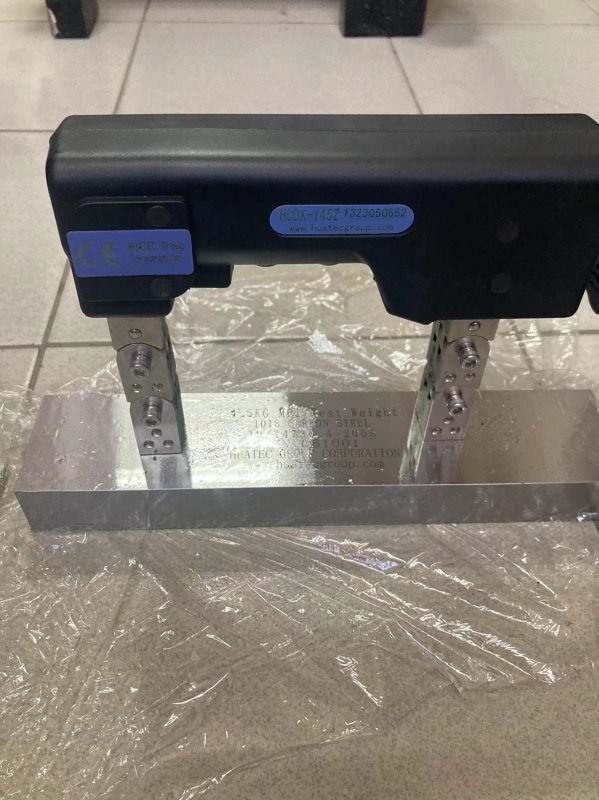

Lifting force AC≥45N DC≥177N
Illumination of white lamp ≥1450Lux (only when connected to AC)
UV lamp intensity ≥5000uw/cm²(HCDX-45DC and HCDX-Y45Z has this function)
Machine size 210mm (length) *48mm (width) *150mm (height)
Yoke weight 2.0 kg

3. Configuration

HCDX-Y45 configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• AC power cable 1 pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc


HCDX-Y45DC configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• UV lamp 1 pc

• AC power cable 1 pc

• Power adapter 1 pc

• Lead acid battery 1 pc

• DC power cable 1 pc

• Battery pack 1pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc

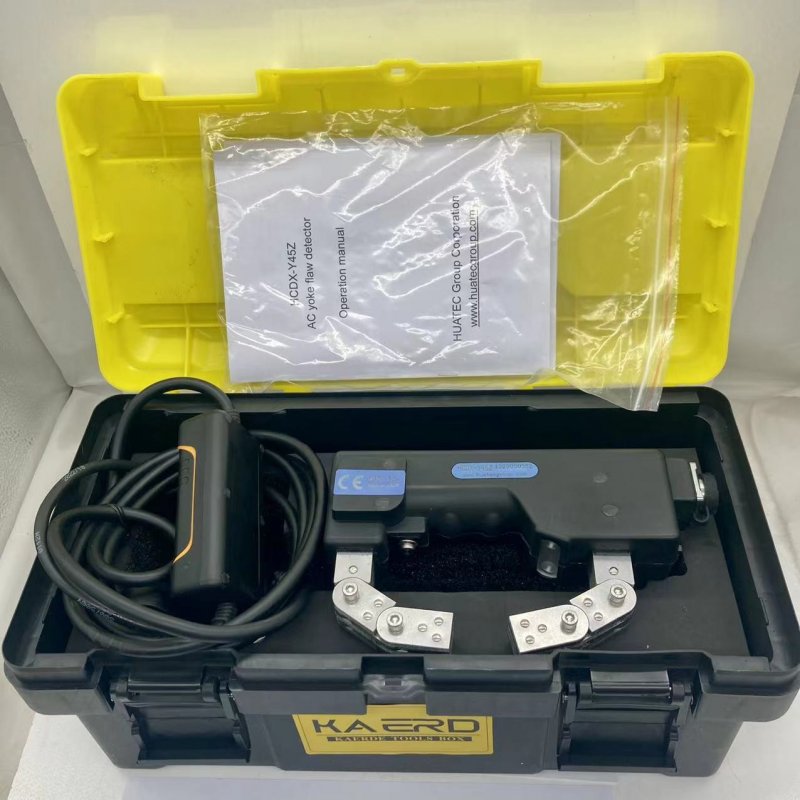

HCDX-Y45Z configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• UV lamp 1 pc

• AC power cable 1 pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc
