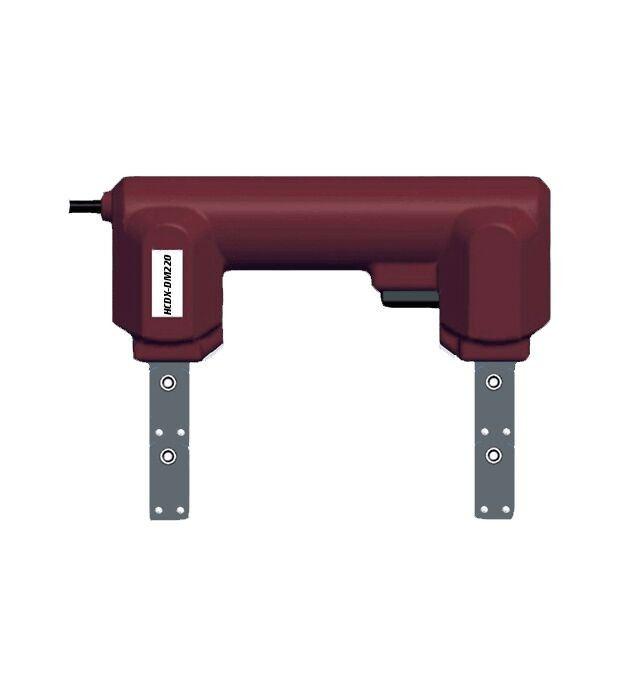

HCDX-DM220 AC Magnetic Yoke Flaw Detector with LED White & Black Light for Magnetic Particle Testing

HCDX-DM220 type AC magnetic yoke flaw detector, ~220V direct power supply, equipped with strong LED white light and LED black light, can be used through the key selection, can be used for non-fluorescent magnetic particle detection and fluorescent magnetic particle detection. Small and exquisite, exquisite workmanship, high detection sensitivity, easy to carry. Widely used in aerospace, petrochemical, electric power and water conservancy, railway construction, special equipment inspection and testing industries.

Technical parameters

Product features

Continuous Magnetization time more than 3minutes

Using superconducting magnet, light weight,1.6kgs

~ 220 v power supply directly, without the controller

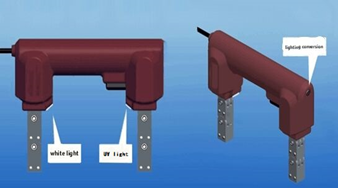

UV and white light, can be common magnetic particle testing, also can undertake the fluorescent magnetic particle testing, do not need any outside lighting

High strength shell material, impact resistance, abrasion resistance

Human body engineering design, reasonable structure

Leather shell, high-end atmosphere, feel comfortable

Use the high quality equipment, durable

Standard package:

Main unit HCDX-DM220 ……………………………………….1pc

Fillet weld removable joints ………………………….………….1pair

Carrying case …………………………………………………….1pc

Instruction manual………………………………………………..1pc

Calibration certificate………………………………………….....1pc

Warranty card….............................................................................1pc

Precautions and instructions for operation:

1. The instrument is simple to operate, plug in the power supply, press the magnetizing switch can work. Press the magnetizing switch, and the instrument will be illuminated by white light by default. If fluorescent flaw detection is needed, it can be converted by pressing the bright conversion button. The logic relation of the button switch is: white light - purple light - all out cycle.

2. The power supply is one-way AC ~220V/ 50Hz, do not connect the wrong power supply, so as not to burn out the instrument;

3. It is necessary to avoid pressing the magnetizing switch without load for a long time to avoid damaging the equipment.
