HPT Series Automatic Fluorescent Penetrant Inspection Line FPI Machine for Small & Medium Components
HPT Series Automatic Fluorescent Penetrant Inspection Line FPI Machine for Small & Medium Components
HPT Series Automatic Fluorescent Penetrant Inspection Line FPI Machine for Small & Medium Components
HPT Series Automatic Fluorescent Penetrant Inspection Line FPI Machine for Small & Medium Components
Specifications
Brand Name :
HUATEC
Model Number :
HPT series
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
10 Sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
aluminum alloy box+Outer carton packaging
Power requirements :
380V, 50Hz, single-phase
Slot size :
40 x 80 x 40 cm
Tank capacity :
102 liters
Drying :
digital temperature control
Black light :
handheld LED black light
Description

HPT Series Automatic Fluorescent Penetrant Inspection Line FPI Machine for Small & Medium Components

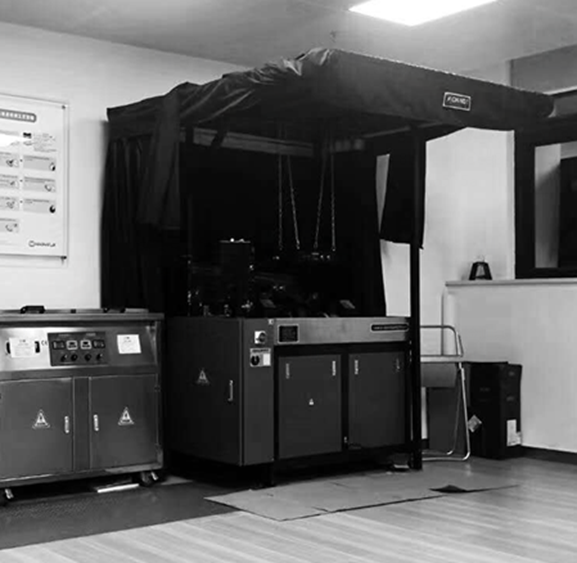

The HPT series penetration testing workstation is a split fluorescent penetration testing line suitable for lightweight testing of small to medium-sized components, including aerospace fasteners, automotive components, and surgical implants.

The HPT series penetration testing workstation provides the following three different testing processes:

A Water Wash Penetrant Testing Equipment -5-Station

B oil-based post emulsification type penetration testing equipment -8-station type

C water-based post emulsification type penetration testing equipment -9-station type

Product Features

304 stainless steel groove

Durable and sturdy steel structure

Drying control for digital calibration

Black light

Split detection station

Detection of visible light in the dark screen

Detection of ventilation equipment in dark curtains


Main specifications

Power requirements 380V, 50Hz, single-phase
Slot size 40 x 80 x 40 cm
Tank capacity 102 liters
Drying digital temperature control
Black light handheld LED black light

A water wash type

workstation

1. Penetration

2. Drip

3. Cleaning

4. Drying

5. Imaging

6. Observation

B oily post emulsification

workstation

1. Penetration

2. Drip # 1

3. Emulsification

4. Cleaning

5. Drip # 2

6. Drying

7. Imaging

8. Observation

C water-based post emulsification

workstation

1. Penetration

2. Drip # 1

3. Front cleaning

4. Drip # 2

5. Emulsification

6. Post cleaning

7. Drying

8. Imaging

9. Observation

Please provide the penetration inspection process, the size of the 304 stainless steel groove, the number of 304 stainless steel grooves, and the functions of each groove. We will provide a detailed solution

In addition, it is necessary to know the specifications and dimensions of the cleaned parts, as well as the number of daily inspections
