HIT-305 HIT-306 Dry Film Impact Tester for Paint Coating Resistance Test
HIT-305 HIT-306 Dry Film Impact Tester for Paint Coating Resistance Test
HIT-305 HIT-306 Dry Film Impact Tester for Paint Coating Resistance Test
HIT-305 HIT-306 Dry Film Impact Tester for Paint Coating Resistance Test
Specifications
Brand Name :
HUATEC
Model Number :
HIT-305 HIT-306
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
5-7 working days after receipt of your payment
Packaging Details :
Carton packing box
Instrument scale length :
0-100cm (40inch)
Graduation :
1cm
Description

HIT-305 HIT-306 Dry Film Impact Tester for Paint Coating Resistance Test


Impact test describes a method for evaluating the resistance of a dry film of paint, varnish or related product to cracking or peeling from a substrate when it is subjected to a deformation caused by a falling weight.

The coating under test is applied to suitable, thin normally metal panels. After the coating has cured, a standard weight is dropped on the each panel from a height that will cause deformation of the coating and the substrate. The test can be carried out with the coated side of the panel facing upwards i.e. towards the falling weight or downwards i.e. away from the weight .By gradually increasing the height from which the weight drops, the point at which failure occurs can be determined. Films generally fail by cracking, which is made more visible by the use of a magnifier.

The test can be carried out---either as a “pass/fail” test, the test being carried out from one drop height and with a specified mass, so as to test compliance with a particular specification.

---or as a classification test, to determine, by gradually increasing the drop height and/or the mass, the minimum mass and/or drop height for which the coating cracks or peels from its substrate.

HUATEC Group offers many different types impact testers according to different standards. These impact testers consist of a solid base with a guide tube support, some different weights hammers falling weights and some different diameters punches.

Users can choose different size and weight hammer to simulate paint used different environments

Technical parameters

HIT-305

heavy-duty Impact Tester

HIT-306

ISO Impact Tester

Features

1.Latest design make changing punch,weight and die

become more easy and faster.

2.The aluminum oxid guide tube is produced by special technology, never fade and rust.

3.Special structure design make impact. groove won't

deviate forever, no calibration.

4.Come with Calibration Certificate.

1.Ring slot for height limitation, convenient for operator to adjust different impact depth.

2.The aluminum oxid guide tube is produced by special technology, never fade and rust.

3.Guide tube is produced by special mould, the gap with weight is controlled precisely.

4.Come with Calibration Certificate.

Instrument scale length

0-100cm (40inch)

Graduation

1cm

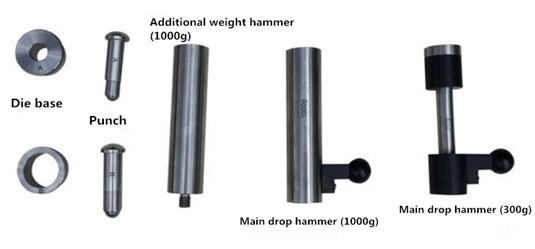

Falling Weights

1000g (2pcs),300g(1 pc)

1000g (2 pcs),2 lb(2 pcs )

Punch Diameter

Ф12.7mm(1/2 іnсh),Ф 15.9mm ( 5/8 іnсh)

Ф20 mm,15.9mm ( 5/8 іnсh)

Die inside Diameter

Ф 16.Зmm,ФЗ1.75mm

Ф 27mm,Ф 16.Зmm (41/64іnсh )

Standards

ASTM D 2794, ASTM D 3029, ISO 6272.2

ASTM D 2794,ASTM D 3029,ISO 6272.1
