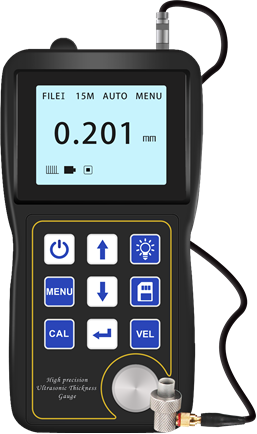

TG-3219 Portable Echo-Echo Ultrasonic Thickness Meter Through Coating Measurement for Metal & Industrial NDT
TG-3219 Portable Echo-Echo Ultrasonic Thickness Meter Through Coating Measurement for Metal & Industrial NDT
TG-3219 Portable Echo-Echo Ultrasonic Thickness Meter Through Coating Measurement for Metal & Industrial NDT
TG-3219 Portable Echo-Echo Ultrasonic Thickness Meter Through Coating Measurement for Metal & Industrial NDT
Specifications
Brand Name :
HUATEC
Model Number :
TG-3219
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD1380/set - USD1560/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Testing arrange :
0.15~20mm
Velocity Range :
1000~9999m/s
Precision :
H<10mm±0.005mm H≥10mm±（0.005mm+H/100）mm
Storage Capacity :
500 sets of data
Test model :
EE/IE
Testing Material :
Steel, iron, glass, plastic, aluminum, etc
Display screen size :
2.4 "FSTN, LED backlight
Description

TG-3219 Portable Echo-Echo Ultrasonic Thickness Meter Through Coating Measurement for Metal & Industrial NDT


TG-3219 ultrasonic thickness gauge adopts the principle of pulse reflection ultrasonic measurement, which is suitable for the measurement of the thickness of various materials in which the ultrasonic can propagate at a constant speed and get the reflection from the back. This instrument can accurately measure various plates and various processed parts. It can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields. For different applications, the instrument is divided into basic type, high temperature type, cast iron type and precision type.

Basic Parameters

Be able to pass through

the coatings

IE mode can pass through 1mm coating

Measuring range

0.15~20mm

Precision

H<10mm±0.005mm

H≥10mm±(0.005mm+H/100)mm

Probe size

Diameter 6mm

Measurement mode

EE/IE

Display screen size

2.4 "FSTN, LED backlight

Measurable materials

Steel, iron, glass, plastic, aluminum, etc

Sound velocity

range

1000~9999m/s

Storage capacity

500 sets of data

Units of

measurement

Metric/imperial

Language supported

English

Working

temperature

0~50℃

Environment humidity

Relative humidity less than 90%

Power supply

2*1.5V dry battery

Product size

151*76*33mm

Product weight

220g

Product Features

l High frequency single crystal probe can be used to realize the function of measuring ultra-thin parts.

l The "echo-echo" ultrasonic thickness measurement technology is adopted to realize the thickness measurement through the coating.

l The display resolution is 0.001mm,and the measurement range is 0.15-20mm.

l LCD contrast is adjustable, 128*64 dot matrix LCD display, with LED backlight,which can be used in various light environments.

l The USB interface can be used to transfer data to the computer.

Basic Configurations

Host TG-3219

1pc

Probe

15M single crystal probe 1 pc

Coupling agent

1 pc

Manual, Warranty Card, Certificates

1 pc for each
