RHL-141 Digital Portable Hardness Tester with Multi Impact Devices & Alarm Function
RHL-141 Digital Portable Hardness Tester with Multi Impact Devices & Alarm Function
RHL-141 Digital Portable Hardness Tester with Multi Impact Devices & Alarm Function
RHL-141 Digital Portable Hardness Tester with Multi Impact Devices & Alarm Function
Specifications
Brand Name :
HUATEC
Model Number :
RHL-141
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD575-USD650
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Memory :
510 file,47 ~ 341 groups (Impact times:32 ~ 1) per file
Hardness scale :
HL, HRC, HRB, HRA, HV, HB, HS
Tensile strength U.T.S. range :
374 ~ 2652 MPa
Min. Radius of Workpiece (convex/concave) :
Rmin = 50mm (with special support ring Rmin = 10mm )
Min. thickness of hardened layers :
0.8mm
Data Interface :
USB 2.0, Bluetooth
Description

RHL-141 Digital Portable Hardness Tester with Multi Impact Devices & Alarm Function


Features:
-Advanced Leeb hardness model

-Automatic identification of Impact devices
-High performance rechargeable Li battery, intelligent charging management
-Optional Software to connect with PC,Support data query, storage, statistics and histogram display and other functions

-Mass storage,Bluetooth communication
-Upper and lower limit and sound alarm
-2.8” TFT,320*240 Pixel, showing all functions and parameters

-Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
-For all metallic materials
-Test at any angle, even upside down
-Wide measuring range
-Six Impact Devices are available for special application
-Battery low indication and sound alarm

Technical Specification

Hardness scale

HL, HRC, HRB, HRA, HV, HB, HS

Memory

510 file,47 ~ 341 groups (Impact times:32 ~ 1) per file

Measuring range

HLD(170 ~ 960), HRA(59 ~ 85), HRB(13 ~ 100),

HRC(20 ~ 68), HB(19 ~ 651), HV(80 ~ 967), HS(30 ~ 100)

Tensile strength U.T.S. range

374 ~ 2652 MPa

Accuracy

±6HLD (760±30HLD) error of displayed value

6HLD (760±30HLD) repeatability of displayed value

Standard Impact Device

D

Data Interface

USB 2.0, Bluetooth

Optional Impact Devices

DC / D+15 / G / C / DL

Max. Workpiece Hardness

996HV(For Impact Devices D / DC / DL / D+15 / C)

646HB(For Impact Device G)

Min. Radius of Workpiece (convex/concave)

Rmin = 50mm (with special support ring Rmin = 10mm )

Min. Workpiece weight

2 ~ 5kg on stable support

0.05 ~ 2kg with compact coupling

Min. Workpiece thickness

5mm (Impact Devices D/DC/DL/D+15)

1mm (Impact Device C)

10mm (Impact Device G)

Min. thickness of hardened layers

0.8mm

Power

Rechargeable Li Battery, 3.7V, Li(2000mAh)

Continuous Working time

About 30h

Charging time

4 ~ 5 hours

Operating temperature

0 ~ 40ºC

Humidity

≤ 90%

Overall dimensions

212 × 80 × 35 mm

Weight

320g

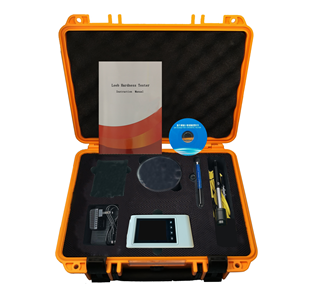

Standard delivery

Main unit RHL-141

Impact Device type D

Test block HLD

Charger

Brush

Table support for main unit

Connecting cable

HUATEC calibration certificate

Instruction manual

Dataview Software

Optional accessories

Optional impact devices

Optional support rings

Other test blocks

Micro Printer
