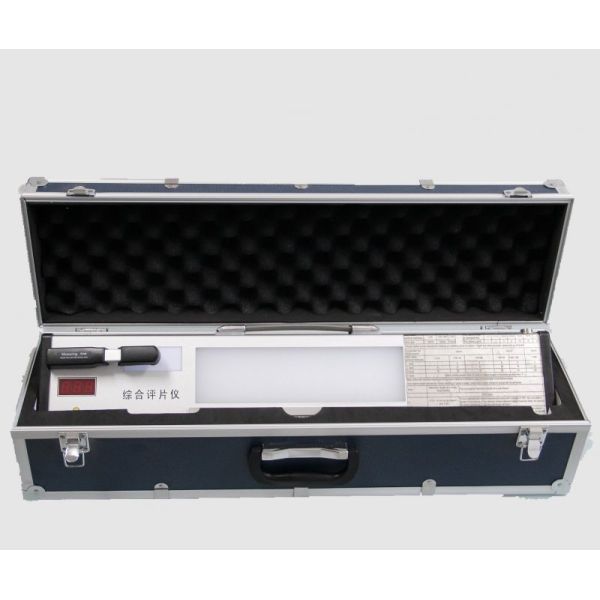

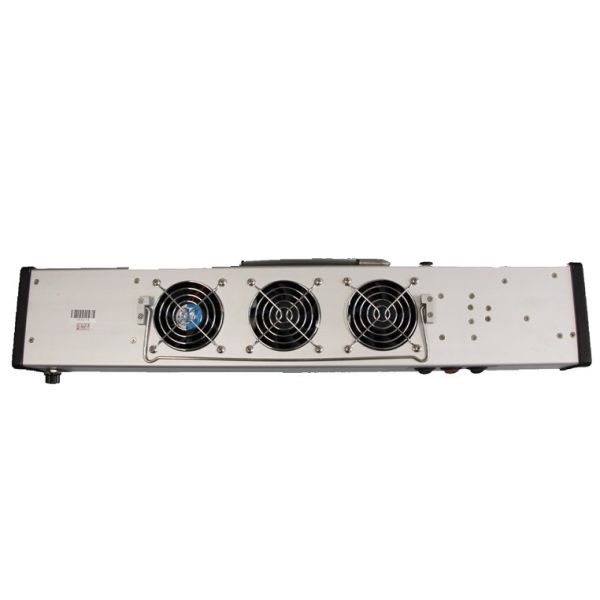

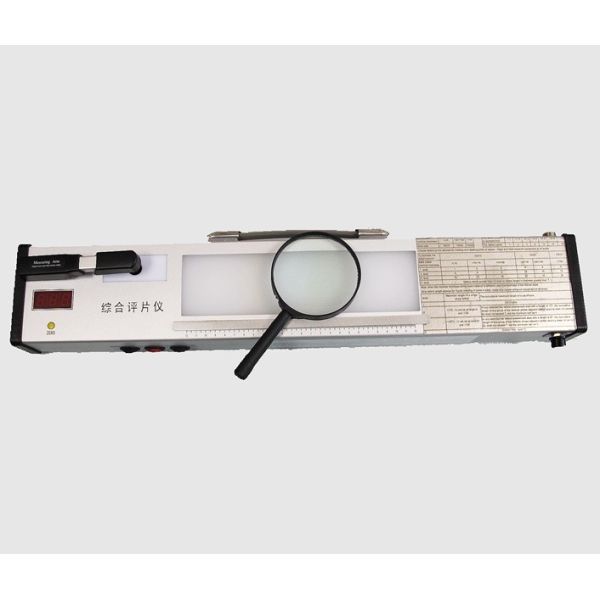

HFU-600 Industrial Radiographic Film Evaluation Meter with Densitometer & Film Viewer for NDT Industrial Film Inspection
HFU-600 Industrial Radiographic Film Evaluation Meter with Densitometer & Film Viewer for NDT Industrial Film Inspection
HFU-600 Industrial Radiographic Film Evaluation Meter with Densitometer & Film Viewer for NDT Industrial Film Inspection
HFU-600 Industrial Radiographic Film Evaluation Meter with Densitometer & Film Viewer for NDT Industrial Film Inspection
Specifications
Brand Name :
HUATEC
Model Number :
HFU-600
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD875/set - USD988/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Brightness :
320000LUX
Total power consumption :
160W
Darkness :
>4.5D
Measuring range :
0.00-5.00D
Sampling time :
0.8 seconds
Light hole diameter :
2mm
Reading stability :
±0.02
Description

HFU-600 Industrial Radiographic Film Evaluation Meter with Densitometer & Film Viewer for NDT Industrial Film Inspection


The densitometer module is part of HFU-600 Film Viewer Film Densitometer all in one Film Evaluation Meter. It is a quality product of computer-assisted high technology. It boasts accurate readings, high stability and easy operation. It can be widely applied to the fields such as nondestructive testing, publishing industry and medical science etc. The film evaluation meter HFU-600 is equipped with a density tablet for testing its precision.


The Film viewer module is part of HFU-600 Film Viewer Film Densitometer all in one Film Evaluation Meter. It uses powerful LED light, has new advantage of low luminance, poor contrast and short lifetime. It is developed absolutely according to the Norm of ISO 5580 Industrial radiographic illuminators minimum requirements.


Standard delivery:

Name Quantity
Power cable 1pc
Density tablet 1pcs
2A fuse 2 pcs
Calibration certificate 1 pc
Foot switcher 1 pc
Light covering board 1 pc
Magnifier 1 pc
Instruction manual 1 pc
Certificate 1 pc


Technical parameters:


1,Brightness:320000LUX
2,Total power consumption: 160W
3,Darkness: >4.5D
4,Window size: 255×70(mm)

5. Power: AC220V(±10%)/50Hz
6,Display: three digits

7,Measuring range: 0.00-5.00D
8,Sampling time: 0.8 seconds
9,Light hole diameter: 2mm
10,Reading stability ±0.02

Power consumption: about 10W
12,Uncertainty: 0.00-3.00≤0.02D
3.00-5.00≤0.04D
13,Working environment: Temp: 0℃-40℃,Humidity: ≤85%
14,Size: 300×110×58(mm)
15,Weight: about 1.5Kg

HFU-600 Industrial Radiographic Film Evaluation Meter with Densitometer & Film Viewer for NDT Industrial Film InspectionHFU-600 Industrial Radiographic Film Evaluation Meter with Densitometer & Film Viewer for NDT Industrial Film InspectionHFU-600 Industrial Radiographic Film Evaluation Meter with Densitometer & Film Viewer for NDT Industrial Film Inspection
