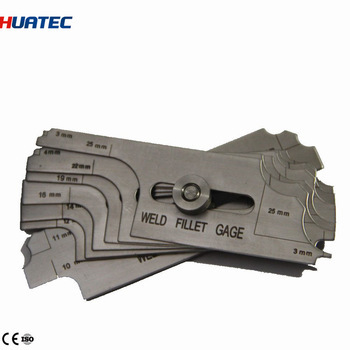

MG-11 Type Fillet Weld Size Gauge Metric & Inch Dual Scale
MG-11 Type Fillet Weld Size Gauge Metric & Inch Dual Scale
MG-11 Type Fillet Weld Size Gauge Metric & Inch Dual Scale
MG-11 Type Fillet Weld Size Gauge Metric & Inch Dual Scale
Specifications
Brand Name :
HUATEC
Model Number :
MG-11
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Leg Length :
5/16″–7/8″ (8 mm–22 mm)
material :
Stainless steel
standard :
AWS D1.1、ISO 5817、BS、GB/T
Description

MG-11 Type Fillet Weld Size Gauge Metric & Inch Dual Scale


MG-11 fillet weld gauge is a professional precision measuring instrument designed for welding inspection, manufactured from high-quality stainless steel with clear and wear-resistant etched markings. It features both metric and inch dual scales, allowing direct and accurate reading of fillet weld leg length and throat thickness without manual calculation. The gauge is compact, lightweight and easy to operate, widely used for on-site welding inspection, factory quality control, welding procedure evaluation and welder skill assessment in industries such as steel structure, pressure vessel, pipeline and engineering machinery. It fully complies with common international welding inspection standards including AWS D1.1 and ISO 5817, providing reliable measurement data for welding quality control.


Material Stainless Steel
Applicable standards Common welding inspection standards such as AWS D1.1, ISO 5817, BS, and GB/T
Measurement system Millimeter (mm) / Inch (inch) dual scale
Leg Length 5/16″–7/8″ (8 mm–22 mm)
Determinable weld seam Convex weld seam, concave weld seam, planar weld seam
Throat Thickness Automatic conversion and display of corresponding solder pads
weight about 30–40 g


Function and Application:
Measure the weld leg length of fillet welds
Measure the effective throat thickness of fillet welds
Quickly determine whether the weld meets the design dimensions

Applicable to welding inspections of steel structures, pressure vessels, pipelines, ships, construction machinery, etc.
