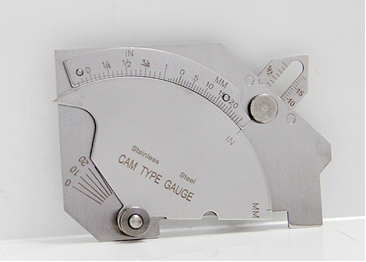

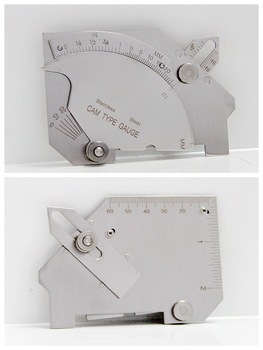

MG-8 Multi-function Bridge Cam Welding Inspection Gauge with 0-60° Angle Adjustment
MG-8 Multi-function Bridge Cam Welding Inspection Gauge with 0-60° Angle Adjustment
MG-8 Multi-function Bridge Cam Welding Inspection Gauge with 0-60° Angle Adjustment
MG-8 Multi-function Bridge Cam Welding Inspection Gauge with 0-60° Angle Adjustment
Specifications
Brand Name :
HUATEC
Model Number :
MG-8
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Angle of preparation :
0° to 60°
material :
Stainless steel
Description

MG-8 Multi-function Bridge Cam Welding Inspection Gauge with 0-60° Angle Adjustment


Simple to use all in one welding gauge for measuring Weld: Undercut, Excess material, Fillets, Weld size and Height, Preparation angle and Misalignment.

Adjustable scale to compensate for point wear. The ROK bridge cam welding gauge is versatile instrument for welding inspection, for it can measure at least 7 type of welded surfaces and joints. It displays measurements in both inches and millimeters (linear measurements up to 60 mm or 2 in.). The gauge is easy to use. It is comprised of one rotating dial and one sliding pointer. You simply move ROK dial or pointer until it makes the appropriate contact and then read the result. Move the dial or pointer until it makes the appropriate contact and then read the result. Welding Inspector can use ROk gauge together to get correct measuring result to assess the quality of welding joints.

Specification:

Material Stainless Steel
Weight 135g
Angle of preparation 0° to 60°

Packed with manual, an illustrated sheet showing the parts of the gauge as well as procedure for measuring different weld parameters

It can measure:

Excess weld metal (capping size)

Depth of undercut

Depth of pitting

Fillet weld throat size

Fillet leg length

Crown Height

Root Face & Root Gap

It displays measurements in both inches and millimeters (linear measurements up to 60 mm or 2 in.). The gauge is easy to use. It is comprised of one rotating dial and one sliding pointer. You simply move the dial or pointer until it makes the appropriate contact and then read the result.
