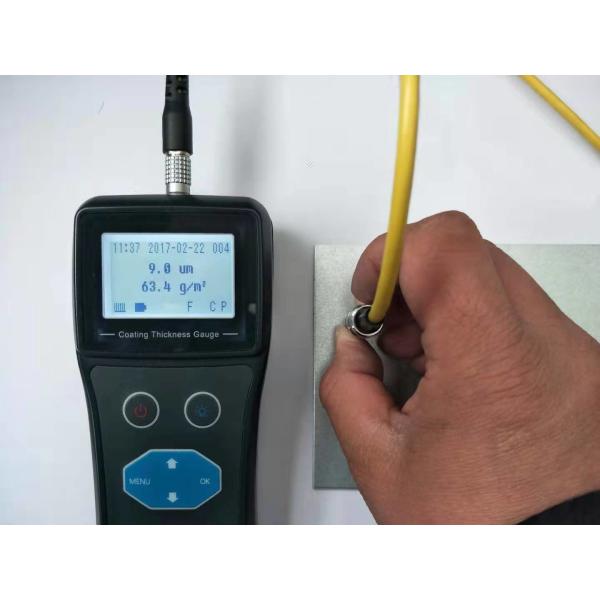

TG-6102 High precision Bluetooth Communication Realtime Online Measurement Coating Thickness Gauge
TG-6102 High precision Bluetooth Communication Realtime Online Measurement Coating Thickness Gauge
TG-6102 High precision Bluetooth Communication Realtime Online Measurement Coating Thickness Gauge
TG-6102 High precision Bluetooth Communication Realtime Online Measurement Coating Thickness Gauge
Specifications
Brand Name :
HUATEC
Model Number :
TG-6102
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD805/set - USD910/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Resolution :
0.1 um（0 ~ 99.9 um），1um（100 ~ 1500 um）
Measuring Period :
3 times per second
Measuring Mode :
Single point, scan mode, average mode, differential mode, alarm mode
Calibration Mode :
Zero, One-Point, Two-Point and Basic Calibration
Storage :
500 measurements, including time, probe type, etc.
Power off :
Timeout power off, and low battery power off
Description

TG-6102 High precision Bluetooth Communication Realtime Online Measurement Coating Thickness Gauge


TG-6102 is a Bluetooth portable coating thickness gauge which is designed for non-destructive, fast and precise coating thickness measurement. The principal applications lie in the field of corrosion protection. It is ideal for manufactures and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries


Technical Parameters:

Probe Type

F (Magnetic)

N (Non-magnetic)

Usage

Non-magnetic coating on magnetic metal substrate

Non-conductive coating on non-magnetic metal substrate

Measure Range

0 ~ 1500 um

0 ~ 1500 um

0 ~ 40 um, for Chromium on Copper

Min. Radius of Curvature

Bulge 1.5 mm

Bulge 3 mm

Min. Radius of Area

Φ7 mm

Φ5 mm

Critical Thickness of Plate

0.5 mm

0.3 mm

Accuracy

Zero / One-Point Calibration

±(2%H+1) um

Two-Point Calibration

±[(1~2)%H+1] um

Basic Calibration

±(1%H+1) um

Resolution

0.1 um(0 ~ 99.9 um),1um(100 ~ 1500 um)

Measuring Period

3 times per second

Calibration Mode

Zero, One-Point, Two-Point and Basic Calibration

Measuring Mode

Single point, scan mode, differential mode, alarm mode

Display

English / Chinese selectable, FSTN LCD Display with backlight

Display Content

Coating Thickness Value, Time, Stability, Battery, Measuring Mode, etc.

Storage

500 measurements, including time, probe type, etc.

Communication

Bluetooth & Mini-USB interface, virtual serial port protocol, support online measurement with PC or Smart Phones, host software upgradable

Print

Optional portable Bluetooth thermal printers

Power Supply

3 * AAA alkaline batteries for 100 hours usage (close backlight)

Power off

Timeout power off, and low battery power off

Temperature

Usage: -10 ~ 50 °C, Store: -30 ~ 60 °C

Size

150mm * 70mm * 30mm

Material

ABS and PC alloy

Weight

180g

Features:

l High precision sample chip and dedicated temperature compensation model used for precision measurement

l Efficient filtering algorithm used for Anti-electromagnetic interference

l Probe can be re-matched with the machine after wear

l Bluetooth & Mini-USB interface for print & communication

l Support Online measurement

Main Functions:

l Single Point Measurement, Scan, Differential and Alarm Mode support

l Three calibration mode used for system error auto correction

l Thickness and time information can be stored completely

l Stability indicator for measuring status monitoring

l Battery indicator for battery quantity monitoring
