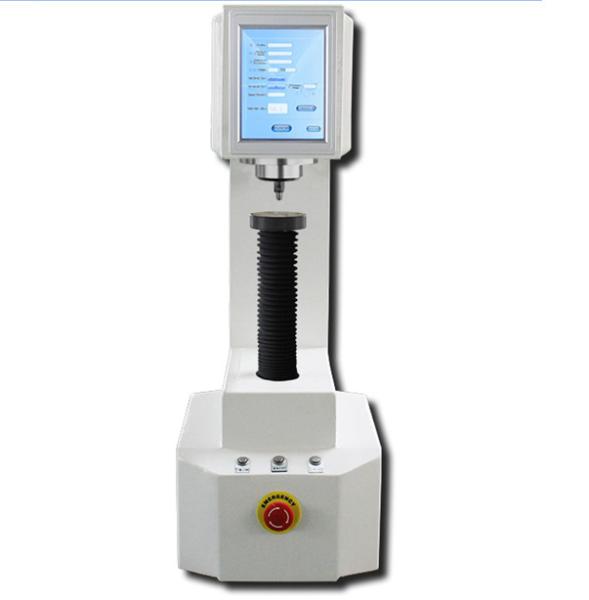

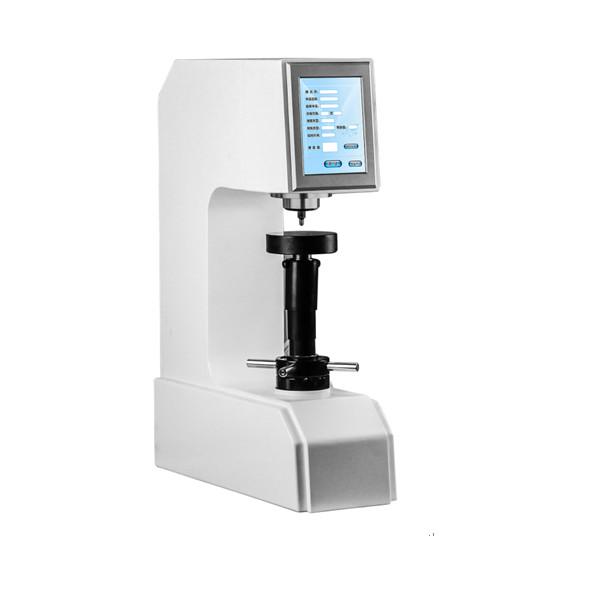

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester
HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester
HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester
HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester
Specifications
Brand Name :
HUATEC
Model Number :
HR-150DX(H)
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD3542/set - USD4004/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Exchanging scales :
Surface Rockwell, Brinell and vickers
Dwell time :
0-99s
Total load of Rockwell :
60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N)
Total load of Superficial Rockwell :
15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N)
Load value error :
Less than 0.5%
Hardness measurement accuracy :
0.1HR
Max Height of Sample :
400mm
Distance of Indenter to outer wall :
200mm
Error of test force :
＜1.0%
Description

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester


Product description:

1. Adopt electronic electric loading, high precision sensor and unique closed-loop control system.

2. Touch screen interface, easy to operate, directly select the hardness scale, force value automatically changes in the test parameters.

3. According to the standard hardness block, the high, middle and low sections of each hardness scale shall be automatically corrected.

4. Test force can be automatically corrected by standard dynamometer.

5. Automatically apply the initial test force and the main test force.

6. Powerful data processing function, including: HR, HB, HV and other hardness standard conversion, set the qualified range, automatic alarm over the limit, can input tester, sample name and other information.

7. More samples and test information, and the measurement data are saved in EXCEL format for easy editing and processing.

Technical parameters:

Model

HR-150DX(H)

Beginning test force

10kgf(98.07N)

Total test force

60kgf(588N) 100kgf(980N) 150kgf(1471N)

Rockwell hardness scale

HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV

Test range

HRA:20-88,HRB:20-100 ,HRC:20-70 ,HRD:40-77 ,HRE:70-100 ,HRF:60-100 ,HRG:30-94,HRH:80-100,HRK:40-100,HRL:100-120 HRM:85-115, HRR:114-125

Duration time

0-99s

Hardness resolution

0.1HR

Error of test force

＜1.0%

Data output

LCD display

data storage

Measurements are stored on a usb drive in EXCEL format

Conversion scale

Surface Rockwell, Brinell and vickers

standard

BSEN 6508, ISO 6508, ASTM E18, GB/T230

Maximum allowable height of specimen

400mm

Distance from head to wall

200mm

Size

560×220×980mm

Weight

90kg

Power

AC220+5%,50～60Hz

Standard accessories:

Name

Quantity

Name

Quantity

Diamond head

1PC

Diameter 1.5875mm ball indenter

1PC

Hardness block (2PCS HRC and 1PC HRB)

total 3 pieces

Large, medium and V type test stand

Each one

Fuse 2A

2pcs

Adjust the foot horizontally

4pcs

Usb flash drive, touch pen

Each one

Dust bag

1pc

Power

1pc

instructions

1pc

Product certificate and warranty card

1pc
