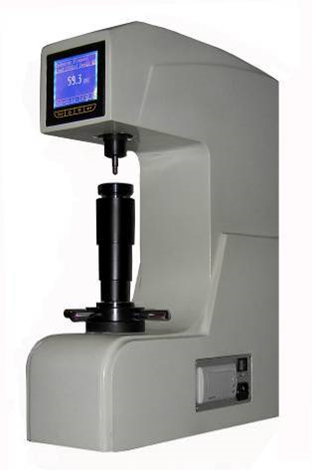

HR150P Automatic Metal and Plastic Rockwell Hardness Tester

l HR150P can be used directly to measure Rockwell hardness for metal and plastic material.

l Provided with many features such as high measuring precision, wide measuring range with 15 Rockwell scales.

l Automatic test force switch according the selected scale without manual operation.

l Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.

l Measuring results digitally displaying and can be printed, or transmitted to external computer automatically.

l The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal, and engineering plastic etc.

l Test value can be transformed to the value of HB, HV, HLD, HK and σ_b value.

l The tester meets all the following standard such as ISO 6508-2, ASTM E18, BS EN ISO6508-2, GB/T230.2.

· Preload:98.1N (10kgf)

· Total test force:588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)

· Scales:HRA,HRB,HRC,HRD,H R E,HRF, HRG,HRH,HRK,

HRL,HRM,HRP, HRR,HRS,HRV

· Load dwell duration: 2s～50s, can be set and stored

· Resolution :0.1HR

· Display:High definition backlight LCD

· Operation:Menu selectable, Membrane keypad

· Upper/lower limits setting & alarming

· Data statistics: Avg., Max., Min., S, R available

· Curved surface correcting automatically

· Memory: Max 500 items of test results stored automatically

· Data output: USB port to external PC

· Printer:Model HR1500 with a RS-232 port to the external micro printer (Optional)

· Testing space:200mm in vertical, 165mm in horizontal

· Dimensions: 550mm×200mm×720mm

· Power supply: AC, 220V/110V, 50～60Hz, 4A

· Net weight: 100kg
