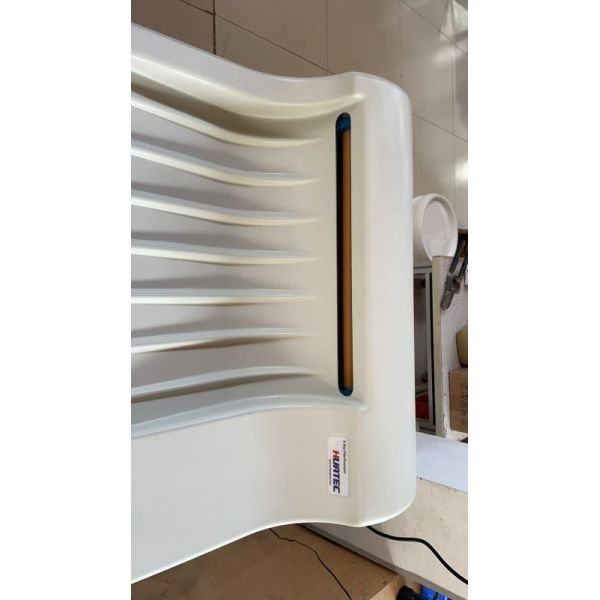

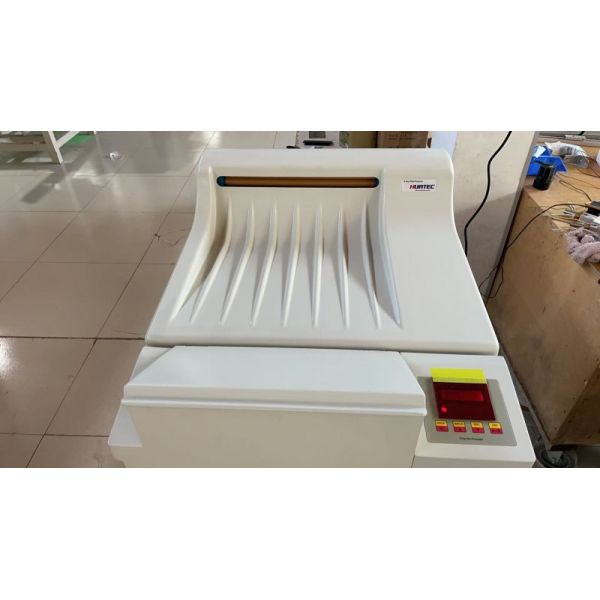

HDL-F430XD NDT Film Developer Washing Machine
HDL-F430XD NDT Film Developer Washing Machine
HDL-F430XD NDT Film Developer Washing Machine
HDL-F430XD NDT Film Developer Washing Machine
Specifications
Brand Name :
HUATEC
Model Number :
HDL-F430XD
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD24725/set - USD27950/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
15-20 working days after receipt of your payment
Packaging Details :
Carton packing box
Film specification :
minimum 60 * 100mm, the widest 450mm width and the longest film length is 60 meters
running time :
4.5 to 14 minutes
chip speed :
300~100 mm / min
development time :
60-180 seconds (recommended for 90 seconds)
washing volume :
350*430mm 180 sheets / hour; 100*360mm 720 sheets / hour.
tank volume :
development, fixing, water washing each 17 liters
Description

HDL-F430XD NDT Film Developer Washing Machine


HDL-F430XD NDT is a vertical professional industrial flapper designed based on the DT80 of ordi korant's design. It flush the width and speed of high quality, reliability, and various specifications. It is widely used in boiler, shipbuilding, space, pressure vessel, oil and gas pipeline construction, and all kinds of dynamic and pressure equipment. Quality inspection, widely praised by the customers in the testing industry


Technical parameters:

The size of film minimum 60 * 100mm, the widest 450mm width and the longest film length is 60 meters
film type various industrial X - ray film, (Film & chip film)
The running time 4.5 to 14 minutes
chip speed 300~100 mm / min
development time

60-180 seconds (recommended for 90 seconds)
washing volume

350*430mm 180 sheets / hour; 100*360mm 720 sheets / hour.
tank volume

development, fixing, water washing each 17 liters
supplementary volume

Manual Supplement and automatic test complement 0-400 ml / m2
The development temperature

an be adjusted from 20.0-40.0℃ (+ 0.3℃).
fixing temperature

can be adjusted from 20.0-40.0℃ (+ 0.3℃).
water washing tank equipped with independent circulating pump and can also ensure normal washing of machine film
The control precision of drying temperature

at 40-70℃ + 5℃
water temperature

5~30℃transmission mode helical gear transmission of AC speed reducer motor
water consumption

film is less than 2.5 liters / minutes during operation
power

220~240V12A 2.8KW 50 or 60Hz
weight

135 kilograms
volume

810 x 780 x 1120 mm (long * width * high, without delivery plate).


Characteristic

*digital display: all set parameters can be read from the operation panel, easy to operate, include wide security; operation panel, can be personalized: running time, flushing temperature and replenishment.

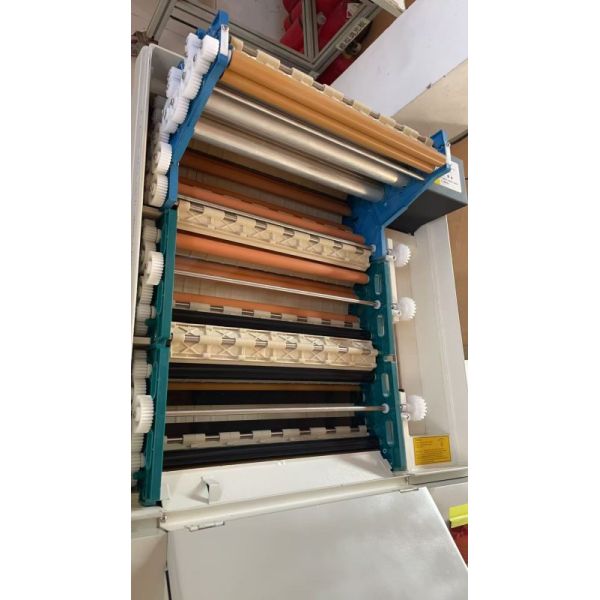

*The shaft rack system of L precision roller can protect film transmission and facilitate daily cleaning and maintenance.

*drying system adopts special roller combination and electronic control to ensure hot air drying film.

*anti crystallization and anti-oxidation program design, continuous circulation of liquid, prevent the aging of liquid, prolong the use time, and get high-quality image.

HDL-F430XD NDT Film Developer Washing Machine

HDL-F430XD NDT Film Developer Washing Machine

HDL-F430XD NDT Film Developer Washing Machine
