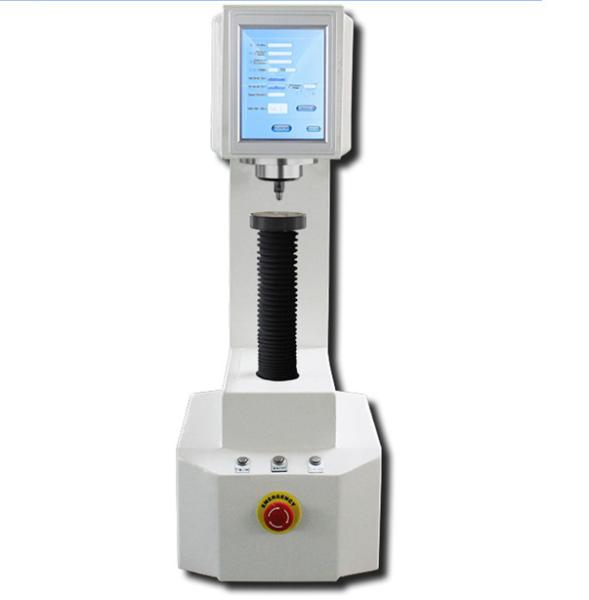

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester
HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester
HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester
HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester
Specifications
Brand Name :
HUATEC
Model Number :
HR-150DT-P
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD2530/set - USD2860/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Initial test force :
10 KGF (98.07 N)
Total load of Rockwell :
60kgf(588N) 100kgf(980N) 150kgf(1471N)
Load value error :
Less than 0.5%
Hardness measurement accuracy :
0.1HR
Max Height of Sample :
200mm
Distance of Indenter to outer wall :
200mm
Load retention time :
0-99s
Data storage :
Can store 20 test results, built-in printer RS-232 interface
Description

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

I, Product Description:

  1. Using weights electric loading, high-precision sensor.
  2. Touch screen interface, easy to operate.
  3. According to the standard hardness block, each hardness scale is divided into high, medium and low three sections for automatic correction.
  4. Built-in convex cylinder hardness correction.
  5. Powerful data processing function, including: HR, HB, HV and other hardness system conversion, set the qualified range, over limit automatic alarm, can input tester, sample name and other information.
  6. The test results can be automatically stored, processed and printed.

II, Technical parameters:

Model number

HR-150DT-P

Initial test force

10 KGF (98.07 N)

Total test force

60kgf(588N) 100kgf(980N) 150kgf(1471N)

Rockwell hardness scale

HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV

Scope of testing

HRE:70-100 HRL:100-120 HRM:85-110 HRR:114-125

Load retention time

0-99s

Hardness value resolution

0.1 HR

Test force error

< 1.0%

Data output

LCD display

Touch screen size

8 inches

Data storage

Can store 20 test results, built-in printer RS-232 interface

Compliant with standards

GB/T230.2, GB/T3398.2, JB/T7409

Maximum allowable specimen height

200mm

Distance from indenter to machine wall

200mm

Size

560×200×800mm

Weight

70kg

Power supply

AC220+5%,50 to 60Hz

III,Standard accessories:

Name

quantity

Name

Quantity

Touchscreen pen, printer paper

1 each

Large, medium, and V-shaped test stands

1 each

Ball indenter (diameter 3.175, 6.35, 12.7mm)

3 pieces

Hardness blocks (HRE,HRL,HRM,HRR)

4 blocks

Spirit level

1

Horizontal adjustment foot

4

Power cord

A root

Dust bag

1

Product certificate, warranty card

1 copy

Instructions

1 copy

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester
