SRT-7600 Small Portable Surface Profilometer Profile Tester
SRT-7600 Small Portable Surface Profilometer Profile Tester
SRT-7600 Small Portable Surface Profilometer Profile Tester
SRT-7600 Small Portable Surface Profilometer Profile Tester
Specifications
Brand Name :
HUATEC
Model Number :
SRT-7600
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
10-15 working days after receipt of your payment
Packaging Details :
Carton packing box
X Direction :
50mm
Z Direction :
±5mm
Data output :
PDF/WiFi Print
Corresponding language :
Chinese/English
Power supply/Consumption :
AC220V±10% or UPS power
Description

SRT-7600 Small Portable Surface Profilometer Profile Tester

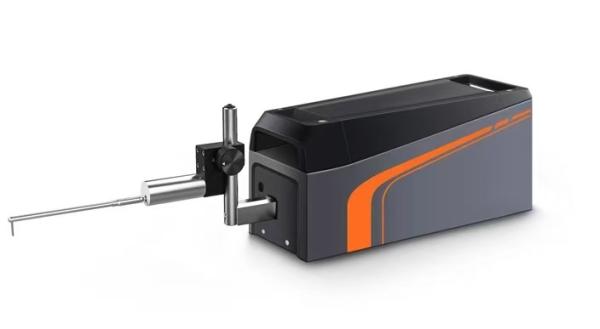

SRT-7600 small profilometer is a brand-new product launched by our company. It is used to describe the surface structure of processed parts and is suitable for detection in environments such as workshop verification stations, laboratories, and metrology rooms. It is also applicable for on-site and in-place metrology. It can evaluate geometric parameters such as convexity and inclination Angle, as well as surface shapes like roughness profile, waviness profile, original profile, support rate curve and graphics. The measurement parameters include those from China, Japan, the United States, Germany and various ISO standards. It has a user-friendly software interface and convenient operation habits. We have designed configurations on the software that can record different operation scenarios. When measuring different workpieces, there is no need for complicated Settings. Just select the configuration and measure with one click.

Technical data

Model

SRT-7600


Range

X Direction

50mm


Z Direction

±5mm


Resolution

Z Direction

0.016μm/±500μm ~ 0.16μm/±5mm


Driver

Straightness

1μm/50mm


Analysis algorithm

Corresponding standard

JIS-82,JIS-87,JIS-94,JIS-01,JIS-13,ISO-84,ISO-97,DIN-90,ASME-95,GB-14


Parameter

Roughness profile

Ra75,Rq,Rp,Rv,Rc,Rt,S,R3z,PPI,Ra,Rsk,Rku,Ry,Sm,RΔa,RΔq,Rz,Pc,Rλa,Rλq,lr,RSm,Rz94,RPc,RS,Rz.I,Rpm,HSC

Waviness profile

WCA,WCC-q,WCC-p,WCC-v,WCC-m,WCC2Sm,WCA,WC-q,WC2p,WC-v,WCM,WC2Sm,WC-t,Wa,Wq,Wsk,Wku,Wp,Wv,Wz,Wc,Wt,WSm,WΔq,WPc

Original outline

Rsk,Rku,Rmax,Sm,Δa,Δq,Rz,λa,λq,lr,TILT A,AVH,Hmax,Hmin,AREA,Rz.J,Pa,Pq,Psk,Pku,Pp,Pv,Pc.I,Pt,PSm,PΔq,PPc,Pc

Support rate curve

Rk,Rpk,Rvk,Mr1,Mr2,V0,K,A1,A2

Graphic

NCRX,AR,R,Rx,NR,CPM,SR,SAR,AW,W,Wx,Wte,NW,SW,SAW,Rke,Rpke,Rvke,Mr1,Mr2,V0,K

Geometric tolerance

Convexity, inclination, straightness, perpendicularity, parallelism, runout

Evaluation curve

Roughness profile, waviness profile, original profile, support rate curve, graph


Characteristic curve

Support rate curves (Rmr(c), Rmr2(c), Rδc(c), tp(c), tp2(c), Htp(c)), amplituder-frequency analysis curves, amplitude distribution curves


Shape removal

Global domain, first half, second half, center, 2 points, curve


Filter type

Gaussian,FFT,PC,DP,2RC


Filter stop wavelength

λs

0,2.5,8,25μm

λc

0.08,0.25,0.8,2.5,8mm

λf

0.8,2.5,8,25mm

Evaluation length

Sampling length × number of samples

The sampling length has standard mode and custom mode.


Measurement speed

0.05mm/s,0.10mm/s,0.50mm/s,1.00mm/s,2.00mm/s


Return speed

0.05mm/s,0.10mm/s,0.50mm/s,1.00mm/s,2.00mm/s


Sensor

Model

Standard universal type


Sensor method

Differential inductor


Range

±50mm


Measuring needle

5μmR Diamond at 90°, 10μmR Diamond at 90°, optional


Force measurement

7.5mN (adjustable)


Operating machine

Display section

Computer


Data output

PDF/WiFi Print


Corresponding language

Chinese/English


Size and weight

Power supply/Consumption

AC220V±10% or UPS power


Power consumption

About 50VA


Weight

Net weight: 5Kg

It contains 10Kg of packaging


Set size

Actuator 350(L)×116(W)×146(H)




Features

*High-precision large-travel guide rails, with a length of up to 50mm

*The sensor range is ±5mm

*It adopts a combination form of a main unit and a computer all-in-one machine, which is convenient to carry and suitable for on-site measurement

*The parameters are complete, including geometric tolerances, surface shapes and multiple national standards

*The lead-free measurement provides a more realistic feedback on the topography of the machined surface

*The probe can be directly replaced, and the replacement operation is convenient, which can achieve measurement in different scenarios

*The sensor can be freely switched in the same direction as the guide rail. The depth measurement groove can be measured from the side without being restricted by the depth of the measuring needle and the groove

*Support the switching between metric and imperial systems for the operation interface and result parameters

*Supports switching between Chinese and English languages

*The analysis algorithm including multiple filtering methods can be freely combined to meet the requirements

*Supports automatic multiple calibrations of standard blocks, significantly reducing calibration errors

Standard configuration:

Host actuator

1 pc

Sensor

1 pc

Desktop computer or laptop

1 pc

Standard probe

1 pc

Roughness standard test block

1 pc

Product Qualification Certificate

1 pc

Product Manual

1 pc

Warranty card

1 pc

Main unit waterproof box

1pc

Random tool

internal hexagonal wrench (2.5mm) 1pc
