NDT X-ray Ceramic Tube for NDT Equipment Flaw Detector XXG2505
NDT X-ray Ceramic Tube for NDT Equipment Flaw Detector XXG2505
NDT X-ray Ceramic Tube for NDT Equipment Flaw Detector XXG2505
NDT X-ray Ceramic Tube for NDT Equipment Flaw Detector XXG2505
Specifications
Brand Name :
HUATEC
Model Number :
XXG2505
Certification :
ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,Western Union

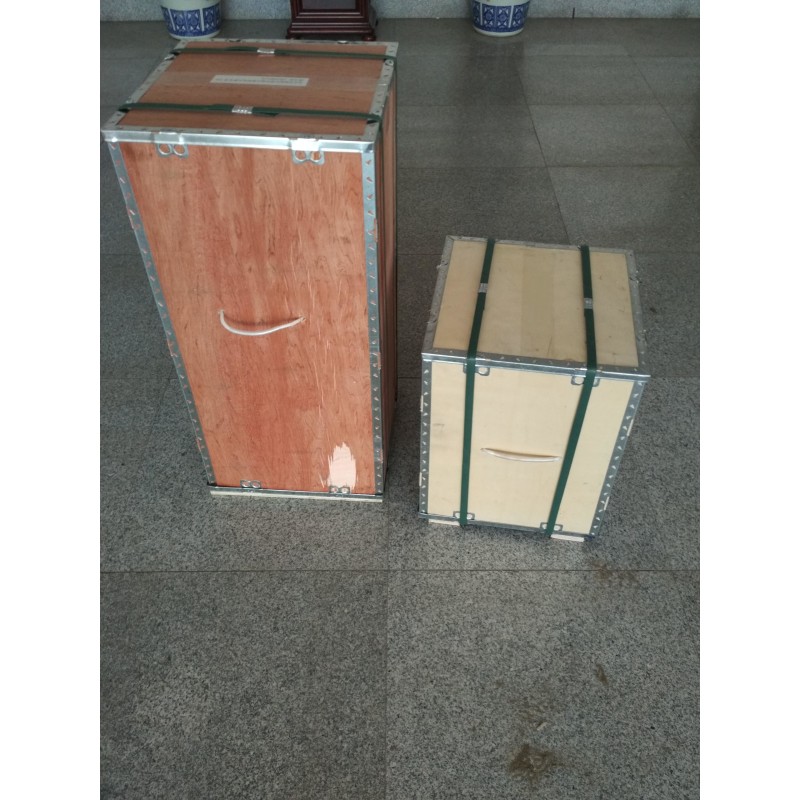

Packaging Details :
wooden case
Product name :
NDT equipment x ray machine
Function :
Measurement of Pipeline and Container Wall Thickness
Use :
weld inspection
Tube voltage (KVP) :
100-250
Description

NDT X-ray Ceramic Tube for NDT Equipment Flaw Detector XXG2505

Characteristics:

The HUATEC XXG series super small size x-ray flaw detector produced by our company, HUATEC Group Corporation, which adopt variable-frequency and constant-frequency pulse techniques. The XXG series controllers has novel structure, perfective performance and convenient to carry etc. characters. It based on microcomputer control system and modular structure, which makes integral machine obtain better stability and reliability. For the convenience of customers, the machine also offers the function of aging, which increase its service life. Our generator adopts gas insulation, forced air cooling and grounded anode, and has excellent properties of small volume and light weight. The products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.

Main purpose
1. Quality inspection and defect identification
2. Assembly verification and structural analysis
3. Foreign object detection and fault analysis
4. Thickness measurement and corrosion assessment
·Pipeline and vessel wall thickness measurement: In industries such as petrochemicals and power plants, it is used to measure the corrosion and thinning of pipelines and boiler walls after long-term use, and evaluate their remaining life and safety.
·Coating and plating thickness measurement: measure the thickness of a uniform coating layer.

Super small XXG2505 Ceramic tube orientation/directional

Main technical parameters

TYPE

ITEM

XXG2505

Max Penetration thickness Steel (A3)

40mm 5minutes

Focal Distance

600mm

Exposure Time

5min

Film Type

Agfa D7

Double lead foil Intensifying screen

0.03

Darkroom Disposal

20±2℃

Development

5minutes

Blackness

1.5

Input

Voltage (V)

220V±10% 50―60Hz

Capacity (KVA)

2.0

Output

Tube voltage (KVP)

100-250

Tube current (mA)

5

Stability

±1%

X-RAY

Tube

Focus mm2

2.0×2.0

Radiation Angle

40±5°

Sensitivity

k≤1.8%

Operation Mode

Intermittent operation, Radiating time to cooling time is 1:1

X-Ray

Controller

Dimension

270×270×140

Weight

9kg

Circuit Structure

Micro-computer control ,Modular structure,Voice prompt

X-RAY

Generator

Cooling

Force air cooling

Insulation

SF6 Gas Insulation

Working Pressure

0.35Mpa-0.45Mpa

Dimension

270×270×615

Weight (kg)

21kg

Working Temperature

-10℃―+40℃

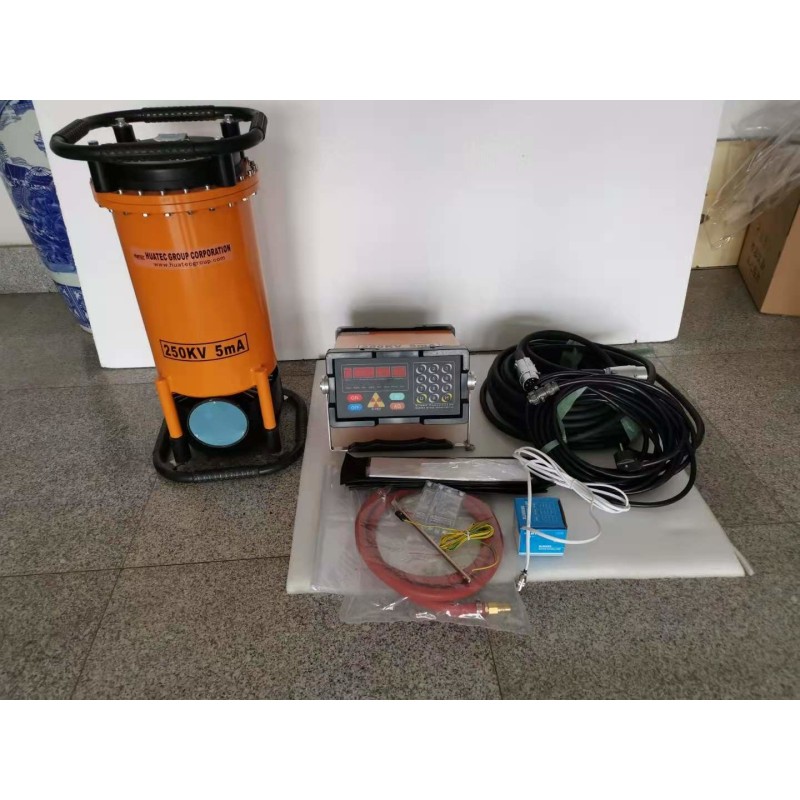

Standard Delivery

Directional ceramic X-ray tube

1 Pcs

Generator

1 Set

　

High voltage joins cable

1 Pcs

25 Meters

Controller

1 Set

　

Power cable

1 Pcs

10 Meters

Grounding cable

1 Pcs

5 Meters

Accessories

1 Set

　

(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)

Optional accessories:

Testing platform, IQI/wire penetrameter, lead letter/digits, lead tape, Cassette, lead screen, personal dosimeter, film viewer, densitometer, film developer, dark room light, RT calibration block etc.
