NDT X-ray Lead Marker Tape
NDT X-ray Lead Marker Tape
NDT X-ray Lead Marker Tape
NDT X-ray Lead Marker Tape
Specifications
Brand Name :
HUATEC
Model Number :
Lead tape
Certification :
ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,Western Union
Packaging Details :
carton
Product Name :
Industrial NDT Lead Marker Tape
Item :
NDT Lead Marker Tape
Field :
Nondestructive Testing Industry
Theory :
Welding Inspection
Business :
NDT Lead Marker Tape Manufacturer
Description

NDT X-ray Lead Marker Tape

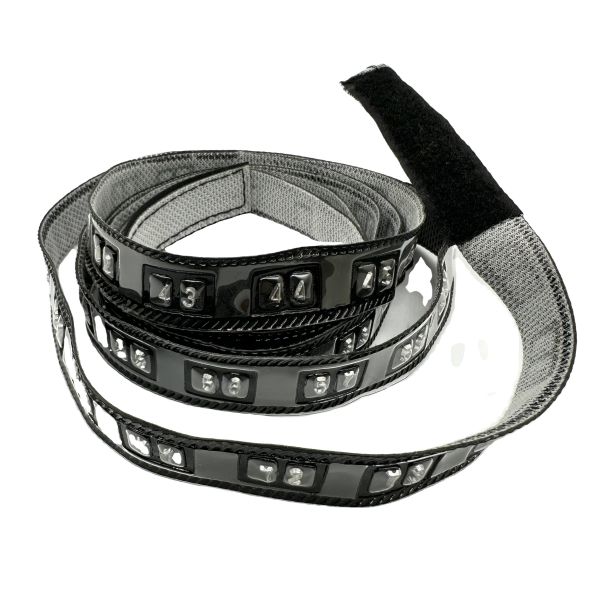

NDT X-ray lead marking tape is a specialized tape with one side coated with pressure-sensitive adhesive and the other side embedded with lead made numbers, letters, and symbols. It is mainly used in radiographic testing (RT) to permanently and clearly identify the inspected workpiece and detection information on the film or digital image.


Core role:
Identification and traceability: Clearly display unique information on each radiographic film, such as workpiece number, weld seam number, film position number, date, etc., to ensure the traceability of test results.
Image quality indicator: By displaying the IQI model and reading, it is demonstrated that the sensitivity of this radiography meets the standard requirements.
Positioning and orientation: By placing positioning markers (such as →, ↑) and center markers (such as ⊕), clearly indicate the radiographic area, radiation direction, and film position.
Backscatter protection: The lead "B" letter on the back is used to detect and warn against backscattered radiation that may affect the quality of the film.


Lead marker tape space 1", 25mm
Lead marker tape space 2", 50mm per meter
Lead marker tape space 3", 76mm
Lead marker ruler Length 500mm


We can also prove lead markers.

Lead letters/number 5*3*0.8MM 100pcs
Lead letters/number 6*3*0.8MM 100pcs
Lead letters/number 7*4*1MM 100pcs
Lead letters/number 7*4*2MM 100pcs
Lead letters/number 9*6*2MM 100pcs
Lead letters/number 8*5*1.6MM 100 pcs
Lead letters/number 13*9*1.6MM 100pcs
Lead letters/number 15*10*3MM 100pcs
Lead letters/number 20*12*2MM 100pcs
Magnetic film frame 120x100mm,160x100mm,etc
Magnetic film frame 240x100mm,400x100mm,240x60mm,480x60mm etc
Magnetic Lead letters/number 6*3*0.8MM 100pcs
Magnetic Lead letters/number 7*4*1MM 100pcs
Magnetic Lead letters/number 9*6*2MM 100pcs
Magnetic Lead letters/number 8*5*1.6MM 100 pcs
Magnetic Lead letters/number 13*9*1.6MM 100pcs
Magnetic Lead letters/number 15*10*3MM 100pcs
Magnetic Lead letters/number 20*12*2MM 100pcs
Lead marker with PVC base 7*4*1MM 100pcs
Lead marker with PVC base 8*5*1MM 100pcs
Lead marker with PVC base 9*6*1.2MM 100pcs
Lead marker with acrylic complete cover Lead letter size:17x7x3mm


Advantages
Efficient: Compared to individual loose lead letters, tape form is easier to carry, manage, and use.
Clear: Provide standard and uniform fonts to ensure clear and easy to read images.
Reliable: Professional adhesives ensure that the markings will not shift or fall off during the exposure process.
Specification: Meet the mandatory requirements of various international and domestic testing standards for marking systems.
