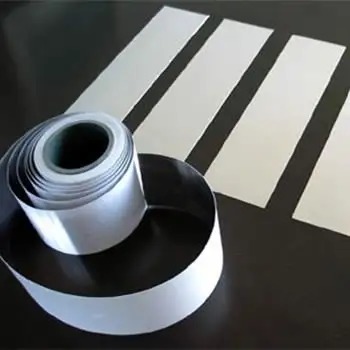

NDT Industrial X-Ray Lead Intensifying Screen
NDT Industrial X-Ray Lead Intensifying Screen
NDT Industrial X-Ray Lead Intensifying Screen
NDT Industrial X-Ray Lead Intensifying Screen
Specifications
Brand Name :
HUATEC
Model Number :
Lead Intensifying Screen
Certification :
ISO
MOQ :
1
Payment Terms :
T/T,Western Union
Delivery Time :
5-8 working days
Packaging Details :
carton
material :
lead and paper
name :
NDT Radiography Lead intensifying screen
Key words :
Radiography X-ray Lead Screen
Usage :
Accessories for X Ray flaw detector
Certificate :
CE ISO
Field :
NDT Testing X-ray Accessories
Description

NDT Industrial X-Ray Lead Intensifying Screen

Intensifying Screens are primarily used to intensify the radiographic image. They are generally used in pairs by placing the x-ray film between the bare lead surfaces of the screens. Each screen surface is protected with a semitransparent coating, which must bepeeled off prior to use. For maintaining long-lasting screens it is highly recommended that a cassette be used.

Computer Radiography (CR Imaging Board): The lead Intensifying Screen is used in conjunction with the CR imaging board, and the principle is similar to that of film. It can effectively absorb scattered light, improve the clarity of IP board reading signals, and allow for the use of lower exposure doses.

Digital Flat Panel Detector (DR-FPD): Although the detector itself is sensitive to scattered light, in many cases a front lead screen (placed in front of the detector) is still used to absorb scattered light from the object being inspected and the surrounding environment, making it an important accessory for improving DR image quality. At this point, its filtering effect is mainly utilized rather than its sensitization effect.

We can provide different sizes and also customize them.


 Specifications
Lead screen 100x120x0.03mm
Lead screen 100x200x0.03mm
Lead screen 100x240x0.03mm
Lead screen 100x480x0.03mm
Lead screen 80.5x300.5x0.1mm
Lead screen 85x305x0.1mm
Lead screen 80.5x150x0.1mm
Lead screen 100x120x0.1mm
Lead screen 100x200x0.1mm
Lead screen 100x240x0.1mm
Lead screen 180x240x0.1mm
Lead screen 100x400x0.1mm
Lead screen 100x480x0.1mm
Lead screen 240x300x0.1mm
Lead screen 350x430x0.1mm
Lead screen 100x200x0.2mm
Lead screen 100x400x0.2mm
Lead screen 100x200x0.125mm
Lead screen 100x240x0.125mm
Lead screen 100x240x0.5mm
Lead screen 180x240x0.5mm
Lead screen 240x300x0.5mm
Lead screen 100x480x0.5mm
Lead screen 350x430x0.5mm
Lead screen 100x254x0.125mm (4"x10"x0.125mm)
Lead screen 100x381x0.125mm (4"x15"x0.125mm)
Lead screen 100x400x0.125mm
Lead screen 100x480x0.125mm
Lead screen 150x400x0.125mm
Lead screen 180x430x0.125mm
Lead screen 89x430x0.127mm (3.5"x17"x0.005“)
Lead screen 115x430x0.127mm (4.5"x17"x0.005“)
Lead screen 89x430x0.254mm (3.5"x17"x0.010”)
Lead screen 115x430x0.254mm (4.5"x17"x0.010“)
Lead screen 14"x17"x0.125mm
Lead screen roll W80mm X T0.03mmX 5 meters
Lead screen roll W80mm X T0.03mmX 10 meters
Lead screen roll W80mm X T0.03mmX 15 meters
The base material
1)Paper or PVC
2)The size can be customed according to clients' requirement
3)The width is up to 430mm, the thickness is 0.03mm to 0.25mm
