UV-5070A 30000H Light Source Hanging Type UV-A UV Irradiation and White Light Lamp
Features:
Complies with MFS0744/ASTM E3022 standards.
The average lifespan of a 30000H light source.
UV-A center irradiance>1000-6000uW/cm ²
The UV-B/UV-C content is 0.
Compact in size, easy to install.
Continuous working with a surface temperature rise of less than 8K (8 ℃).
UV irradiation distribution map
No preheating required, instantly reaching 100% power.
| Item | Parameters/Methods |
| formalize | Hanging |
| UV-FLUX Room temperature 25 ℃ | Calibration center irradiance at 380mm is greater than 1000-6000uW/cm ² |
| Effective irradiation area Calibration at 380mm | 420*500mm |
| White light illumination | >1200LUX |
| Wavelength | Room temperature 25 ℃ 365nm-370nm (UVA) |
| White light content | <10LUX |
| UV-B/UV-C | No |
| FLUX error | 0-40℃ ±10% |
| Light distribution characteristics | Central lighting distribution |
| Power supply | AC100-240V 50/60Hz |
| Power | UV LED-72VA 24P*3VA |

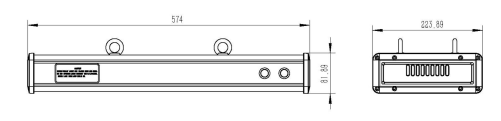

| Overall dimensions | 574mm(W)*82mm(D)*224mm(H) |
| Weight | 3.6Kg |
