Specifications
Brand Name :
HUATEC
Model Number :
HCDX-C series
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
10 Sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
carton packaging
Power supply :
AC200-240V 50 / 60Hz
Magnetizing current :
8A (8A * 400T = 3200AT)
Central magnetic field :
Max 110Gs
Demagnetization current :
8-0A
Temporary load rate :
> 30%
Description

Over Temperature Alarm Magnetization Closed Type Coil Flaw Detector with Demagnetization


I. Main parameter

1, Input current: 8A, determined according to the set values of magnetization and demagnetization, the standby current is 0.5A;

2, Power supply: AC200-240V 50 / 60Hz;

3, Magnetizing current: 8A (8A * 400T = 3200AT);

4, Central magnetic field: Max 110Gs;

5, Demagnetization current: 8-0A;

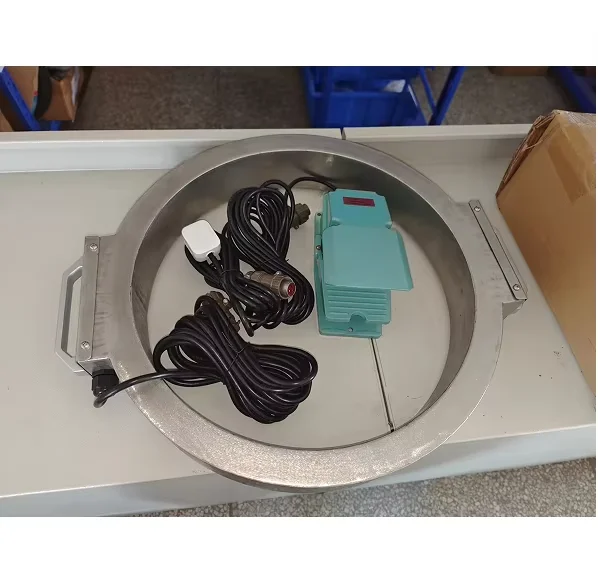

6, Coil size: Φ 300mm, 400 turns in total;

7, Temporary load rate: > 30%;

II. Model guide

Model name　

Coil diameter

AC mode, working current

FWDC mode, working current

AC&FWDC mode, working current

HCDX-C200

8inch

15A

HCDX-C250

10inch

15A

HCDX-C280

11inch

15A

HCDX-C300

12inch

15A

HCDX-C350

14inch

20A

HCDX-C400

16inch

25A

HCDX-C200DC

8inch

10A

HCDX-C250DC

10inch

10A

HCDX-C280DC

11inch

10A

HCDX-C300DC

12inch

10A

HCDX-C350DC

14inch

15A

HCDX-C400DC

16inch

15A

HCDX-C200AD

8inch


15/8A

HCDX-C250AC

10inch


15/8A

HCDX-C280AD

11inch


15/8A

HCDX-C300AD

12inch


15/7A

HCDX-C350AD

14inch


20/10A

HCDX-C400AD

16inch


25/12A

Optional function: Demagnetization, foot switch


III. Function introduction

1, Magnetization - start the electromagnetic field to magnetize the workpiece;

2, Demagnetization - demagnetization field starts to demagnetize the workpiece;

3, Over temperature alarm - the coil has a built-in 75 ℃ temperature sensor. When the set temperature is exceeded, it enters the protection state;

IV. Installation and commissioning

Installation:

1. The equipment shall be installed in a dry environment without metal dust, corrosive gas and inflammable and explosive articles;

2. The temperature of surrounding medium shall not be lower than - 10 ℃ and not higher than + 40 ℃;

3. The relative humidity of the air shall not be greater than 85%;

4. The pipe and wire connection between the installation equipment and each auxiliary facility shall be connected according to the indication sign and plug base;

5. Power supply (power supply, air source, etc., according to equipment installation environment and operation conditions), and the equipment shell is reliably grounded;
