RHL-C150 Cloud Portable Pen-type Leeb Hardness Tester
RHL-C150 Cloud Portable Pen-type Leeb Hardness Tester
RHL-C150 Cloud Portable Pen-type Leeb Hardness Tester
RHL-C150 Cloud Portable Pen-type Leeb Hardness Tester
Specifications
Brand Name :
HUATEC
Model Number :
RHL-C150
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD690/set - USD780/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
1-3 working days after receipt of your payment
Packaging Details :
Carton packing box
Indication error :
±0 . 5%(HLD =800)
Indication repeatability :
0.8%(HLD =800)
Display :
Industrial-grade 128x64 graphic dot matrix organic light-emitting diode liquid crystal
Measuring direction :
Supports 360º (vertical downward, oblique downward, horizontal, oblique upward, vertical upward)
Description

RHL-C150 "Cloud" Portable Pen-type Leeb Hardness Tester


Product Introduction

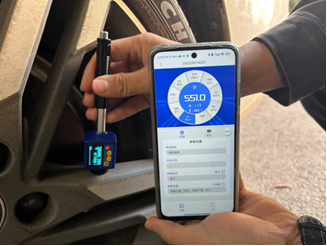

This instrument is a portable measuring device that can be connected to a mobile phone APP for use. It can quickly, non-destructively and with high accuracy measure the hardness of common metal materials. It can be used both in laboratories and on engineering sites. Through the setting of instrument measurement conditions, the needs of various measurements can be met. It is widely applied in industries such as molds, heat treatment, mechanical processing, pressure vessels, auto parts, aerospace, etc., and is also suitable for universities, research institutes, technical supervision departments, special inspection institutes, etc. It is an essential instrument for non-destructive hardness testing of materials.


Technical parameters

Measurement direction

Supports 360º (vertical downward, oblique downward, horizontal, oblique upward, vertical upward)

Detection range

(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,

(30.6-102.6)HS,(13.5-101.6)HRB,(25-105)HSD

Hardness system

Richter (HL), Brinell (HB), Rockwell B(HRB), Rockwell C(HRC), Vickers (HV), Shore (HS), Rolling rail Shore (HSD)

Indication error

±0 . 5%(HLD =800)

Indication repeatability

0.8%(HLD =800)

External dimensions

148mm×30mm×30mm

Power source

Rechargeable lithium battery

Display

Industrial-grade 128x64 graphic dot matrix organic light-emitting diode liquid crystal

Continuous working hours

About 20 hours

Working conditions

Operating temperature :10-50℃ Storage temperature: -30 ℃ to 60℃ Relative humidity ≤ 90%













Product features

1.The instrument is compact, portable, and features an integrated design without connection cables, which enhances its reliability.

2. It can be clearly displayed even under direct sunlight and is suitable for various lighting conditions, so there is no need to worry about excessive outdoor light.

3. The high-precision measurement circuit ensures the repeatability of the indicated value is ± 0.8% (HLD=800).

4. Supports multiple hardness systems: HL, HV, HRC, HRB, HB, HS.

5. Supports USB direct charging for battery life, which is fast and convenient.


Indication error and indication repeatability

SN.

Type of impact device

The hardness value of the standard Leeb hardness block

Indication error

Indication repeatability

1

D

760±30HLD 530±40HLD

±6 HLD±10HLD

6HLD 10 HLD

2

DC

760±30HLDC 530±40HLDC

±6HLDC±10 HLDC

6HLD 10 HLD

3

DL

878±30HLDL 736±40HLDL

±12HLDL

12HLDL

4

D+15

766±30HLD+15 544±40HLD+15

±12 HLD+ 15

12 HLD+ 15

5

G

590±40HLG 500±40HLG

±12 HLG

12 HLG

6

E

725±30HLE 508±40HLE

±12 HLE

12 HLE

7

C

822±30HLC 590±40HLC

±12 HLC

12 HLC















RHL-C150

RHL-C150

RHL-C150
