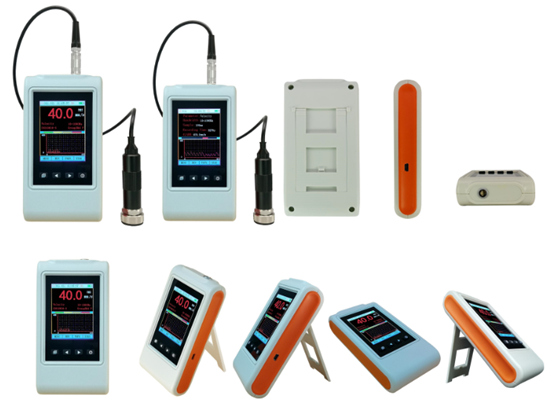

HG-6390 Portable Piezoelectric Acceleration Transducer Vibration Data Collector
HG-6390 Portable Piezoelectric Acceleration Transducer Vibration Data Collector
HG-6390 Portable Piezoelectric Acceleration Transducer Vibration Data Collector
HG-6390 Portable Piezoelectric Acceleration Transducer Vibration Data Collector
Specifications
Brand Name :
HUATEC
Model Number :
HG-6390
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD748/set - USD845/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Testing range (Metric) :
Acce: 0.1 ~ 400.0m/s2(peak) Velo: 0.1 ~ 400.0mm/s(RMS) Disp: 0.001 ~ 4.000mm(peak-peak)
Frequency :
Acceleration: 10Hz ~ 1KHz, 1K Hz ~ 10KHz Velocity: 10Hz ~ 1KHz Displacement: 10Hz ~ 500Hz
Data memory :
150 ×100 pieces of patrol data 30 ~ 480 pieces of record data
Temp :
0℃ ~ 40℃
Tolerance :
±5%
Display :
TFT:2.8”,320×240 pixels with RGB
Battery :
Rechargeable Li battery,2000mAh
Humidity :
≤80％RH
Description

HG-6390 Portable Piezoelectric Acceleration Transducer Vibration Data Collector


HG-6390 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Then by analyzing input signal, results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also records real time vibration curve.

The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), but also perform simple failure diagnosis.

Built in iso10816 fault diagnosis standard, which can automatically diagnose the fault of the tested equipment.

The technical specifications of HG-6390 comply with the requirements of GB 13823.3. HG-6390 is widely used in machinery, power, metallurgy, automobile and other industrial fields.

Configuration:

Standard configuration

NO.

Item

Quantity

1

Main unit

1

2

Power Adapters:output:5V/1000mA

1

3

Piezoelectric sensors

1

4

Magnetic seat

1

5

Manual

1

6

Package case

1

Optional configuration

3

Probe

1

4

Communication cable

1

Specifications:

Testing range

(Metric)

Acce: 0.1 ~ 400.0m/s2(peak)

Velo: 0.1 ~ 400.0mm/s(RMS)

Disp: 0.001 ~ 4.000mm(peak-peak)

Freq range

Acceleration: 10Hz ~ 1KHz, 1K Hz ~ 10KHz

Velocity: 10Hz ~ 1KHz

Displacement: 10Hz ~ 500Hz

Data memory

150 ×100 pieces of patrol data

30 ~ 480 pieces of record data

Temp

0℃ ~ 40℃

Tolerance

±5%

Humidity

≤80％RH

Display

TFT:2.8”,320×240 pixels with RGB

Data interface

USB(RS232/RS485),Bluetooth

Overall dimensions

140×76×28

Printer

Wireless Bluetooth printer(Optional)

Weight

180g

Battery

Rechargeable Li battery,2000mAh

Continuous working time

Continuous operation for about 20 hours, Standby for 80 hours
