300kv Ceramic Panoramic Portable X-Ray Flaw Detector for Pipeline weld inspection
300kv Ceramic Panoramic Portable X-Ray Flaw Detector for Pipeline weld inspection
300kv Ceramic Panoramic Portable X-Ray Flaw Detector for Pipeline weld inspection
300kv Ceramic Panoramic Portable X-Ray Flaw Detector for Pipeline weld inspection
300kv Ceramic Panoramic Portable X-Ray Flaw Detector for Pipeline weld inspection
300kv Ceramic Panoramic Portable X-Ray Flaw Detector for Pipeline weld inspection
300kv Ceramic Panoramic Portable X-Ray Flaw Detector for Pipeline weld inspection
300kv Ceramic Panoramic Portable X-Ray Flaw Detector for Pipeline weld inspection
Specifications
Brand Name :
HUATEC
Model Number :
XXG3005
Place of Origin :
China
MOQ :
1
Payment Terms :
D/P,T/T
Delivery Time :
5-8 working days
Packaging Details :
wooden box
Name :
X-Ray Flaw Detector
Use :
Pipeline weld inspection
Funcation :
Industrial weld inspection
Warranty :
12 months
Description

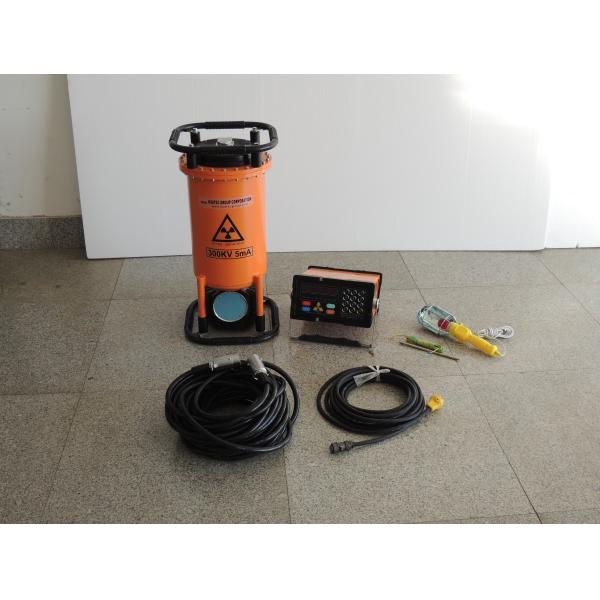

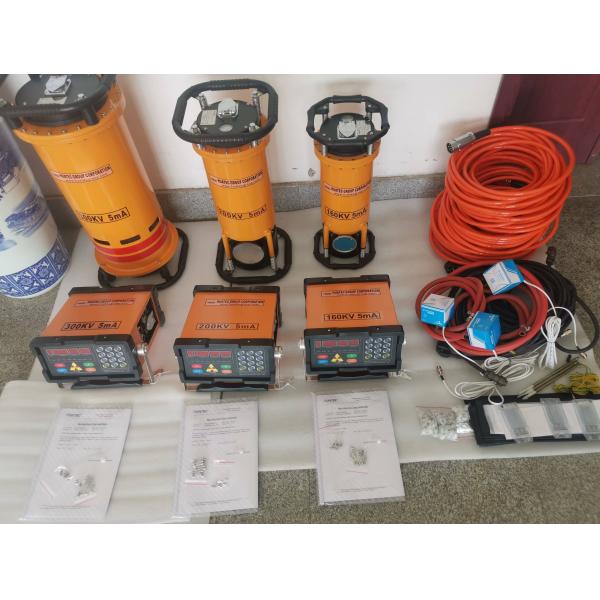

300KV Ceramic Panoramic Portable X-Ray Flaw Detector for Pipeline weld inspection

X-ray flaw detector is to use the penetrability of X-rays to detect internal structures, defects, or abnormalities without damaging the object being inspected, in order to conduct quality assessment, safety testing, or scientific research.

X-ray flaw detector main applications is Industrial weld inspection, used to detect internal defects such as porosity, slag inclusion, lack of fusion, lack of penetration, cracks, etc. in welded joints of pipelines, pressure vessels, ships, bridges, steel structures, etc. Ensure that it meets safety standards and design requirements.
·Casting inspection: Detecting defects such as shrinkage, porosity, inclusions, cracks, etc. inside metal castings (such as engine cylinder blocks, wheel hubs, valve bodies), evaluating their density and integrity.


TYPE

ITEM

XXG3005

Max Penetration thickness Steel (A3)

50mm

Focal Distance

600mm

Exposure Time

5min

Film Type

TianJin Ⅲ

Double lead foil Intensifying screen

0.03

Darkroom Disposal

20±2℃

Development

5minutes

Blackness

1.5

Input

Voltage (V)

220V±10% 50―60Hz

Capacity (KVA)

2.0

Output

Tube voltage (KVP)

150-300

Tube current (mA)

5

Stability

±1%

X-RAY

Tube

Focus mm2

1.5×1.5

Radiation Angle

40±5°

Sensitivity

k≤1.8%

Operation Mode

Intermittent operation, Radiating time to cooling time is 1:1

X-Ray

Controller

Dimension

270×270×140

Weight

9kg

Circuit Structure

Micro-computer control ,Modular structure,Voice prompt

X-RAY

Generator

Cooling

Force air cooling

Insulation

SF6 Gas Insulation

Working Pressure

0.35Mpa-0.45Mpa

Dimension

340×340×670

Weight (kg)

32kg

Working Temperature

-10℃―+40℃

X-ray flaw detectors can test Pipelines internal defects it include volumetric defects such as pores, shrinkage cavities,

and slag inclusions. ·Area type defects: cracks, lack of fusion, lack of penetration. ·Abnormal shape and size: internal

structural deformation, thickness changes, assembly errors (such as missing or misplaced parts). ·Density difference:

Identify foreign objects of different materials or densities.
