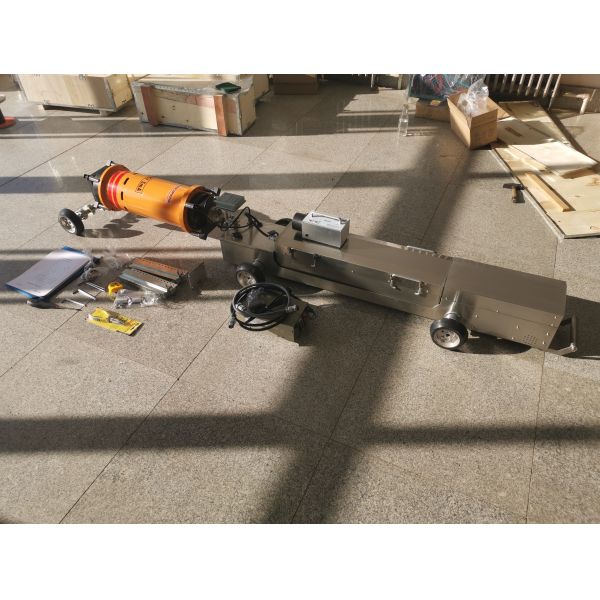

Industrial X-ray Pipeline Crawler Xray Ndt Tube Testing HXPC-100B1
Industrial X-ray Pipeline Crawler Xray Ndt Tube Testing HXPC-100B1
Industrial X-ray Pipeline Crawler Xray Ndt Tube Testing HXPC-100B1
Industrial X-ray Pipeline Crawler Xray Ndt Tube Testing HXPC-100B1
Specifications
Brand Name :
HUATEC
Model Number :
HXPC-100B1
Place of Origin :
China
MOQ :
1
Payment Terms :
D/P,T/T
Delivery Time :
5-8 working days
Packaging Details :
wooden box
Name :
X-ray Pipe Crawler
Usage :
Nondestructive testing
Application :
X-Ray Pipeline Weld Inspection
Warranty :
12 months
Main word :
NDT X-Ray Pipeline Crawler
Description

Industrial X-ray Pipeline Crawler Xray Ndt Tube Testing HXPC-100B1

The main uses include:
1. Check the welding quality of pipelines
·Check for internal defects such as porosity, cracks, lack of fusion, slag inclusion, etc. in the circumferential and longitudinal welds of the pipeline.
2. Evaluate pipeline corrosion and deformation
·Detect changes in pipeline wall thickness, corrosion pits, mechanical damage or deformation.
3. Check for foreign objects or blockages inside the pipeline
·Discovering residual welding slag, tools, or other foreign objects inside the pipeline.
4. Ensure the safe operation of pipelines
·Regularly or after pipeline construction and maintenance, conduct inspections to ensure compliance with safety standards and prevent leakage or explosion accidents.
Working Principle:
The crawler carries an X-ray machine and automatically travels inside the pipeline to perform X-ray radiography on welds or suspicious areas. External or synchronized imaging systems (such as DR digital detectors or films) record images, which are analyzed for defects by professionals.

Crawler model

HXPC-100B1X

Applicable pipe inner diameter

Φ400-1100 mm

Cleaning pipe optimum climbing slope

12°

controlling method

Magnetic positioning

output voltage

150-250 kv

Output current

3 mA

exposure time

0-3 min

positioning accuracy

±5 mm

Travel speed

12 m/min

Battery voltage / capacity

108V/7AH,108V/12AH

Non-exposure walking distance

2000m

Applicable wall thickness

≤34mm

Crawler Total length mm

2100(car body1100mmshoe550mm)

Driving mode

Single drive

focal spot size

2.0*2.0

X-ray radiation angle

360°*30°

Operating ambient temperature

-20°C to +75°C

storage temperature

0°C to +60°C

Applicable environmental humidity

≤85%

Battery box weight

21Kg,42Kg

Generator weight

13kg

Climbing weight

30kg

The turning radius of the crawler

＞7D

Generator type

HUATEC XXGH-2505 ceramic tube

X-ray Pipe Crawler for industry weld Inspection
