HBA-120 Glass Steel High Accuracy Digital Indentation Barcol Impressor Hardness Tester
HBA-120 Glass Steel High Accuracy Digital Indentation Barcol Impressor Hardness Tester
HBA-120 Glass Steel High Accuracy Digital Indentation Barcol Impressor Hardness Tester
HBA-120 Glass Steel High Accuracy Digital Indentation Barcol Impressor Hardness Tester
Specifications
Brand Name :
HUATEC
Model Number :
HBA-120
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD745/set - USD845/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Range :
0~100HBa, Amount to 25~150HBW
Resolution :
0.1HBa
Indication error :
81~88HBa ±1HBa 42~48HBa ±2Hba
Repeatability error :
81~88HBa ±1.5HBa 42~48HBa ±2.5HBa
Operating Condition :
Temperature: 0~50°C Humidity: <80%RH
Description

HBA-120 Glass Steel High Accuracy Digital Indentation Barcol Impressor Hardness Tester


Application

It is mainly used in aluminum processing industry, testing pure aluminum, soft aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings, aluminum forgings and aluminum alloy products. Also, it can be used for glass steel industry.

* A digital indentation hardness tester which is the latest design and development of our company.

* It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting.

* It is with good stability, convenient calibration, and high accuracy of detection.

* Small in size, portable. single hand operation, easy to use. It can be used in any occasion as long as the hand can reach.

* Wide test range: can test from very soft pure aluminum to a particularly hard aluminum alloy. Effective test range equivalent to the Brinell hardness of 25~150HB.

* No need to be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for the test of large and extra thick workpiece.

* With the maximum hold function, recording the maximum hardness value during measurements.

* Can be used for measuring not only Barcol Hardness, but also Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/H R E/HRF/HRH).

* With the function of calculating the average value, can calculate the average value of the 29 sets of data at most.

* Provide Bluetooth data output choice.


Model

HBA-120

Range

0~100HBa, Amount to 25~150HBW

Resolution

0.1HBa

Indication Error

81~88HBa ±1HBa

42~48HBa ±2Hba

Repeatability Error

81~88HBa ±1.5HBa

42~48HBa ±2.5HBa

Brinell Hardness testing

√

Vickers Hardness testing

√

Webster Hardness testing

√

Rockwell hardness testing

√

Maximum Hold

√

Average Calculation

√

Operating Condition

Temperature: 0~50°C

Humidity: <80%RH

Power Supply

2 x 1.5 V AAA (UM-4) Battery

Weight

390g (Not Including Batteries)

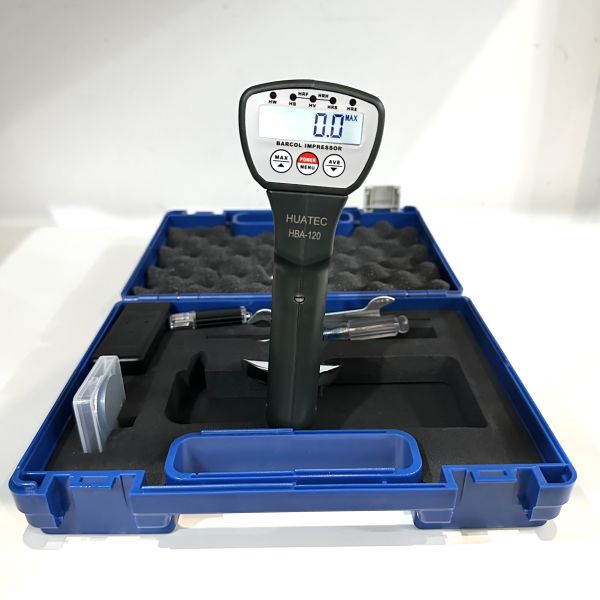

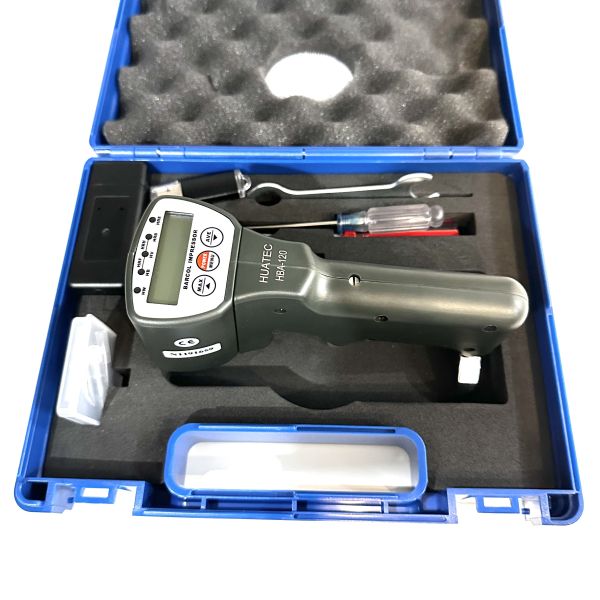

Standard Accessories:

1. Main Unit HBA-120 2. 2 Pins

3. 2 Standard Blocks 4. Pin Length Calibration Block

5. Screw Driver 6. Spanner

7. Carrying Case 8. Operation Manual

Optional Accessories:

1. Bluetooth data output with software
