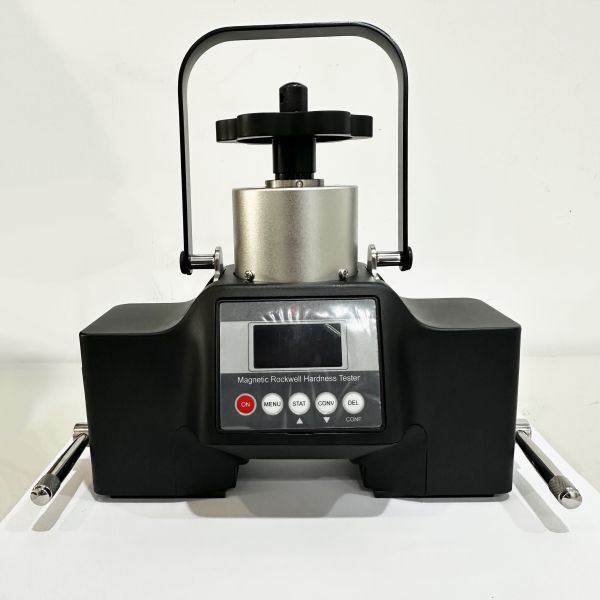

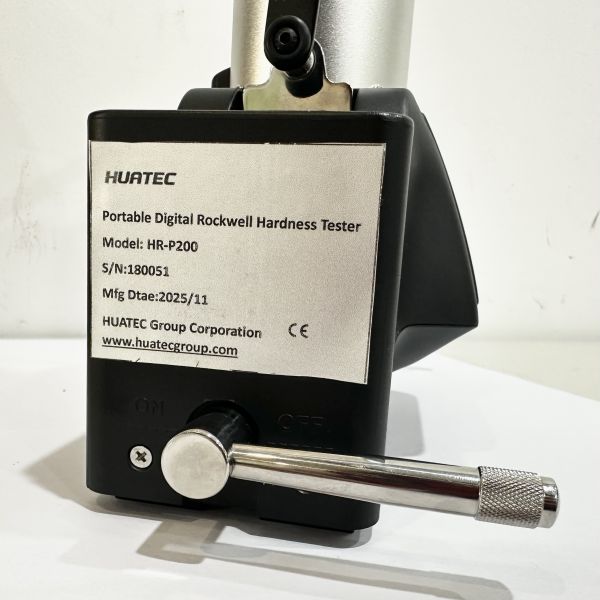

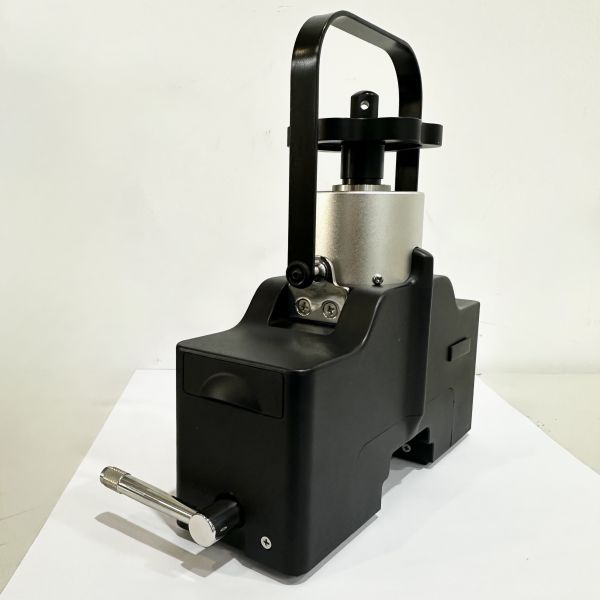

HR-P200 Advanced Load Total Test Force Magnetic Digital Rockwell Surface Hardness Tester
HR-P200 Advanced Load Total Test Force Magnetic Digital Rockwell Surface Hardness Tester
HR-P200 Advanced Load Total Test Force Magnetic Digital Rockwell Surface Hardness Tester
HR-P200 Advanced Load Total Test Force Magnetic Digital Rockwell Surface Hardness Tester
Specifications
Brand Name :
HUATEC
Model Number :
HR-P200
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD3165/set - USD3575/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Initial Test Force :
10 kgf
Total Test Force :
60 kgf, 100 kgf, 150 kgf
Testing Range :
20~88 HRA, 20~100 HRB, and 20~70 HRC Testing Resolution: 0.1 HR
Test Force Error :
≤±1%
Operating Temperature :
0~50℃
Description

HR-P200 Advanced Load Total Test Force Magnetic Digital Rockwell Surface Hardness Tester


APPLICATION

Apply to test too large or heavy iron and steel parts for the desk testers.

Test the hardness of steel parts, bearings, moulds; large and medium-sized heating parts.

Test a large batch of parts piece by piece on site.

Replace inaccurate and unreliable Leeb hardness tester, in a wide range of manufacture industry.

TECHNICAL PARAMETERS

Initial Test Force 10 kgf
Total Test Force 60 kgf, 100 kgf, 150 kgf
Testing Range

20~88 HRA, 20~100 HRB, and 20~70 HRC Testing Resolution: 0.1 HR
Indication Error

complying with ISO6508, ASTM E110 and ASTM E18 standards
Repeatability Error

complying with ISO6508, ASTM E110 and ASTM E18 standards
Test Force Error ≤±1%
Operating Temperature

0~50℃
Nominal Dimension 245 mm×105 mm×138 mm
Test Piece Surface

Flat: Area≥195 mm×60 mm Thickness≥5mm

Cylinder: Diameter≥60 mm Length≥200 mm

Thickness≥8 mm


FEATURES

World leading product designed and manufactured by HUATEC Group with patent, because of high-accuracy sensor and unique distance measuring technology, reaching far higher test accuracy than other portable hardness testers.

It is fixed onto the surface of an iron and steel part smartly with magnetic chucks. Simply reached one side of the part, the test could be accomplished. Only if the surface is available, an iron and steel part could be tested, no matter what shapes and sizes are.

It follows the Rockwell Hardness Test Principle, and complies with relevant regulation of ISO6508, and ASTM E18 standards.

It simplifies the operation steps of Rockwell Hardness Test: directly load total test force; maintain it for a few seconds; release the total test force and then the test is finished. It takes about only 10 seconds for a test, high effective.

It permits customer to calibrate the tester with a standard block at any time.

It could be operated under a temperature range of 0℃ to 50℃ either indoor or outdoor.

STANDARD ASSEMBLY

Hardness Tester HR-P200

120°Diamond Indenter

1/16” Carbide Alloy Ball Indenter

Rockwell Hardness Block

Seat Iron

Recharger

Battery Box

Carrying Case

Instruction Manual

Certificate
