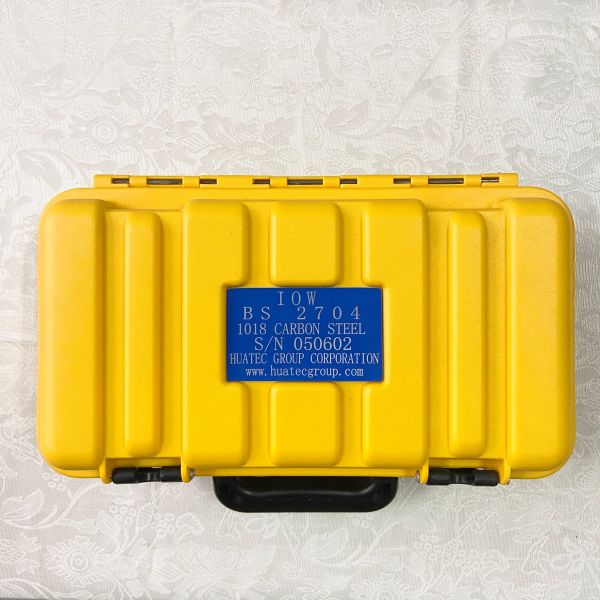

NDT Instrument IOW Calibration Block
NDT Instrument IOW Calibration Block
NDT Instrument IOW Calibration Block
NDT Instrument IOW Calibration Block
Specifications
Brand Name :
HUATEC
Model Number :
IOW
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pcs per month
Delivery Time :
3~7 days after payment
Packaging Details :
in carton
Product name :
Calibration Block
Model :
IOW
Material :
carbon steel
Standard :
API RP2X
Description

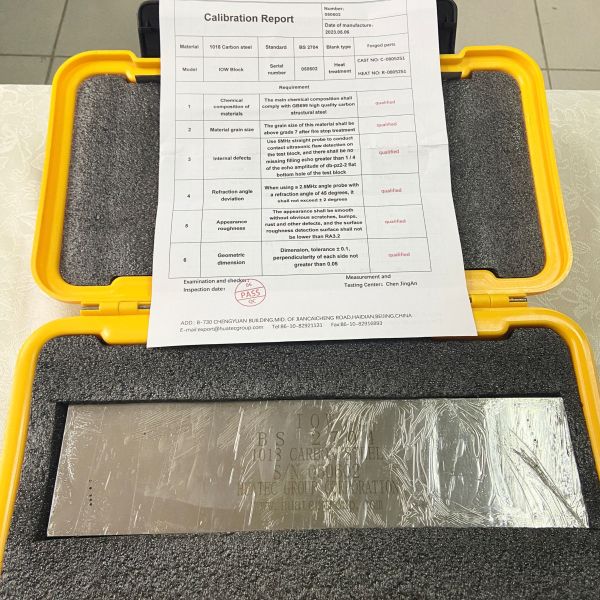

NDT Instrument IOW Calibration Block

IOW Calibration Block Special Alloy Used for beam profile measurement of angle beam transducers and measurement of transducer angles. Block used for calibrates resolution check for angle beam transducer, also used for angle beam plotting, to plot beam divergence for shear wave transducer. Analysis of amplitude with respect to exit point is carried out for each angle using data points from depths corresponding to side drilled holes in an IOW block. Graphed and tabulated results are analyzed for trends. This modeling analysis is then compared to actual lab results for refracted angle determination.

Geometry: Contains nine 1.5mm diameter x 22mm deep side drilled holes.

Dimensions: 305mm (L) x 75mm(H) x 50mm (W).

Material: carbon steel

NDT Instrument IOW Calibration Block

NDT Instrument IOW Calibration Block
