High Precision Coating and Substrate Thickness at the Same Time Ultrasonic Thickness Gauge


TG-3250H is a high precision digital ultrasonic thickness gauge. Based on the same operating principles as SONAR it is capable of measuring the thickness of various materials with accuracy as high as 0.001 millimeters, or 0.0001inches. It is adapted to measure the thickness of good conductor for ultrasonic, such as metal (steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on.

It can test coating thickness and basic material thickness at the same time.

Main Functions:

l Support Pulse-Echo, Echo-Echo, Interface-Echo, E-C coating thickness testing, C-E coating and basic material testing and AUTO 6 kinds measurement mode, gain adjustable

l Scan mode, min/max capture mode, differential mode & alarm mode support

l Sound velocity calibration by known thickness

l Storage capacity of 1000 measurements with thickness, velocity, time, etc.

l Communicate with PC or smart phones, support online measurement & command control (OC version)

Features:

l High precision timing chip & V-Path model used for precision measurement

l Real-time Temperature Compensation Technic supporting One-time probe calibration for long term usage.

l Thru-paint measurement (Standard Version), simultaneously measure coatings and material thicknesses (Advanced Version)

l Bluetooth & Mini-USB interface for printing & communication, host software upgradable

Technical Parameters

Measure Range

0.75~400 mm (Steel)

Sound Velocity Range

1 ~ 19999 m/s

Resolution

0.001mm / 0.0001inches

Accuracy

0.03mm or 0.3%*H

Measuring Period

4 times per second

Probe Frequency

2MHz,3MHz,5MHz,7.5MHz

Calibration Mode

Probe Calibration & Two Point Calibration

Calibration block

4.000mm(Steel)

Measurement Mode

P-E, I-E, E-E, E-C, C-E

Gain Adjustable

16 Stages

Measuring Mode

Single point, scan, min/max capture, differential, alarm

Data Storage

1000 measurements, including thickness, sound velocity, time, etc.

Display

English / Chinese selectable,
FSTN LCD Display with backlight

Display Content

Thickness, Sound velocity, Stability, Battery, Measuring Mode, etc.

Communication

Bluetooth & Mini-USB interface, virtual serial port protocol

Print

Optional portable Bluetooth thermal printers

Power Supply

3.7V Li-Ion chargeable battery

Power off

Timeout power off, low battery power off

Usage Temperature

-10 ~ 50 °C

Storage Temperature

-30 ~ 60 °C

Size

157mm*78mm*37mm

Weight

About 260g

Shell Material

ABS & PC alloy

Box Material

ABS (IK08 / IP67)

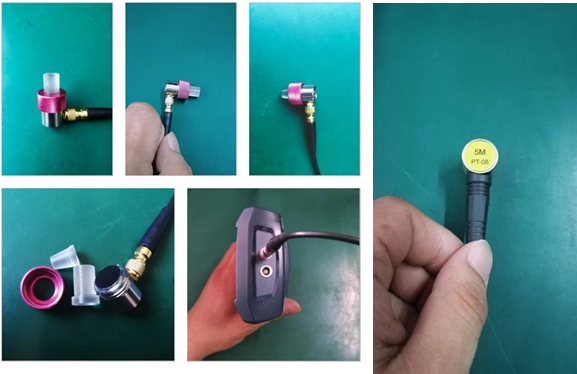

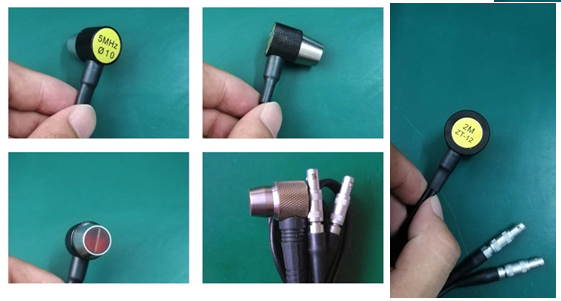

Probe Parameters

Label

5M Φ10

5M PT-08

2M ZT-12

7.5M PT-06

3M GT-12

Measure Range (Steel)

0.8~300 mm

0.8~300 mm

3.0~400 mm

0.75~50 mm

2.0~200 mm

Min. Measure Diameter

Ø25 x 3 mm

Ø20 x 1.2 mm

Ø30 x 4 mm

Ø15 x 1.2 mm

Ø25 x 3 mm

Probe Diameter

13mm

11mm

17mm

9mm

15mm

Effective area Diameter

10mm

8mm

12mm

6mm

12mm

Probe Frequency

5MHz

5MHz

2MHz

7.5MHz

3MHz

Contact Temperature

-10~60°C

-10~60°C

-10~60°C

-10~60°C

-10~310°C

Version Comparison

Version

Measurement Mode

Thru-paint measurement

Measure Coatings

Basic

P-E

x

x

Standard

P-E, I-E, E-E

√

x

Advanced

P-E, I-E, E-E, E-C, C-E

√

√
